Loaders
GG2500T
31 700 euro netto
Attention! Business customers with a VAT ID number pay net prices only, according to EU regulations.
Including: GG 2500 T Wheel Loader + Bucket + Quick Coupler + Transport to Home
Check out the offer
Specification
Machine Weight:
5500 kg
Engine
Kunming Yunney Power Euro 5
Engine Power:
75 HP
Lifting Height:
4500 mm
Rated Load:
2500 kg
Rated Speed:
2400 rpm
Hydraulic Pressure:
16 MPa
Hydraulic Oil Flow:
90 l/min
Standard Tire:
16/70-20
Work Range
Bucket Capacity (cbm):
1.0
Max Lifting Weight with Closed Boom:
2500 kg
Max Lifting Weight with Extended Boom:
800-1000 kg
Max Speed:
20 km/h
Wheelbase:
1550 mm
Track:
2550 mm
Discharge Clearance:
2850 mm
Bucket Capacity During Max Lifting
800 - 1000 kg
Main Dimensions
Length:
6270 mm
Width:
2100 mm
Height:
2670 mm
Diagram
| A1 | Total length with bucket | 5920 mm |
| B1 | Length from front axis to rear edge of chassis | 4973 mm |
| C1 | Distance from front axis to tip of bucket in lowered position | 1139 mm |
| D1 | Wheelbase | 2551 mm |
| E1 | Rear overhang (from rear axis to end of chassis) | 1282 mm |
| F1 | Total machine height | 2615 mm |
| J1 | Height to upper edge of the rear frame / engine hood | 5499 mm |
| K1 | Maximum working height with raised equipment | 4813 mm |
| L1 | Height of load axis at maximum lift (pivot point of equipment) | 4541 mm |
| M1 | Maximum telescopic reach (horizontal reach) | 4006 mm |
| N1 | Total width (outer edges of tires) | 854 mm |
| P1 | Total width (outer edges of tires) | 2054 mm |
| Q1 | Track width (measured from inner edges of tires) | 1650 mm |
| S1 | Minimum ground clearance | 370 mm |
| T1 | Steering angle of wheels | 4523 mm |
| U1 | Outer turning radius | 4043 mm |
| V1 | Turning length | 1892 mm |
| W1 | Steering angle | 45° |
| X1 | Arm tilt angle upward (at maximum lift) | 45° |
| Y1 | Bucket discharge angle at maximum lift | 39° |
| Z1 | Bucket approach angle (on the ground) | 35° |
Additional equipment (for reference)
4-in-1 bucket
1290 euro netto
Bale Clamp
1290 euro netto
Crocodile Grab
1290 euro netto

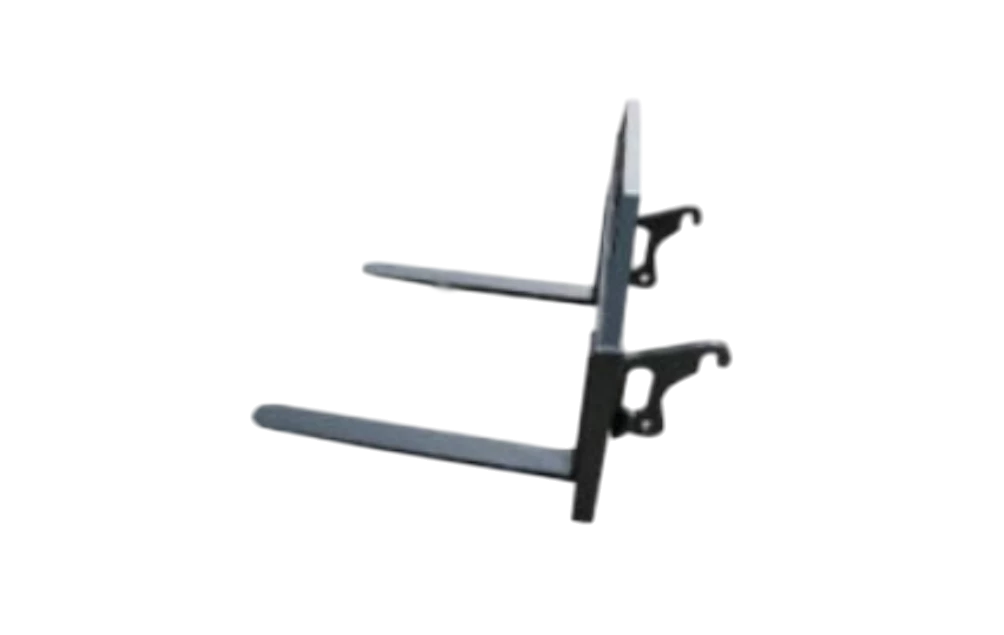

Forks for Pallets
890 euro netto
Grab Bucket
1290 euro netto
Lawn Mower
1490 euro netto
Snow Plow
1390 euro netto
Timber Grab
1490 euro netto
Sweeper
2460 euro netto
Telescopic Loader GG2500TEL
Telescopic Loader
The Gunter Grossmann GG2500TEL is a versatile telescopic loader with a 75 HP Euro 5 engine, designed for demanding tasks and meeting strict emissions standards.
Powerful Engine and Efficient Hydraulics
Its 75 HP engine and hydraulic system (16 MPa, 90 l/min) ensure fast, precise, and energy-efficient task execution, with smooth boom movement and excellent load control.
Load Capacity and Durability
With a weight of 5500 kg and a load capacity of 2500 kg, the GG2500TEL offers stability and a maximum lifting height of 4.5 meters.
Versatility in Work Range
Equipped with a 1.0 m³ bucket and telescopic boom, it handles loads from 800 kg to 2500 kg, offering broad operational flexibility.
Mobility and Compact Dimensions
With a top speed of 20 km/h and compact dimensions (6270 mm x 2100 mm x 2670 mm), it ensures stability and maneuverability in tight spaces.
