Loaders
GG010G
26 600 euro netto
Attention! Business customers with a VAT ID number pay net prices only, according to EU regulations.
Including: Crawler Loader GG010G + Bucket + Transport
Check out the offer
Specification
Engine Brand:
Yanmar
Engine Model:
4TNV98C-PLYS
Maximum Power (HP):
67.86
Maximum Power (kW):
49.9
Maximum RPM:
2400 rpm
Displacement:
3.319 L
Number of Cylinders:
4
Cooling Method:
Water-cooled
Engine Oil Capacity (during change):
7 L
Fuel Type:
Diesel
Theoretical Fuel Consumption:
7.52 - 8.78 L/h
Machine Operating Weight:
4150 kg
Bucket Capacity:
0.4 m³
Nominal Load Capacity (Safe Load):
1050 kg
Maximum Load Capacity:
2100 kg
Drive Pump Model:
HP21VG45 Closed Pump
Drive Pump Brand:
Hengli
Maximum Flow of Drive Pump:
108 + 108 L/min
Work Pump Model:
TFA10VO45/53R Piston Pump
Main Pump Brand:
Taifeng
Maximum Flow of Main Pump:
108 L/min
Multiway Valve:
Load-sensitive multiway valve
Nominal Pressure:
21 MPa
Hydraulic Motor Type:
LX21VP45
Travel Motor:
Lezhuo
Engine Capacity (Travel Motor):
45
Working Range
Travel Speed:
Low: 0-5 km/h, High: 0-10 km/h
Climbing Ability:
30%
Fuel Tank Capacity:
45 L
Hydraulic Tank Capacity:
56 L
Maximum Dumping Height:
Maximum Dumping Height:
2250 mm
Maximum Loading Height:
3600 mm
Farthest Dumping Reach:
1360 mm
Minimum Ground Clearance:
231 mm
Transport Length with Bucket:
3820 mm
Transport Length without Bucket:
3040 mm
Transport Width:
1800 mm
Transport Height:
2460 mm
Bucket Width:
1800 mm
Crawler Length:
320 mm
Crawler Width:
84 mm
Number of Crawler Sections:
52
Additional equipment (for reference)
Bale grab
1220 euro netto
Earth auger
1420 euro netto
Grass grab
1220 euro netto
Crocodile grab
1220 euro netto
Pallet forks
820 euro netto
4-in-1 bucket
1220 euro netto
Mower
1370 euro netto
Snow plow
1120 euro netto
Quick coupler
570 euro netto

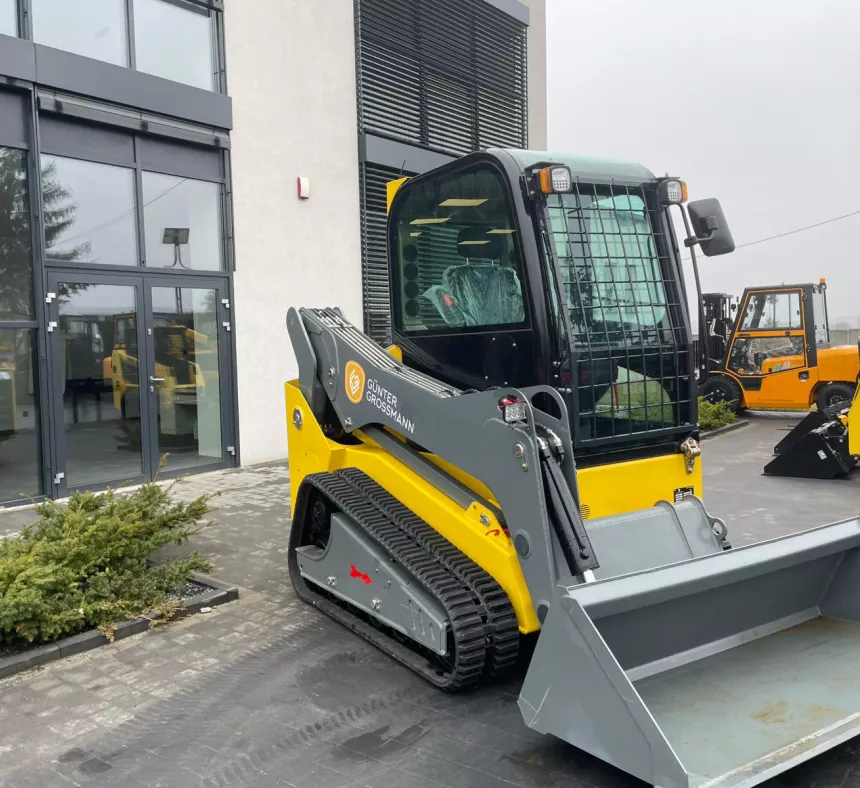

Compact Loader GG010G
Skid Steer Loader
The GG010G by Gunter Grossmann is an advanced skid steer loader offering reliability, power, and efficiency in demanding work environments. Equipped with a robust Yanmar engine and a sophisticated hydraulic system, the GG010G excels in construction, agriculture, and industrial applications, providing excellent maneuverability, load capacity, and overall performance.
Engine and Drive
Powered by the Yanmar 4TNV98C-PLYS diesel engine delivering 67.86 HP (49.9 kW) at 2400 rpm, this four-cylinder, water-cooled engine features a 3.319 L displacement. It ensures strong performance and fuel efficiency, with an oil change capacity of 7 liters and fuel consumption ranging from 7.52 to 8.78 L/h.
Hydraulic System and Working Parameters
The loader utilizes a Taifeng main hydraulic pump with a flow rate of 108 L/min for efficient loading and transport. A closed Hengli HP21VG45 drive pump delivers smooth movement and driving power. Load-sensitive multiway valve maintains a nominal pressure of 22.5 MPa for precise control. The LX21VP45 hydraulic motor and 45 cm³ Lezhuo travel motor ensure reliability and performance on challenging terrains.
Operating Weight and Load Capacity
Weighing 4150 kg, the GG010G is designed for heavy-duty tasks. It offers a nominal working load of 1050 kg and a maximum load capacity of 2100 kg, supported by a 0.4 m³ bucket capacity for efficient material handling.
Performance and Speed
Featuring two travel speeds — low (0-5 km/h) and high (0-10 km/h) — the GG010G adapts to various terrains and workloads. Its 30% gradeability enables it to tackle steep and rough surfaces, ensuring consistent and reliable operation across different environments.
