Loaders
GG635
Attention! Business customers with a VAT ID number pay net prices only, according to EU regulations.
Including:
Check out the offer
Technical Data
Specification
Maximum Lifting Capacity
3500 kg
Bucket Capacity
0.9 m³
Fork Tine Length
1200 mm
Operating Weight
7300 kg
Engine
Manufacturer
Yuchai
Model
YCF36100-S500
Type
In-line, liquid-cooled, turbocharged, four-stroke
Rated Power / Speed
74 kW / 2200 rpm
Displacement
3.6 L
Axles
Make/Model
XCMG WA1102/WA2102
Static Axle Load
18 T
Brake
Wet brake
Maximum Output Torque (N·m)
26000
Transmission
Make/Model
XCMG TM043II
Rated Input Power
97 kW
Maximum Input Torque
800 N·m
Maximum Input Speed
3500 rpm
Drive System
Drive System
Hydrostatic, via propshaft
Speed
0–11 / 35 km/h
Working Hydraulics
Working Pump
Load-sensing loader piston pump
Flow Rate
175 L
Pressure
280 Bar
Tanks
Fuel Tank
120 L
Hydraulic Oil Tank
180 L
Tyres
Tyre Dimensions
405/70-20 (16/70-20) IND 16PR 149B
Telescopic Loader

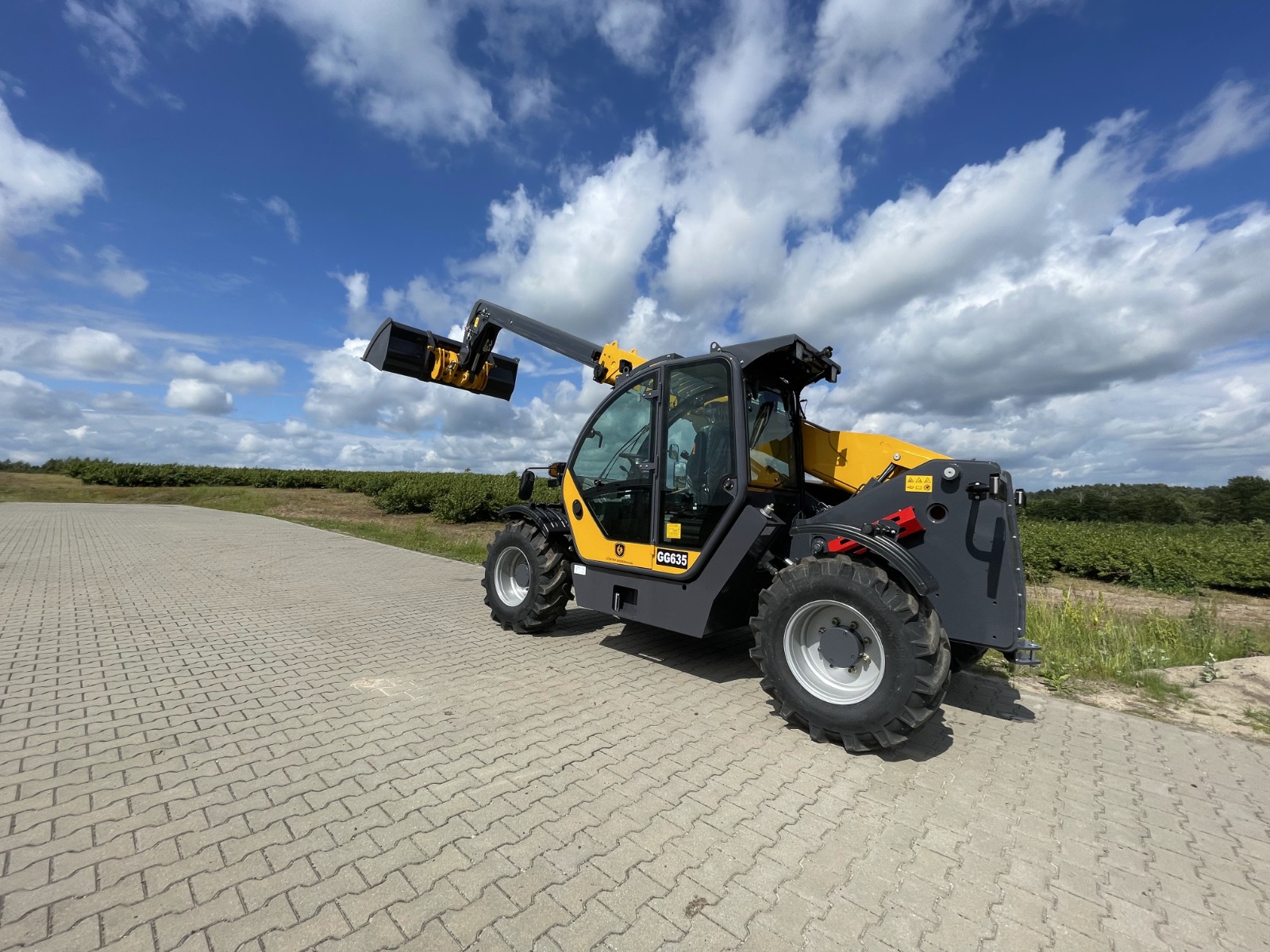

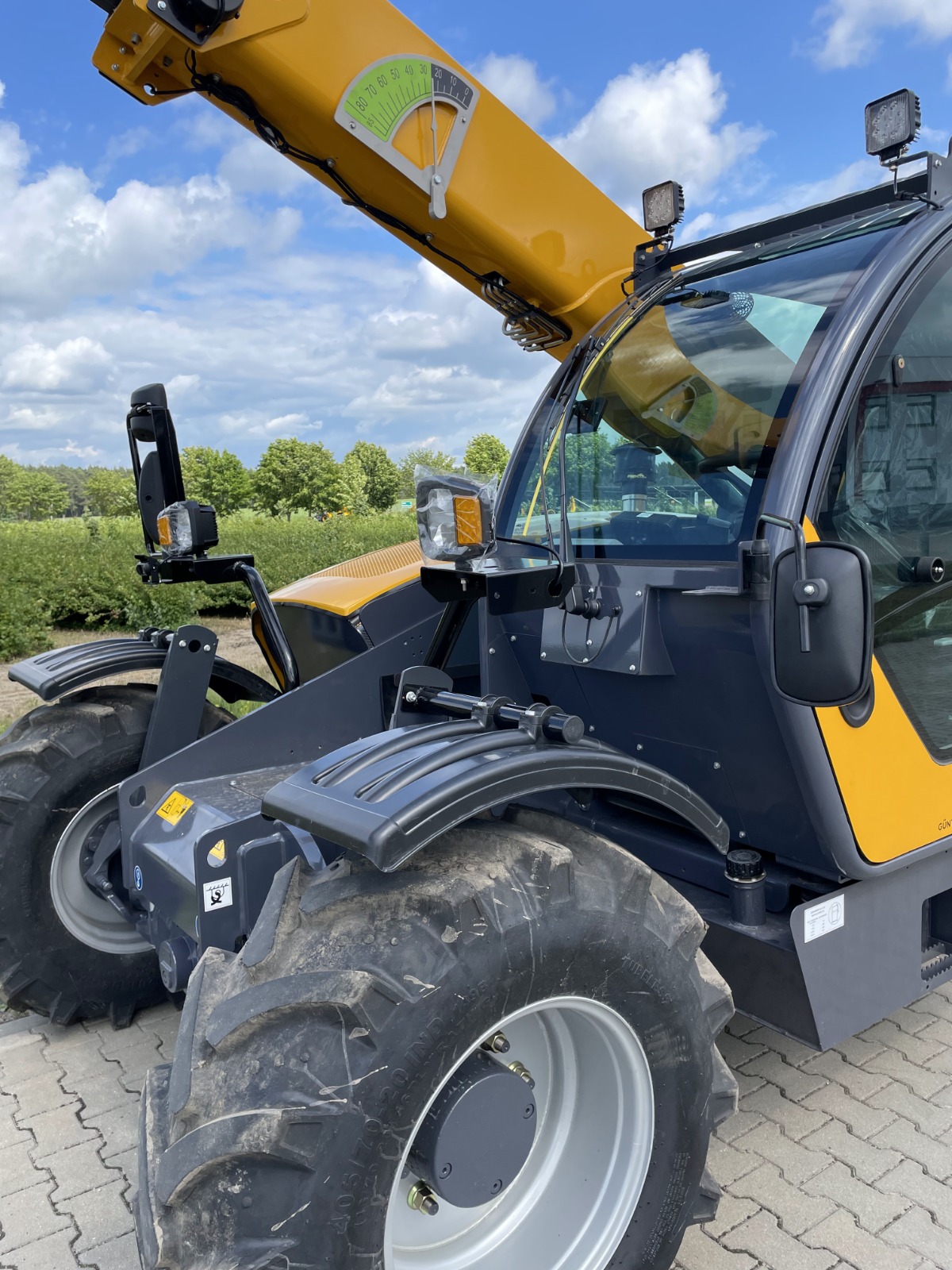

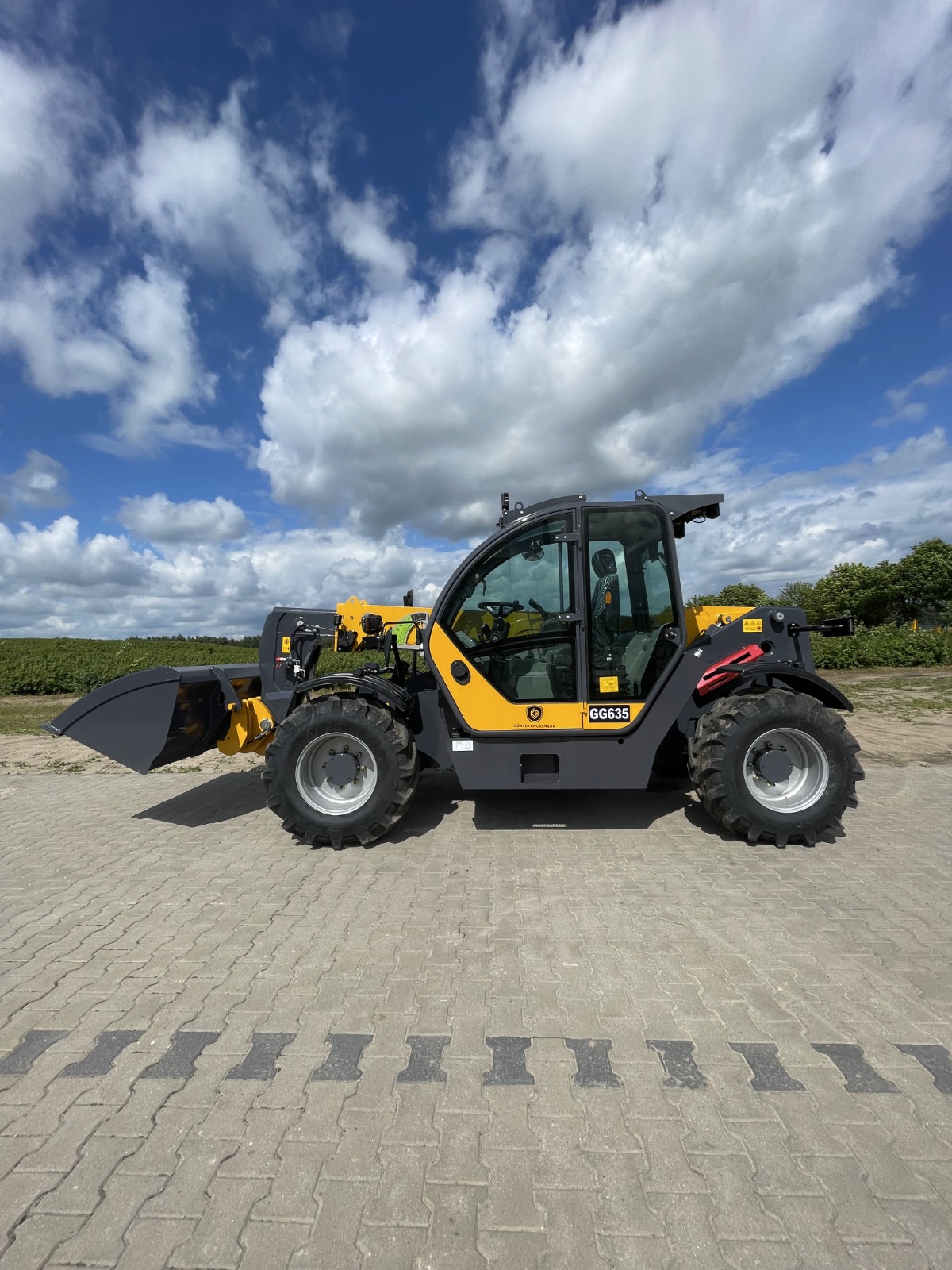

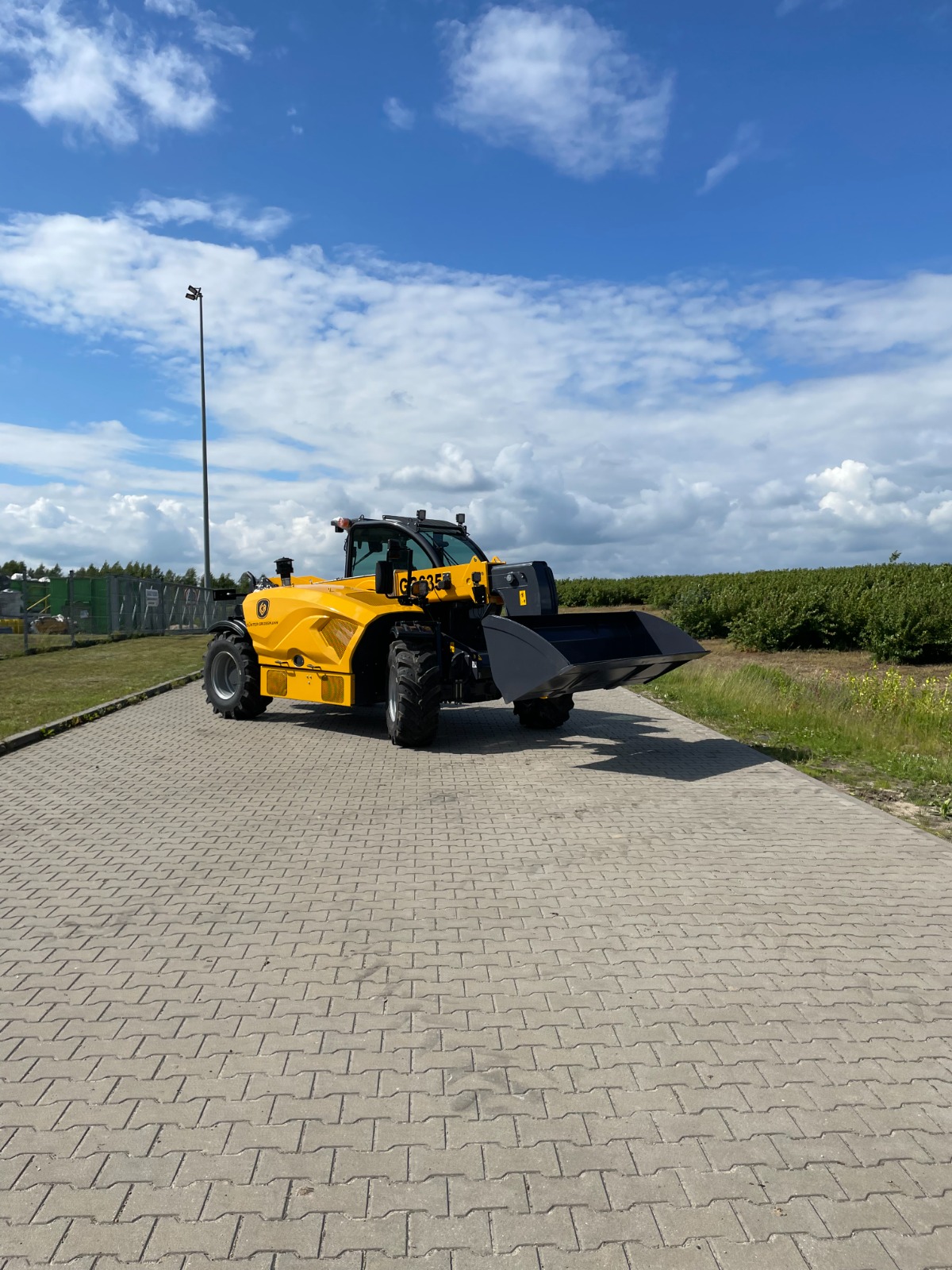

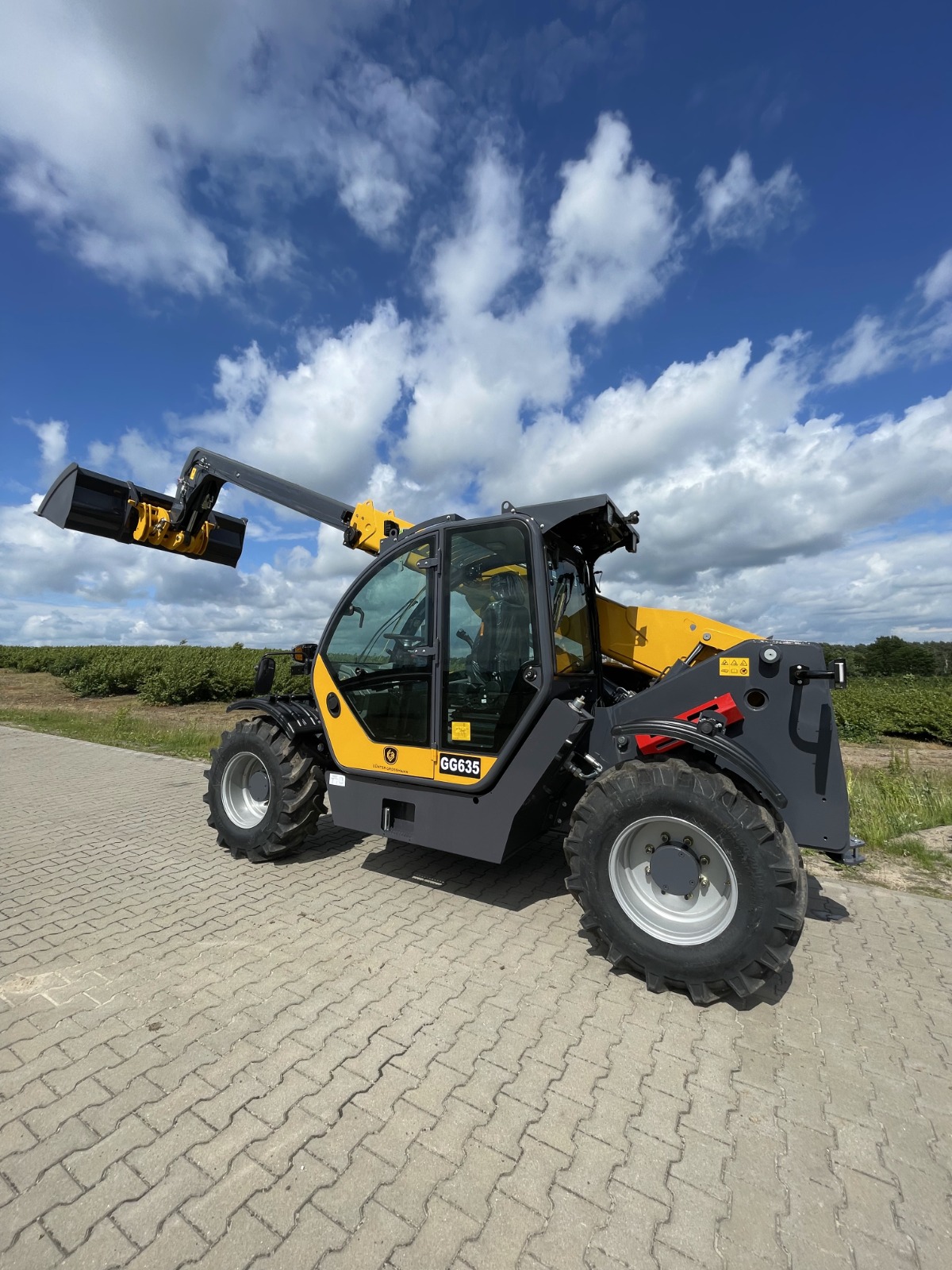

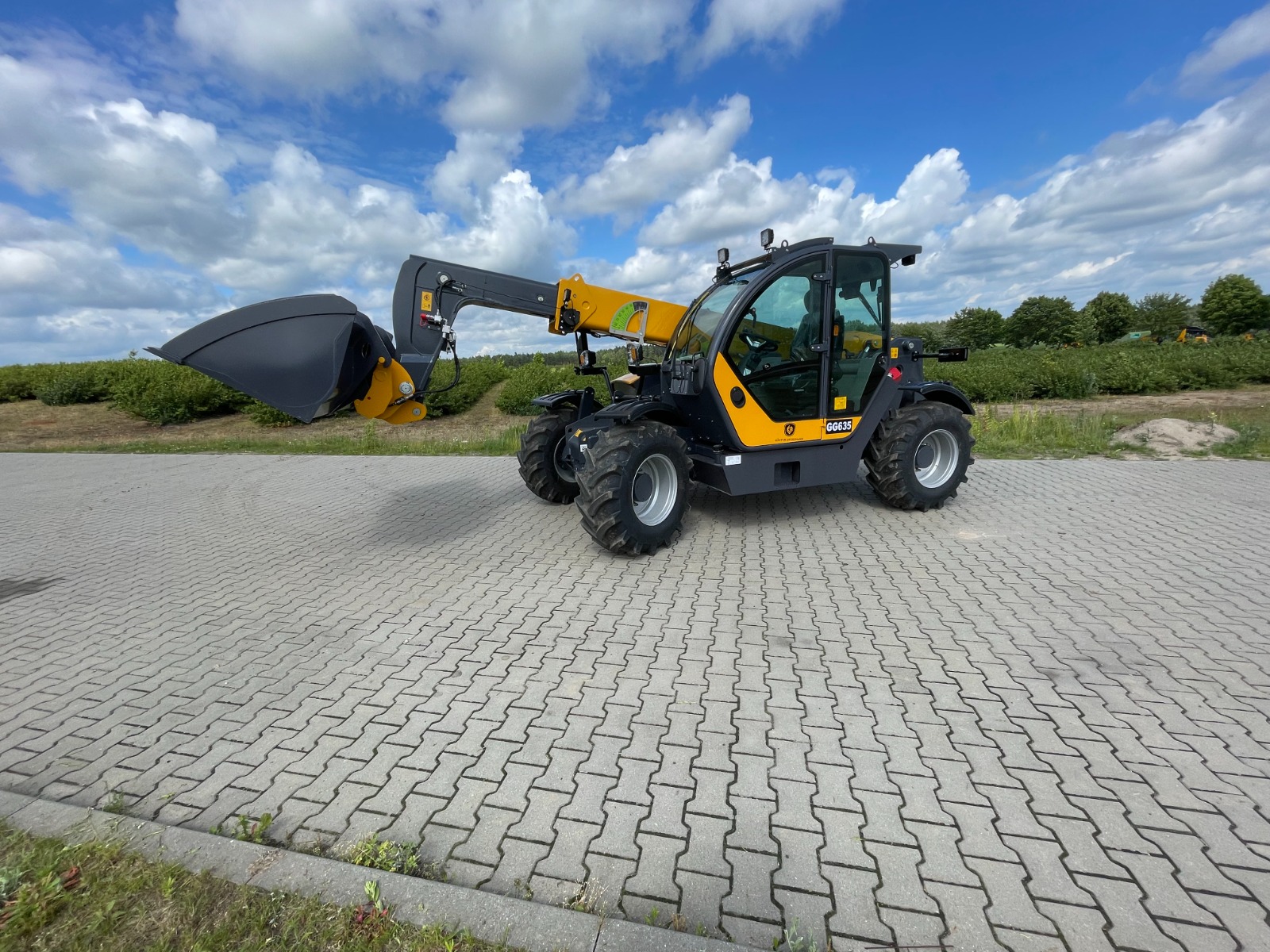

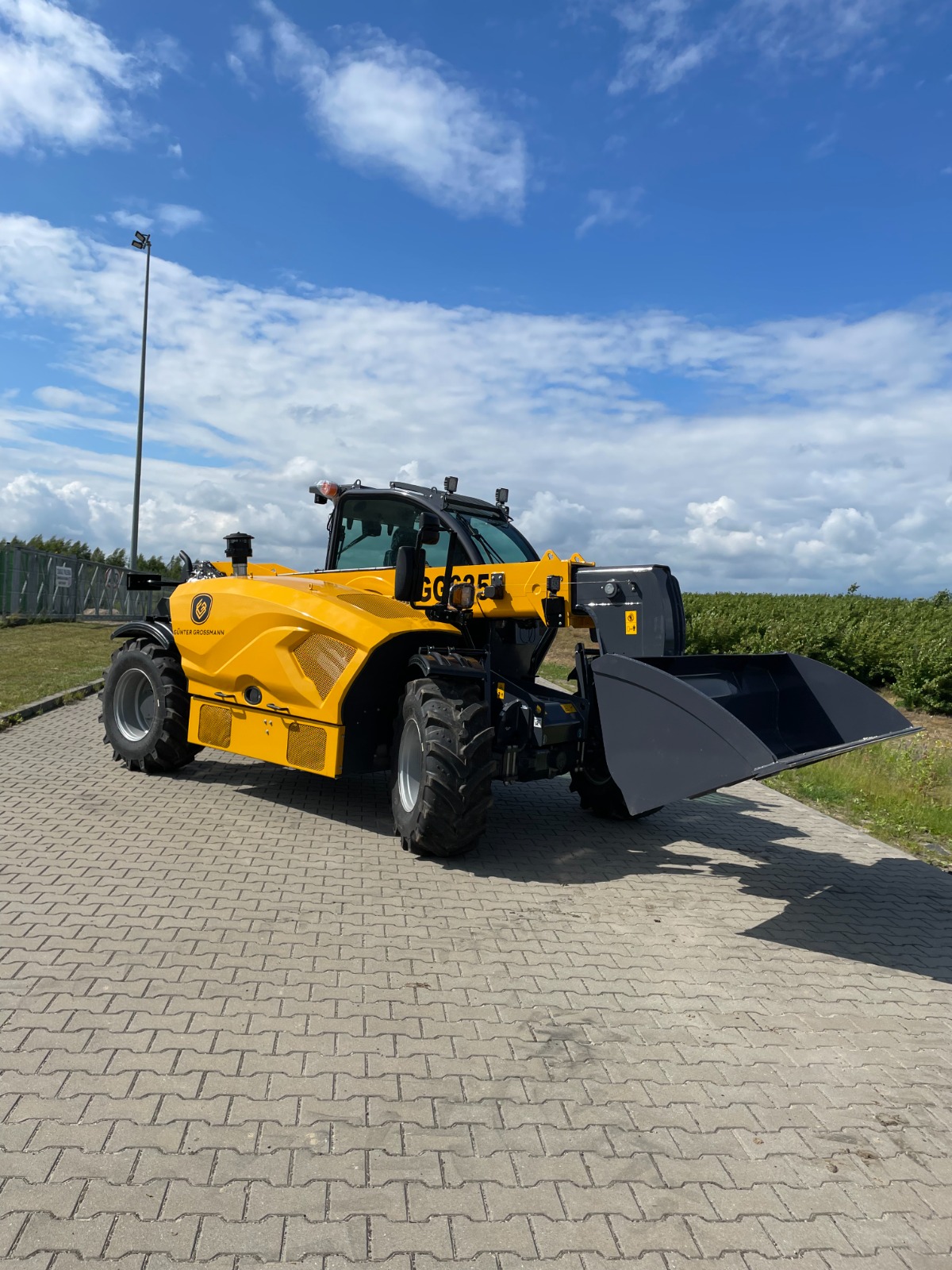

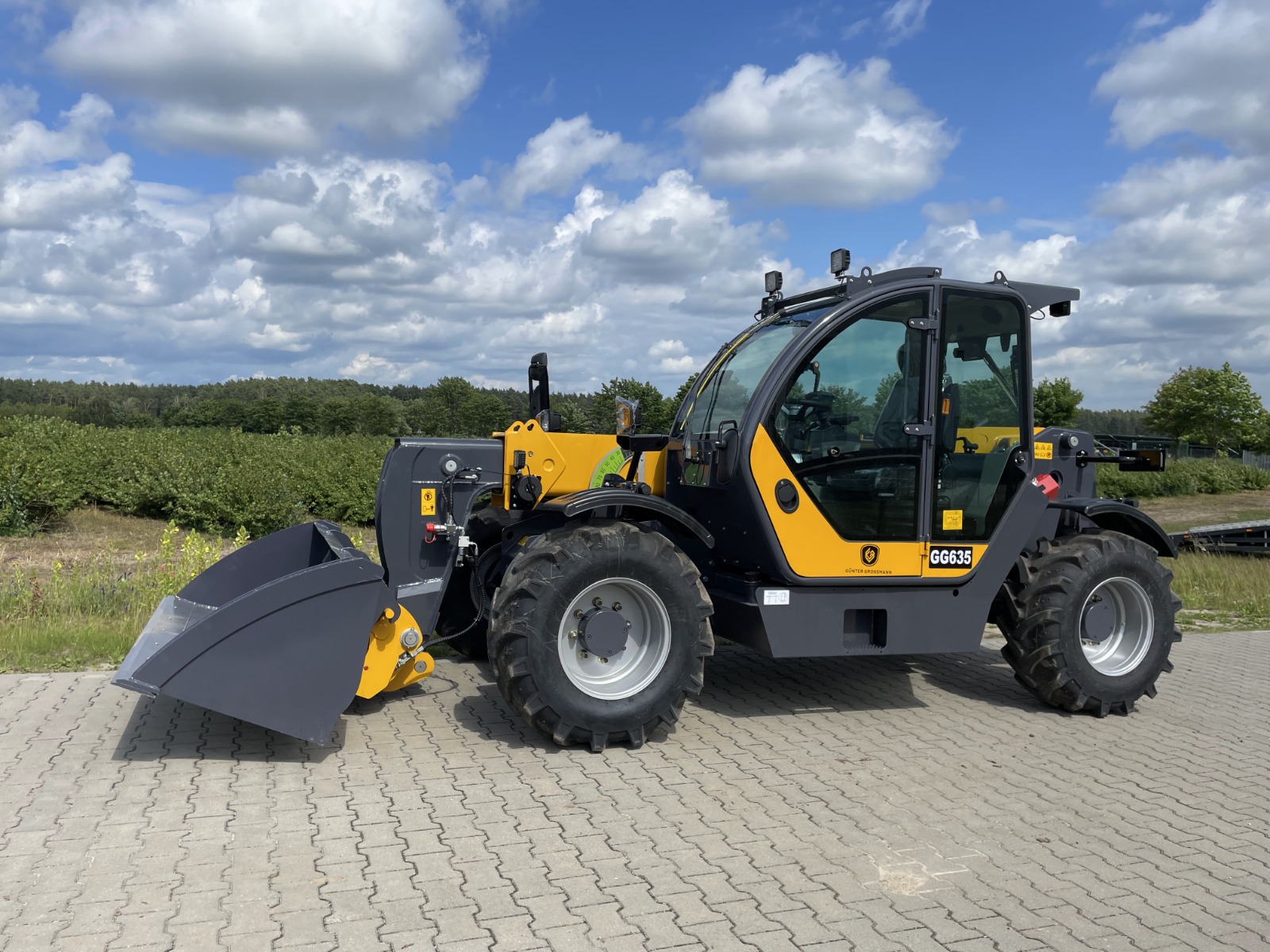

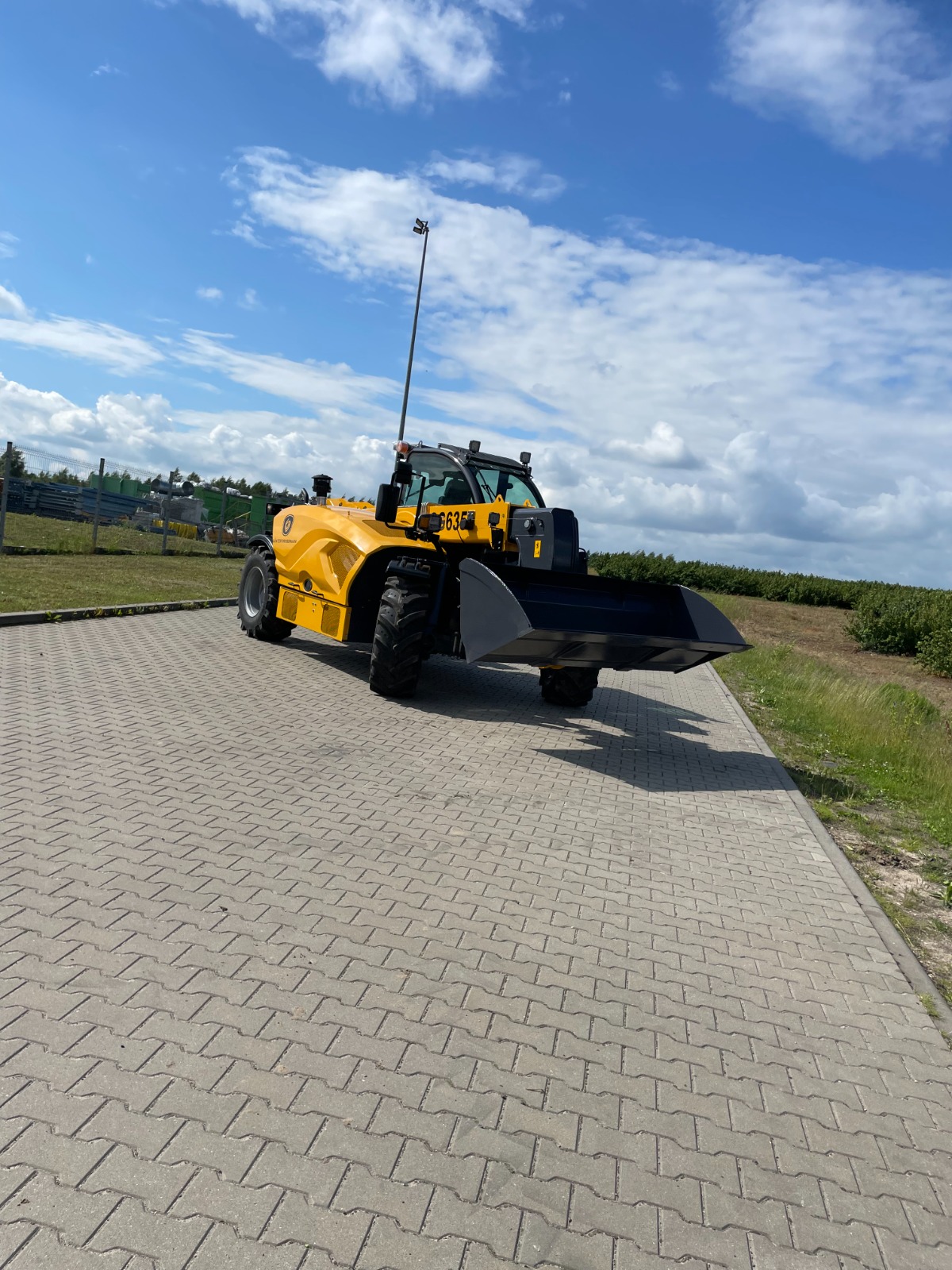

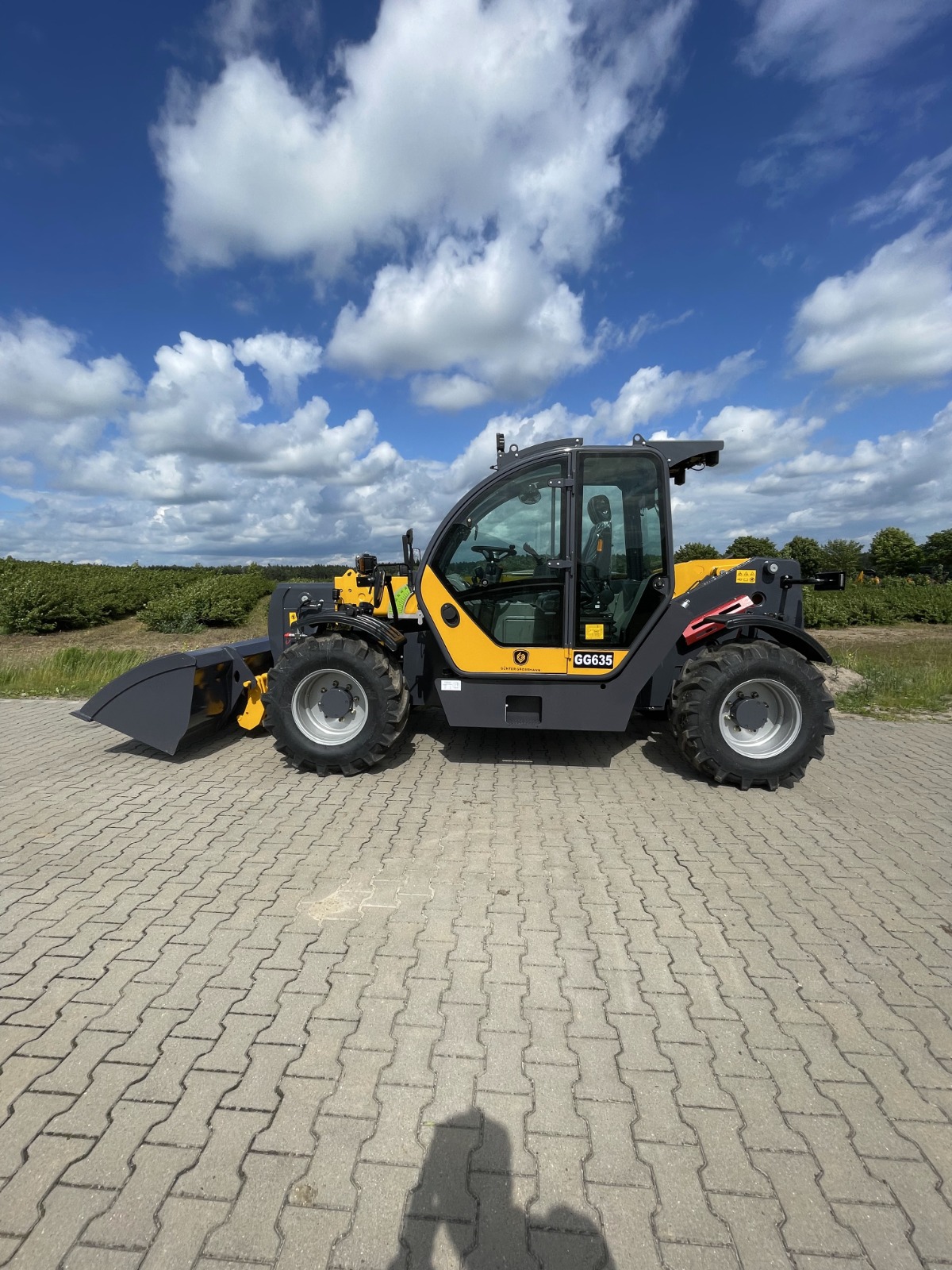

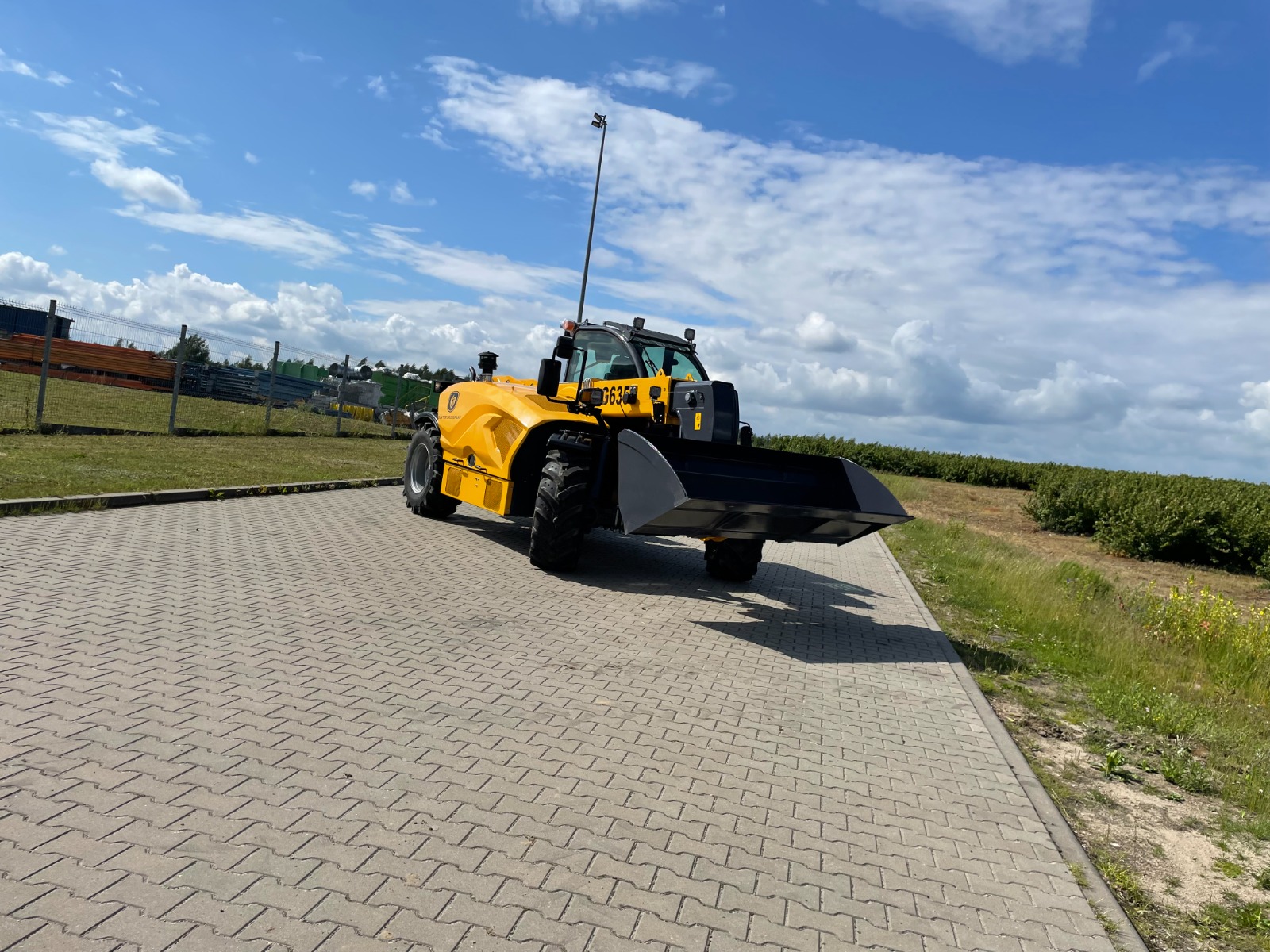

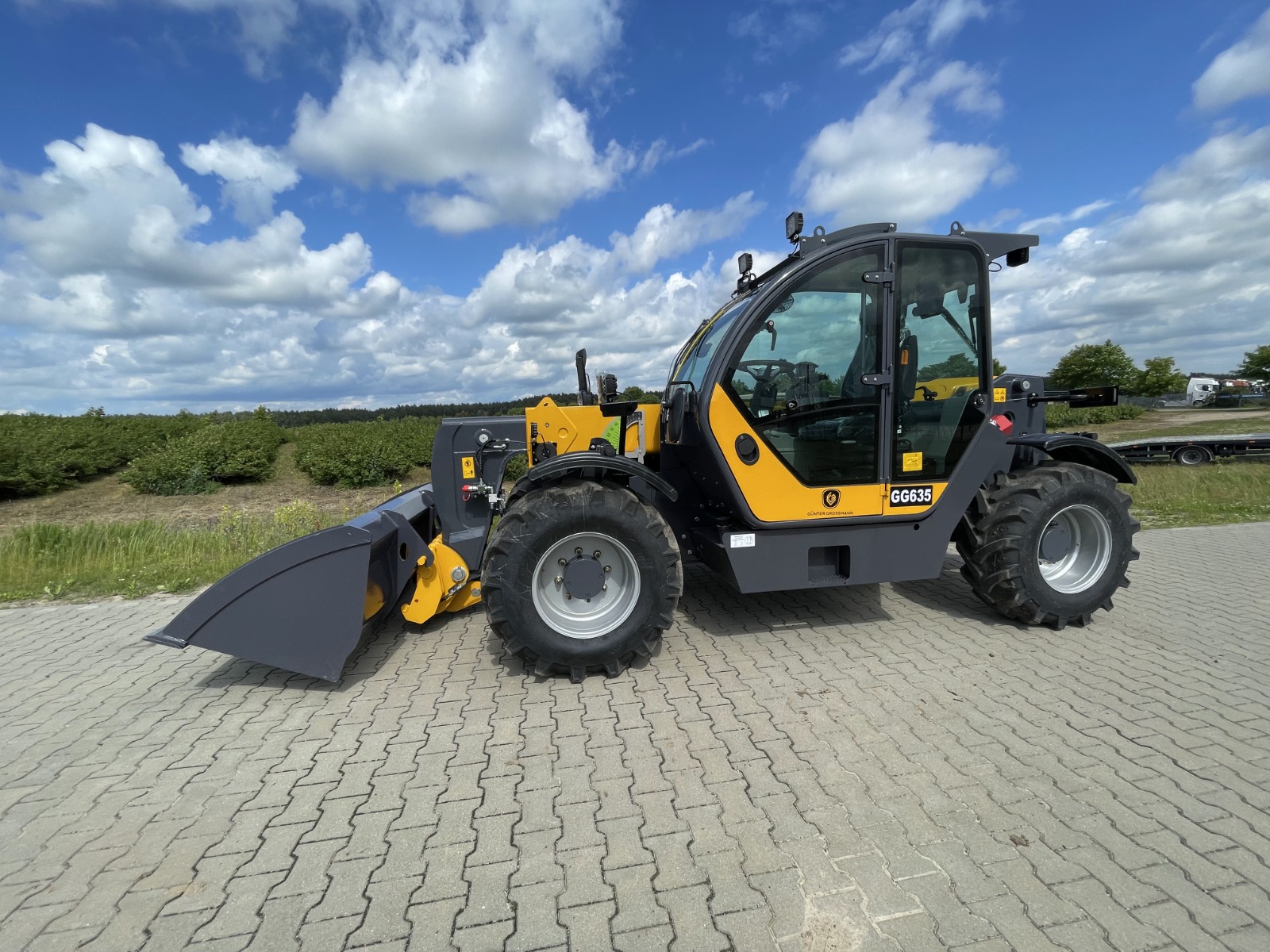

Telehandler GG635
Telehandler
The GG635 is an advanced telescopic loader designed for intensive work in agriculture, construction, and logistics. It combines a robust design, a precise hydraulic system, and an efficient Yuchai engine, offering reliability, high performance, and operational comfort in demanding conditions.
Yuchai Engine – Power and Durability
The GG635 is powered by an in-line, four-stroke, turbocharged, water-cooled Yuchai engine with a displacement of 3.6 L. The engine generates 74 kW of power at 2200 rpm, guaranteeing dynamic and smooth operation while ensuring fuel efficiency and long component lifespan.
Hydrostatic Drive System and High-Performance Hydraulics
The hydrostatic drive system, implemented via a propshaft, enables precise maneuvering in difficult terrain. The load-sensing variable displacement piston pump achieves a flow rate of 175 L/min at a working pressure of 280 bar, ensuring fast and accurate attachment control and maximum operational efficiency.
Performance and Lifting Capabilities
The GG635 offers a maximum load capacity of up to 3500 kg, making it perfectly suited for handling heavy loads. The fork tine length is 1200 mm, and the static axle load reaches 18 T, ensuring safety and stability when working with a full load.
Safety and Stability
The robust construction and operating weight of 7300 kg guarantee exceptional stability in all conditions. Wet brakes and high-quality components ensure reliability, safety, and operating comfort during intensive use.
Operating Economy and Efficiency
Large fuel (120 L) and hydraulic oil (180 L) tanks enable long-term operation without the need for frequent fluid refilling breaks. The hydrostatic drive ensures fuel economy and precise maneuvering in demanding terrain, increasing overall operational efficiency.

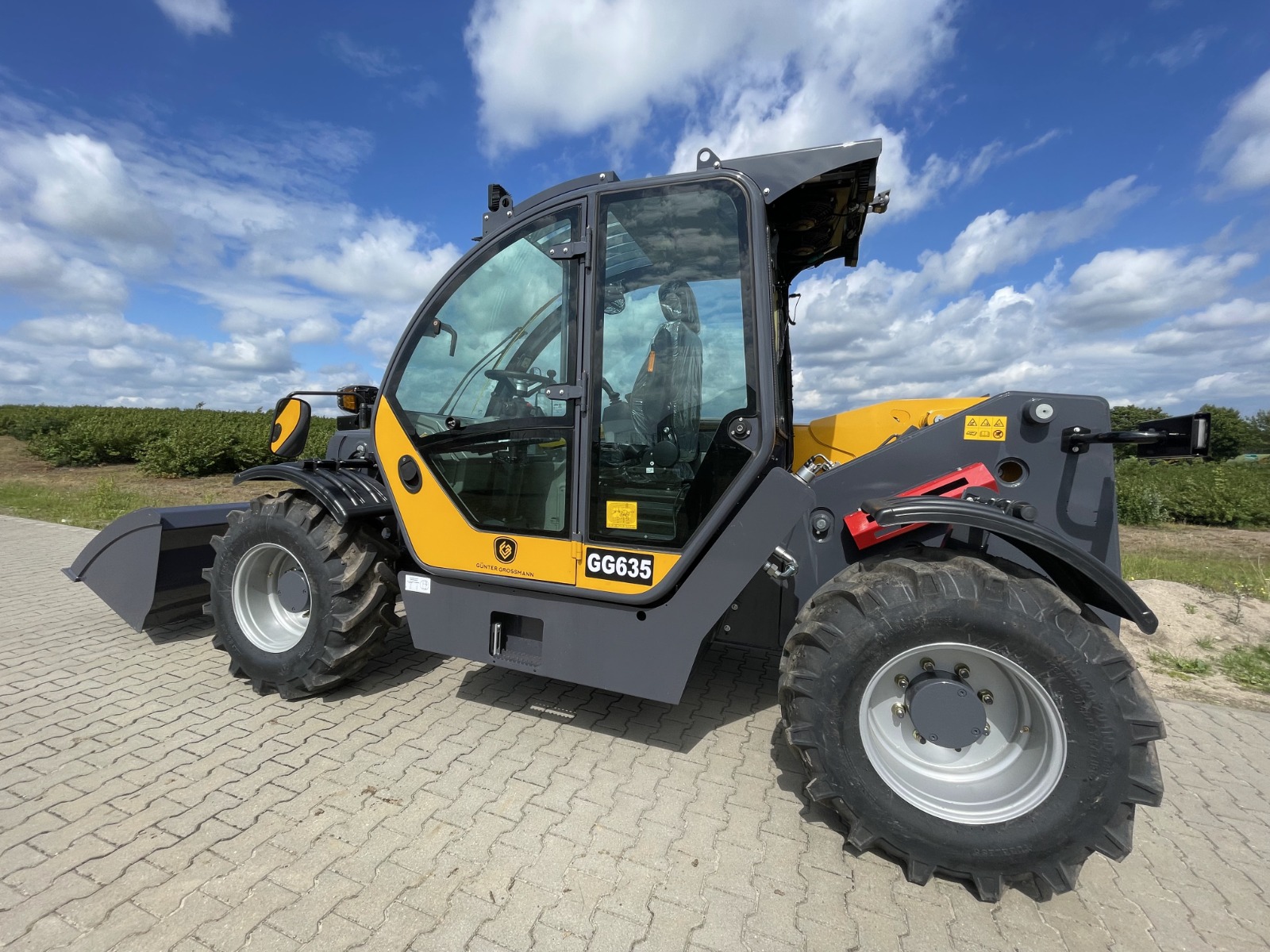

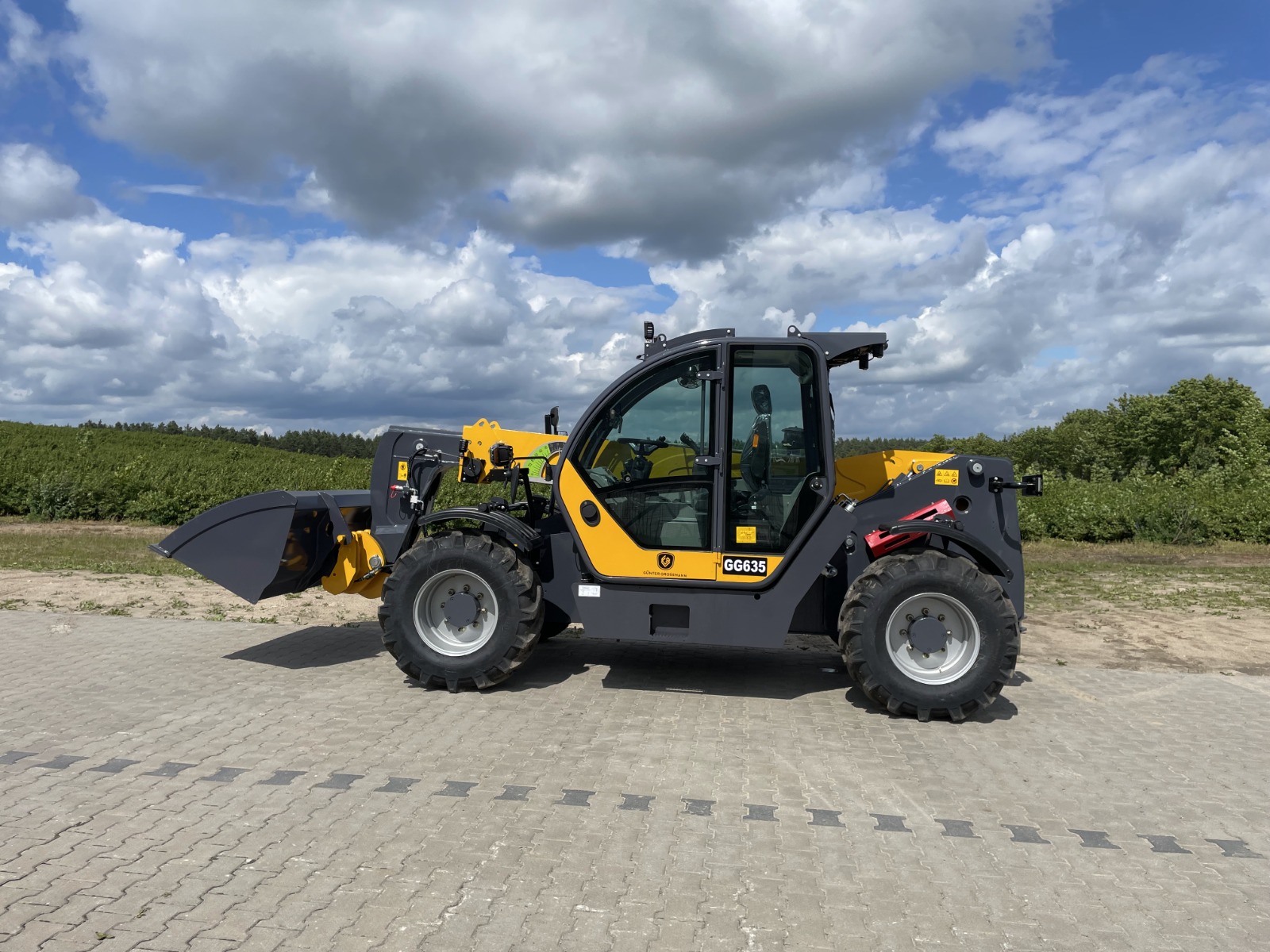

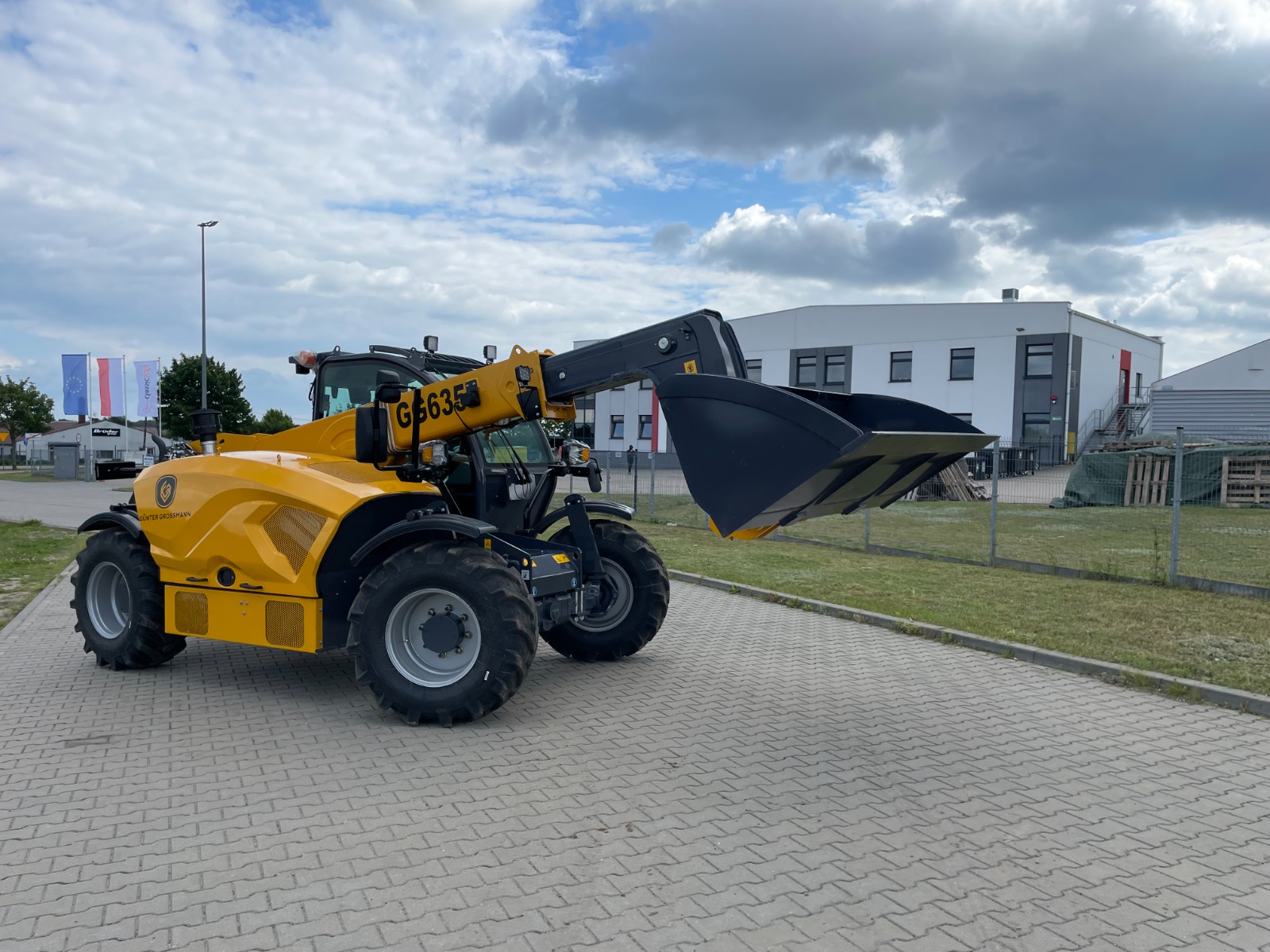

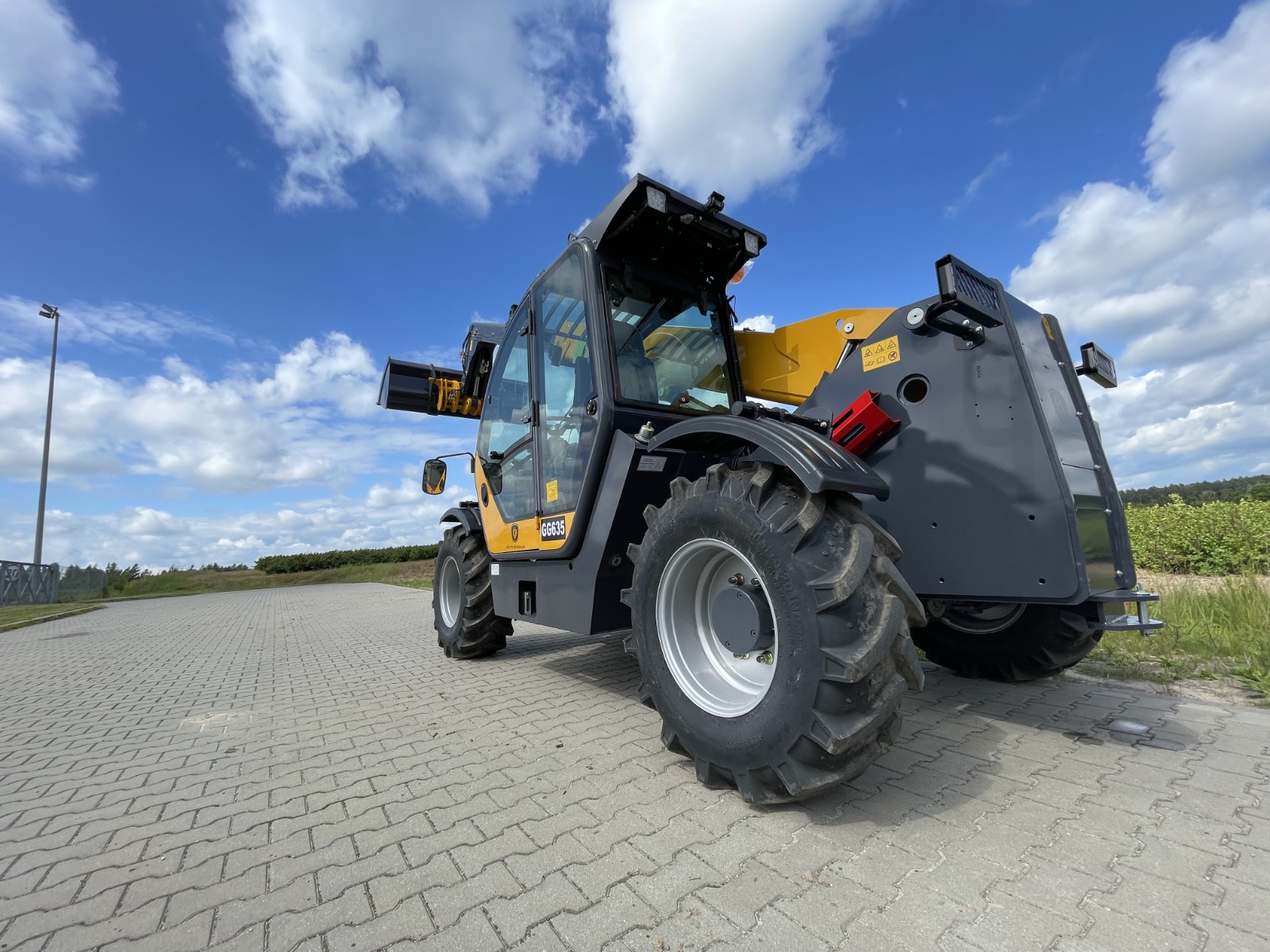

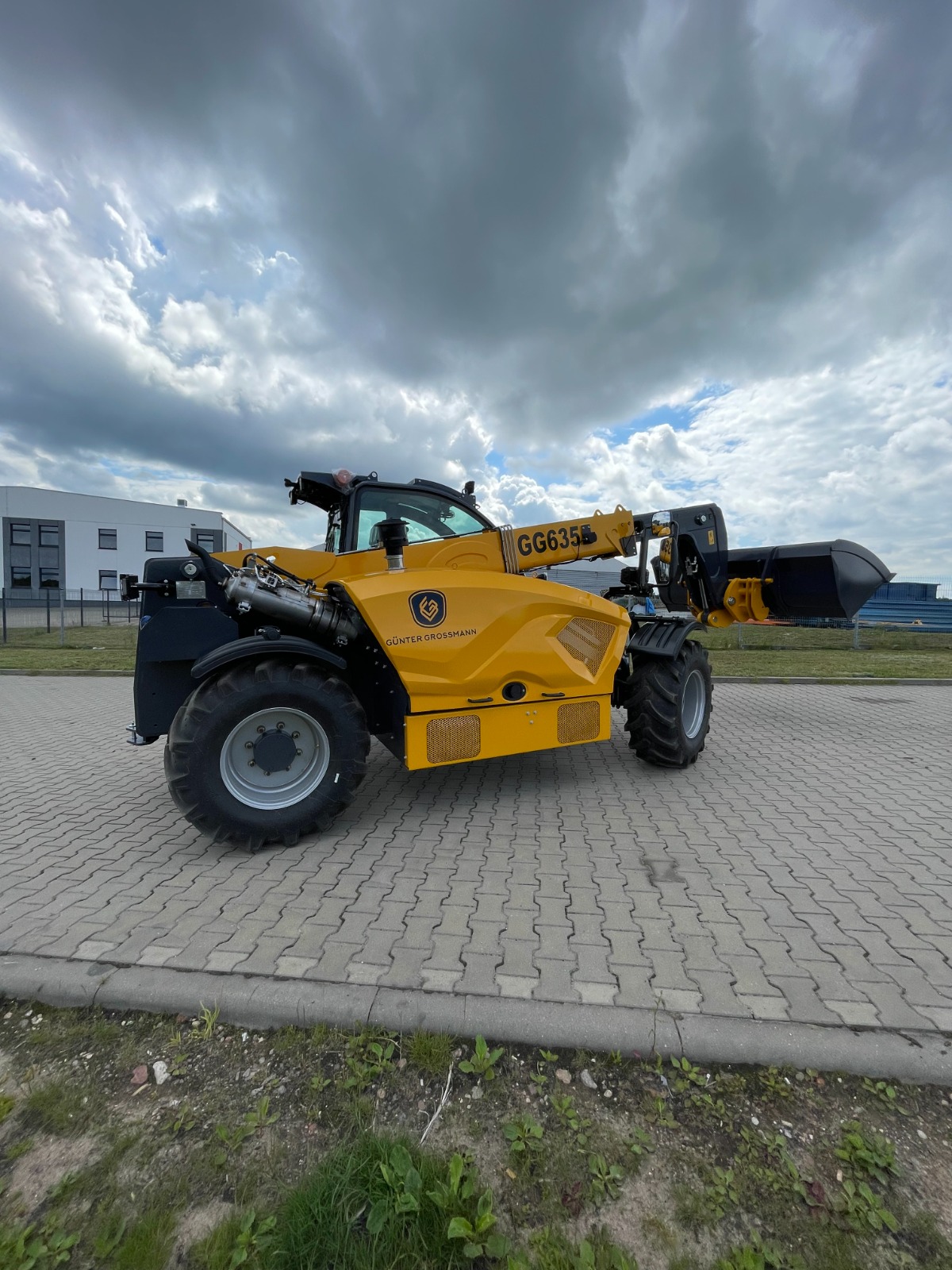

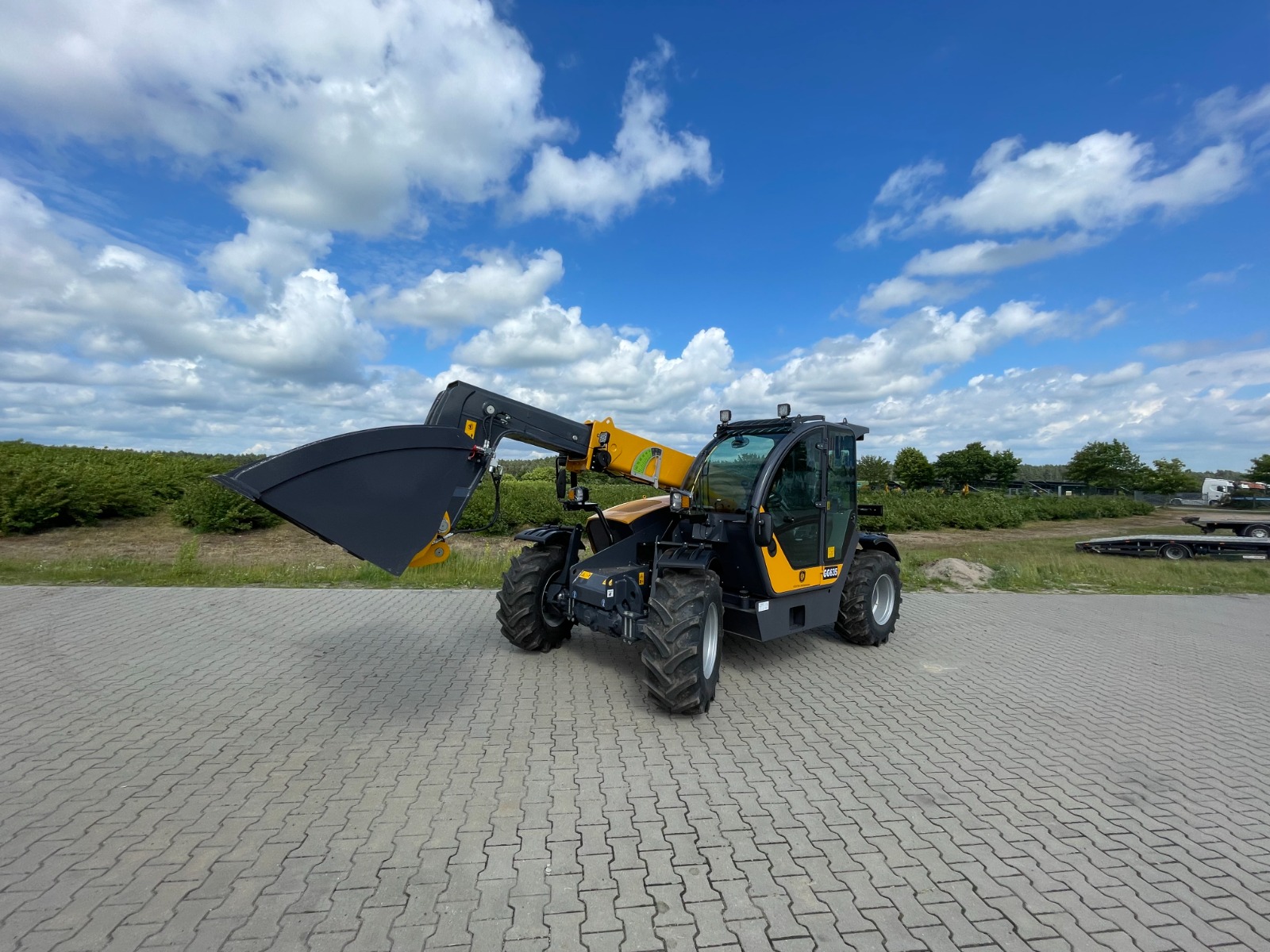

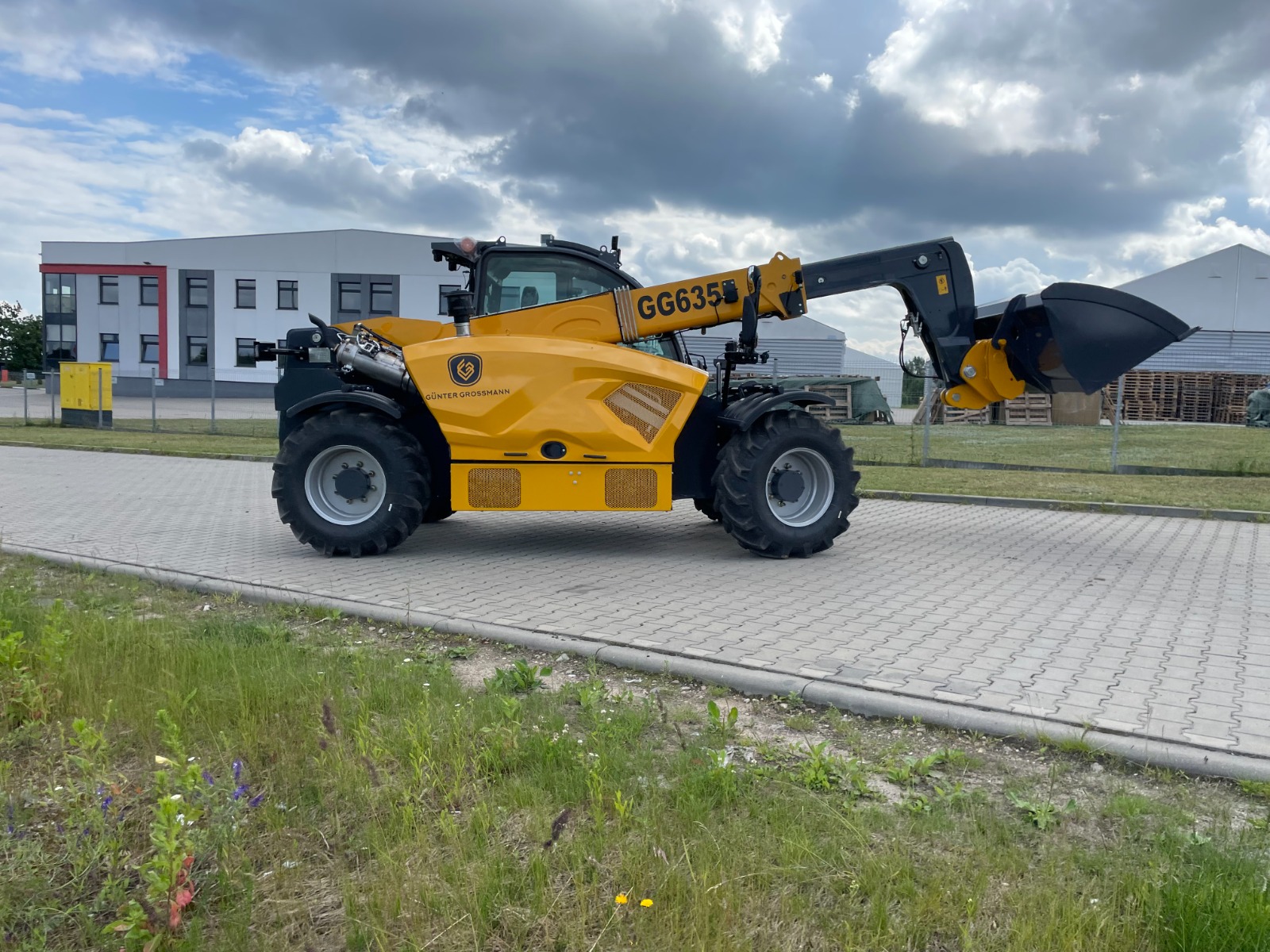

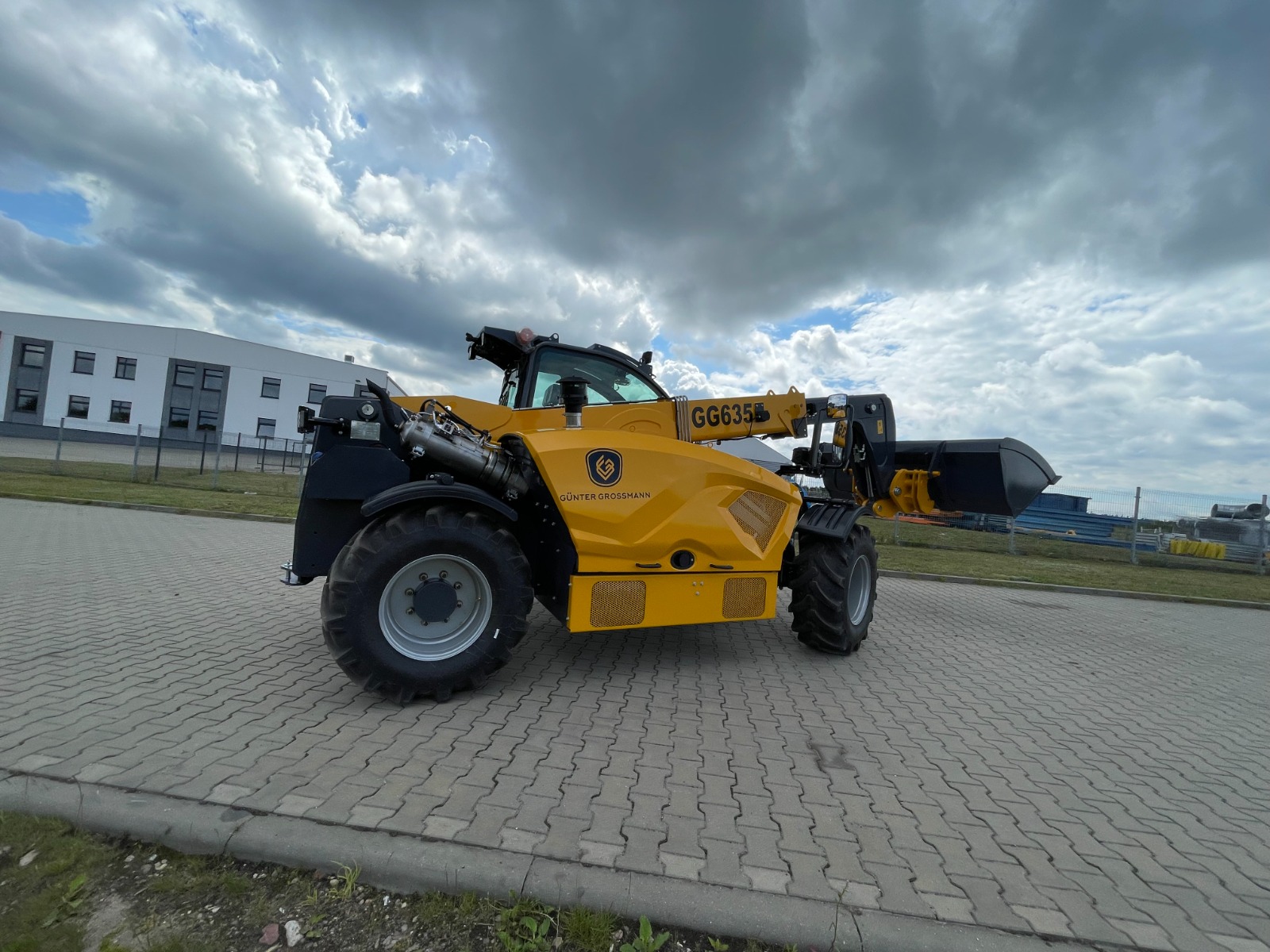

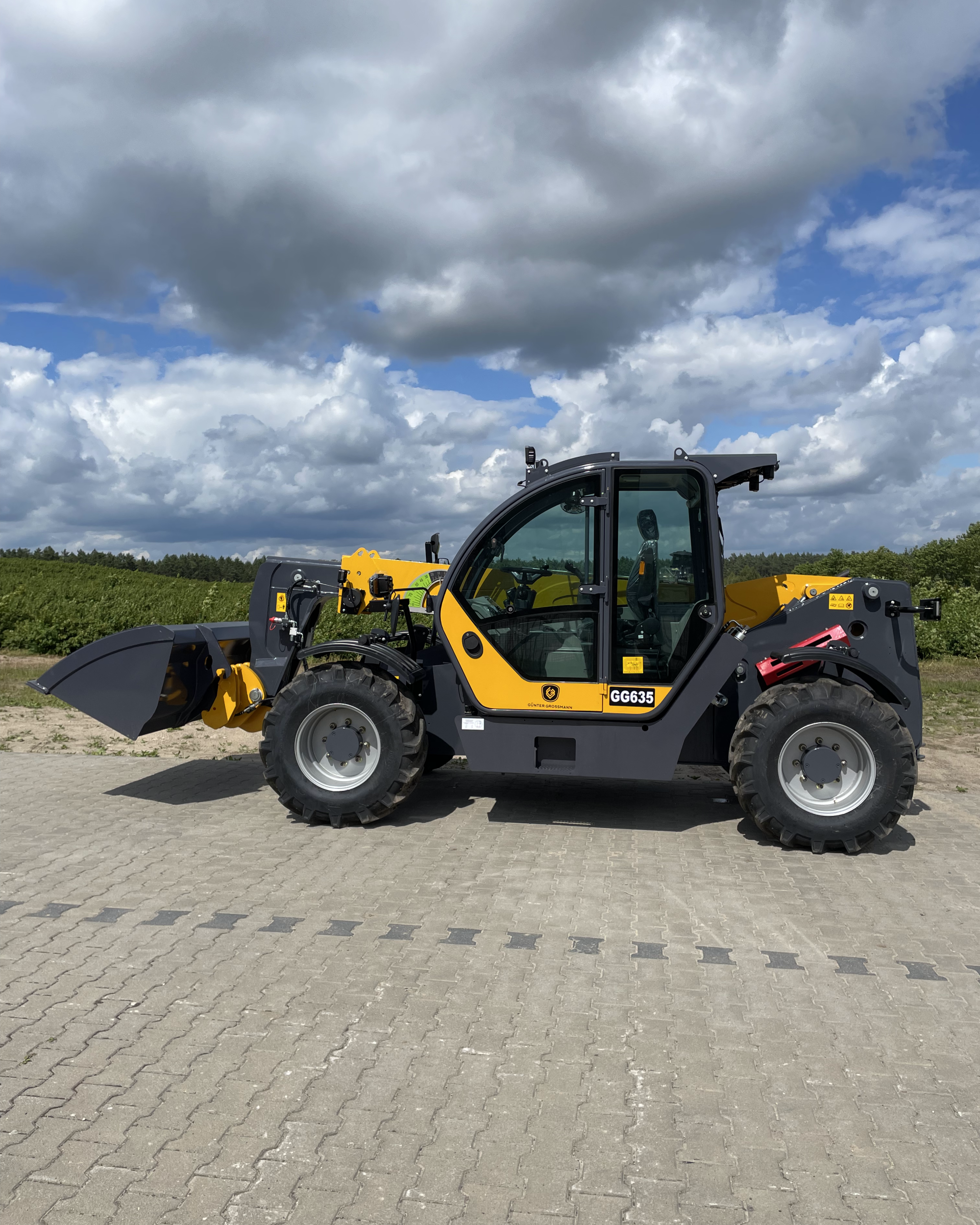

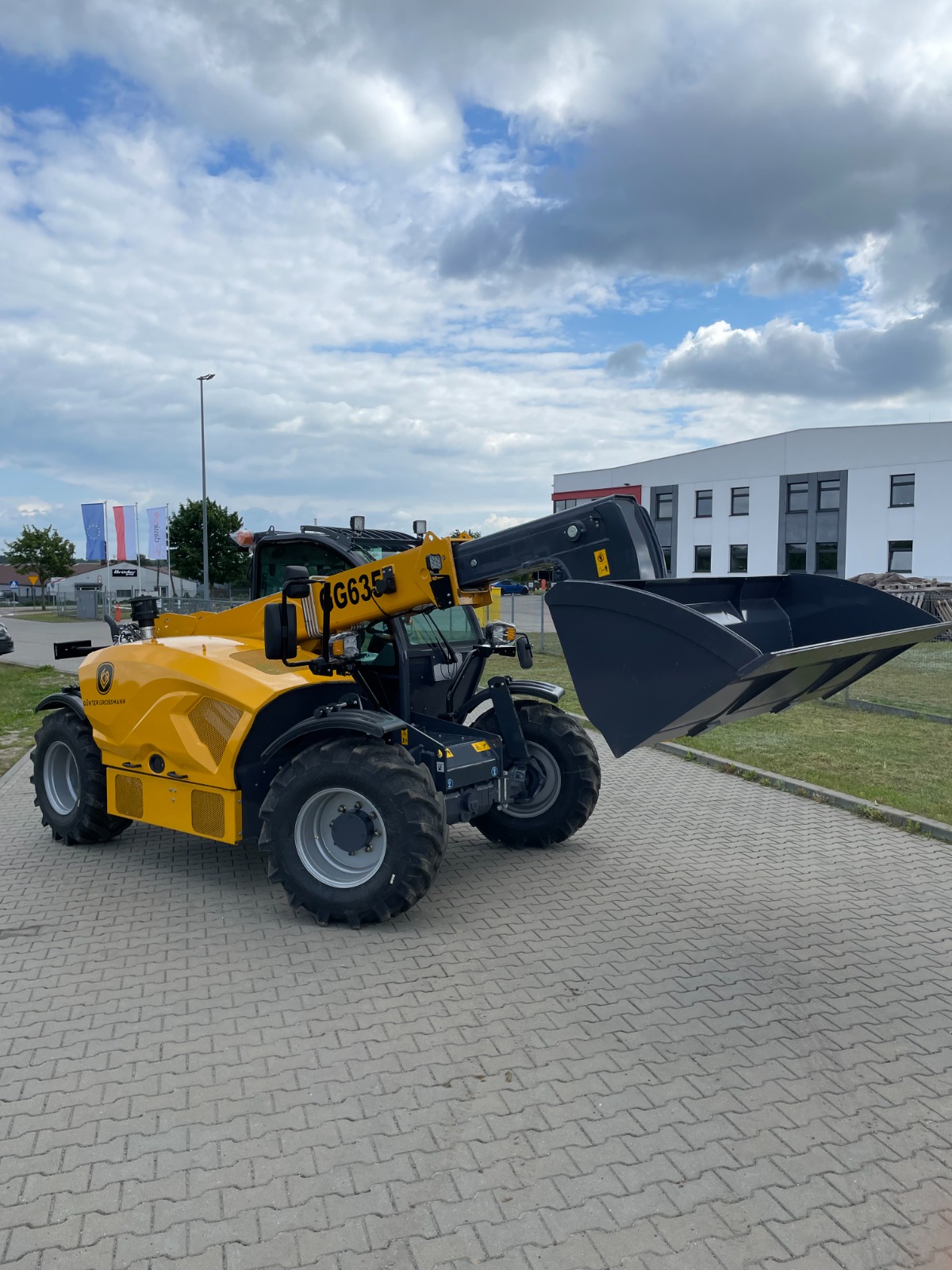

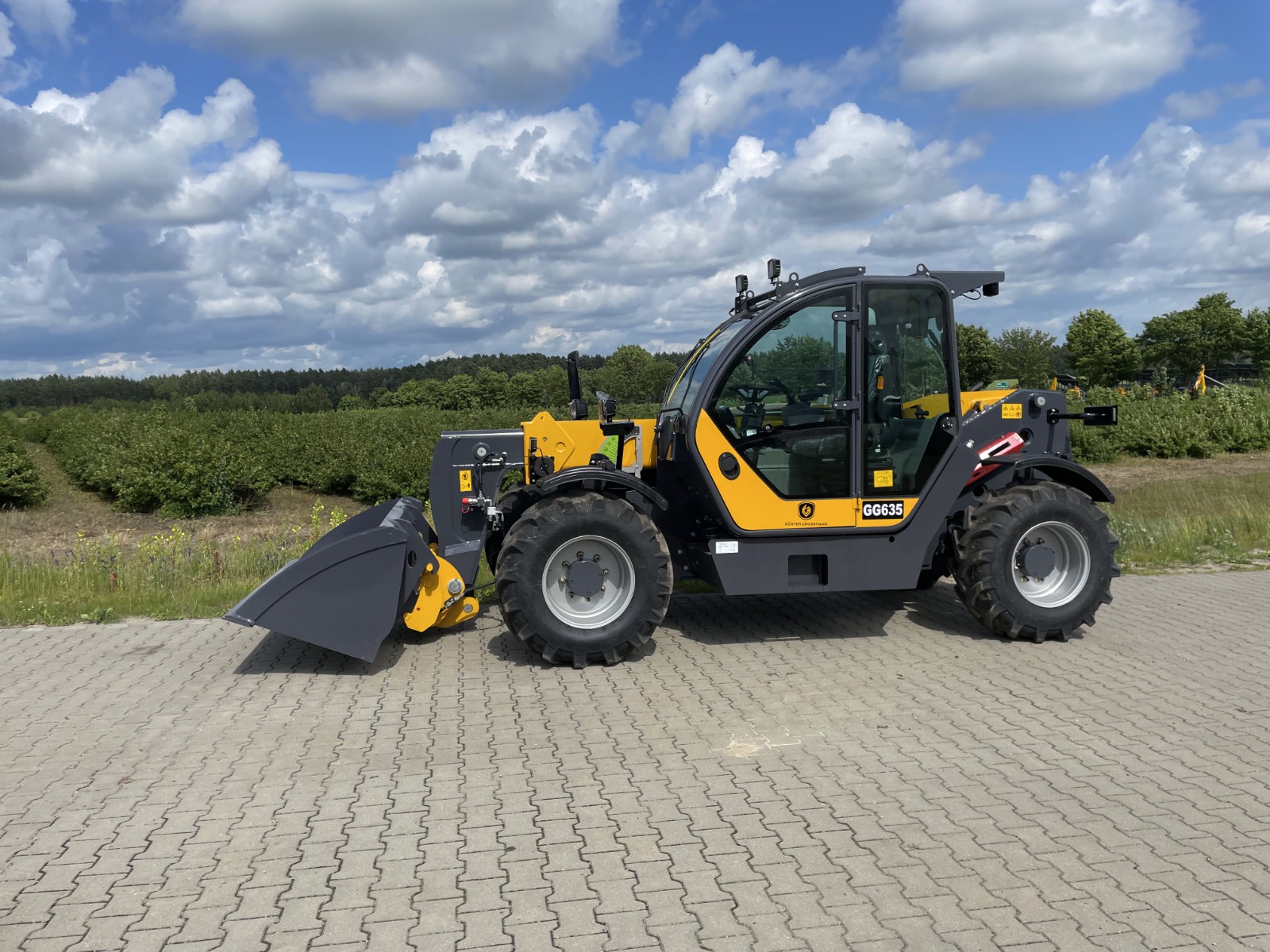

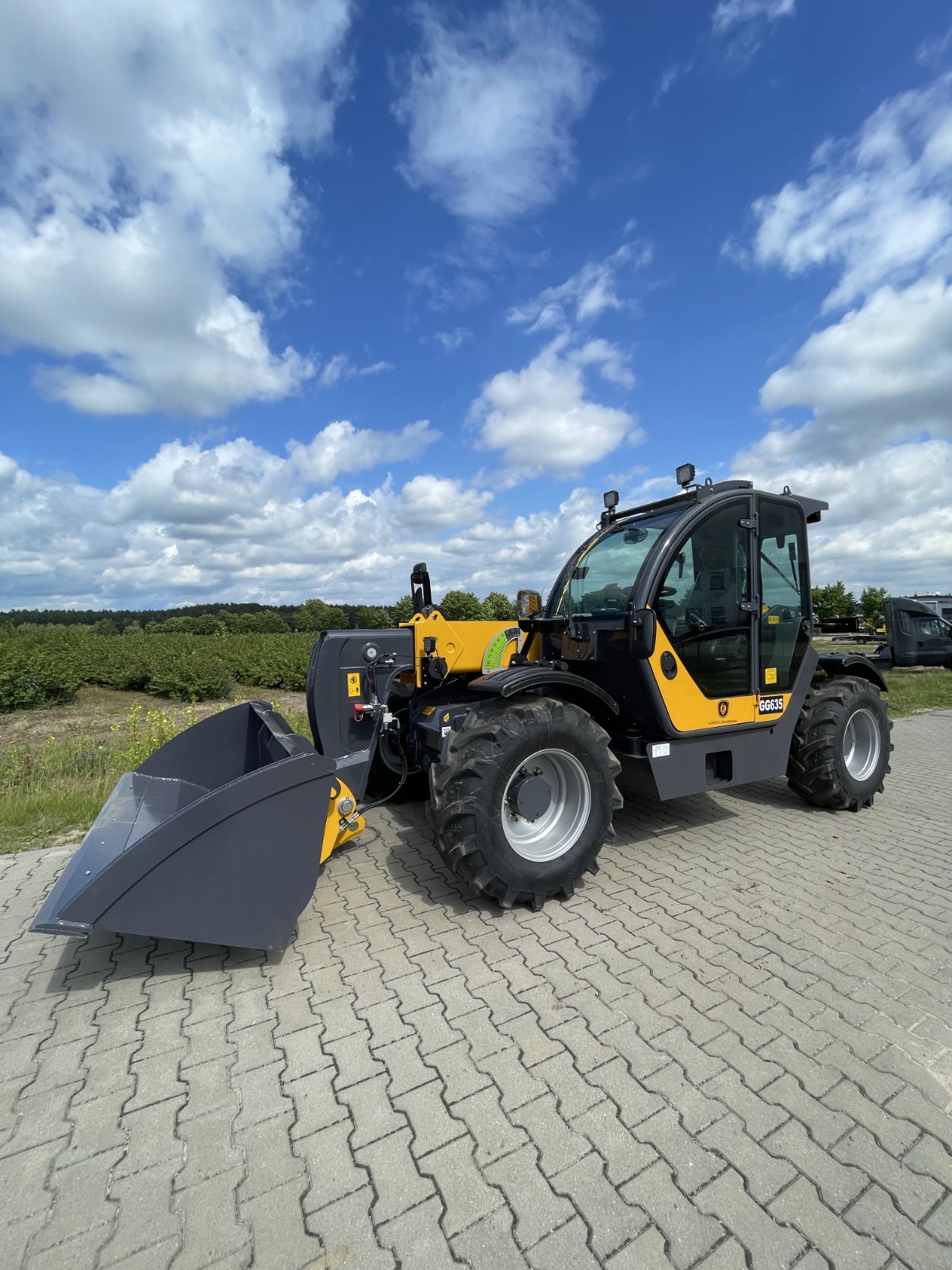

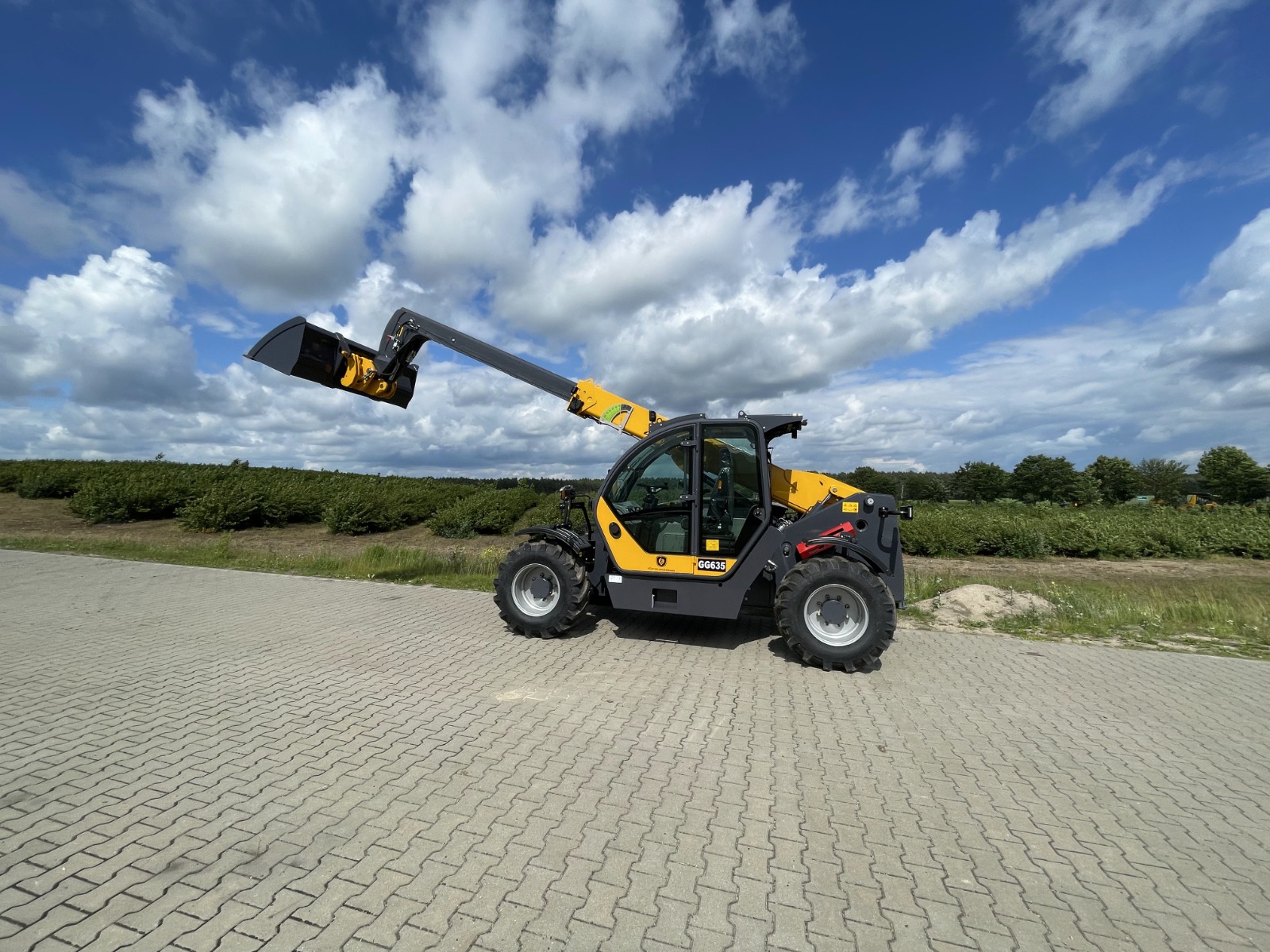

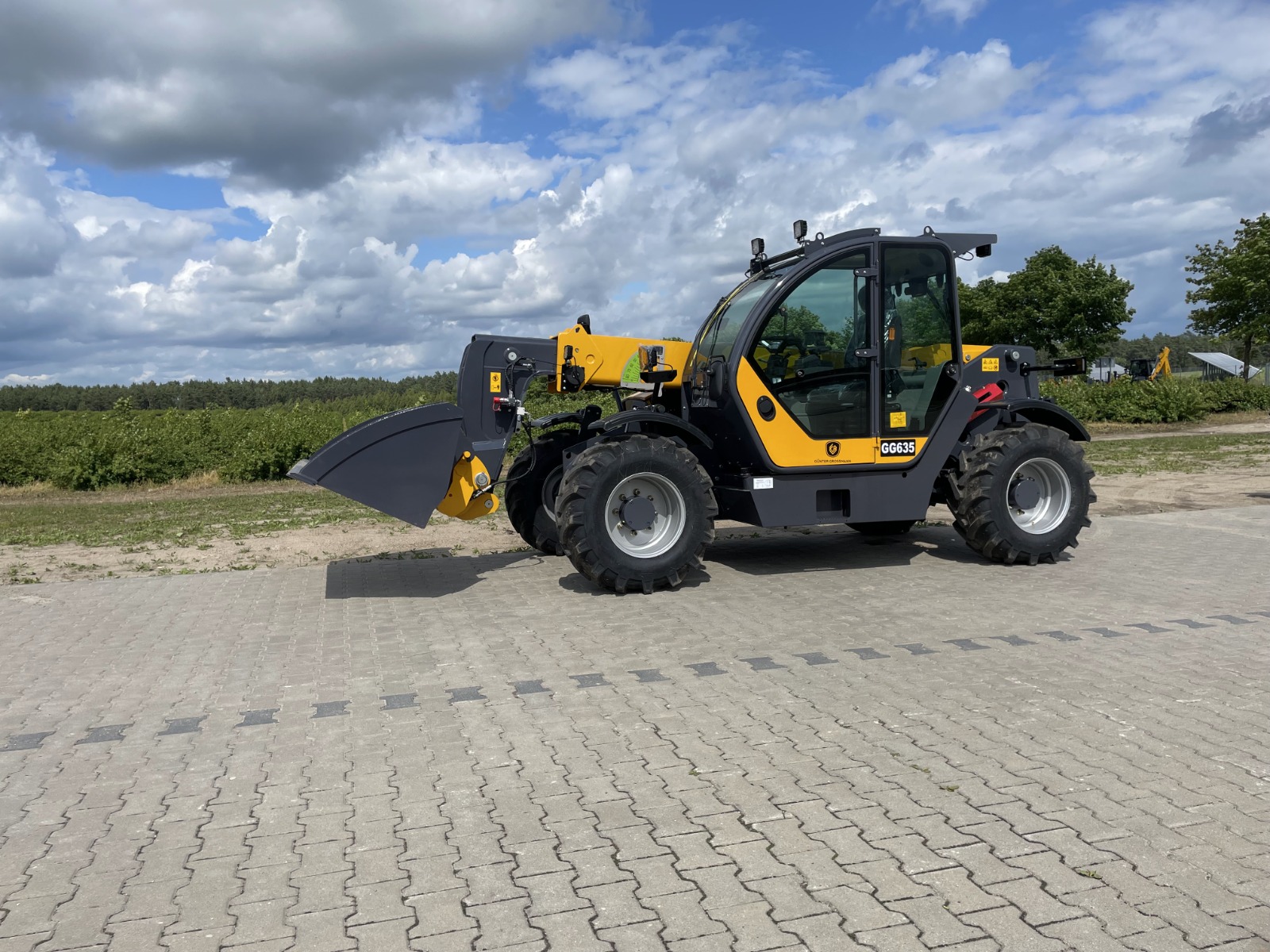

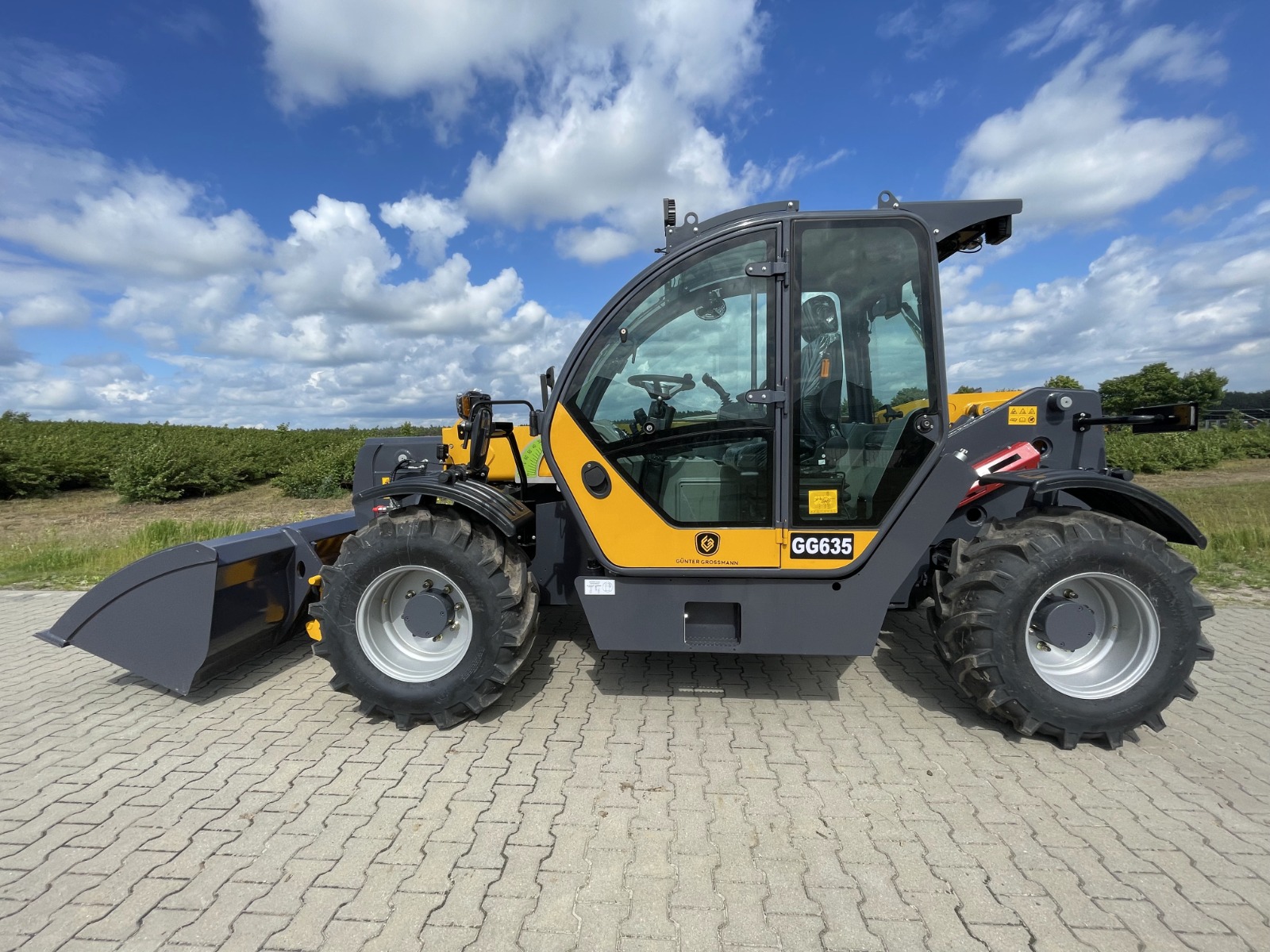

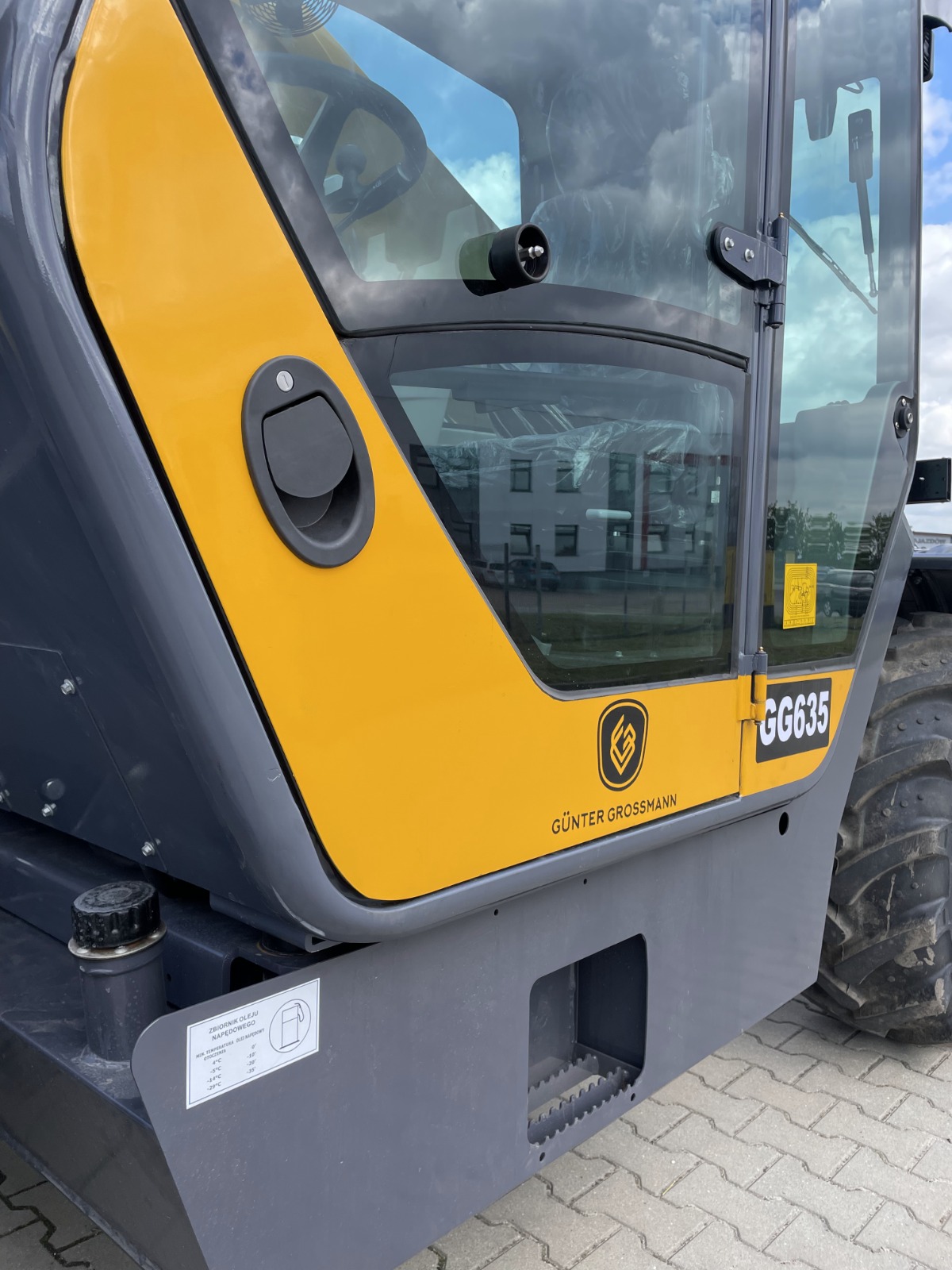

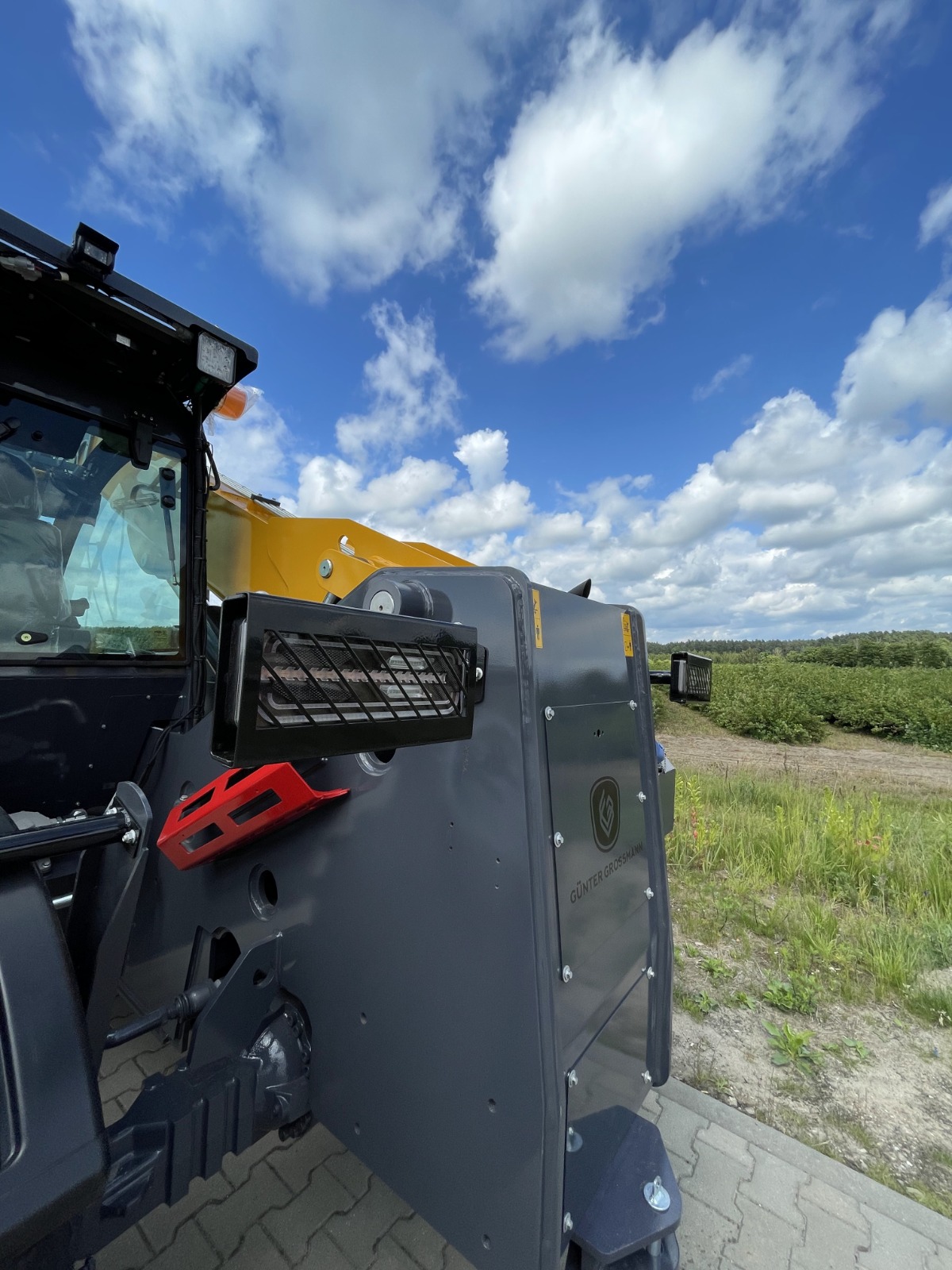

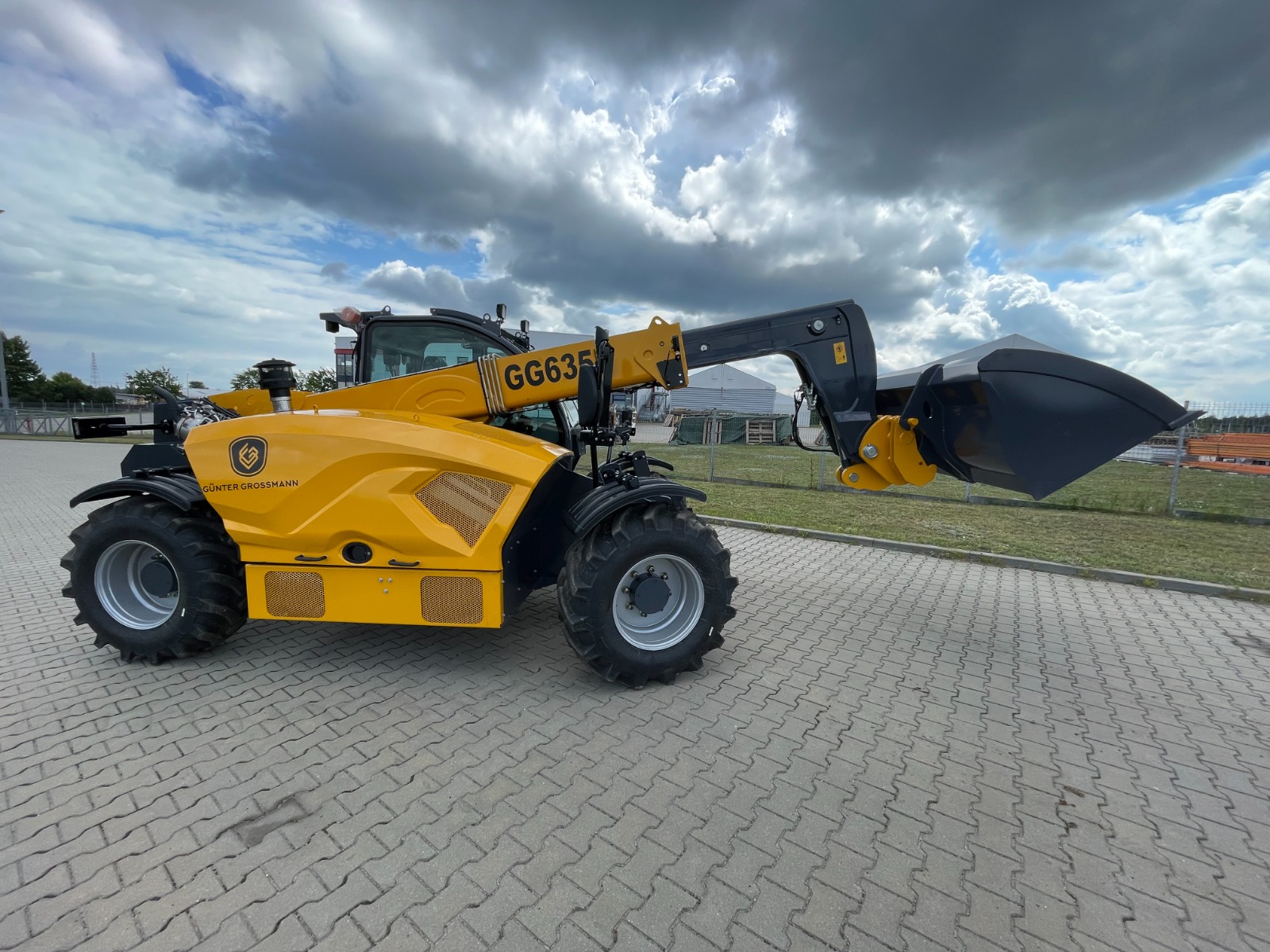

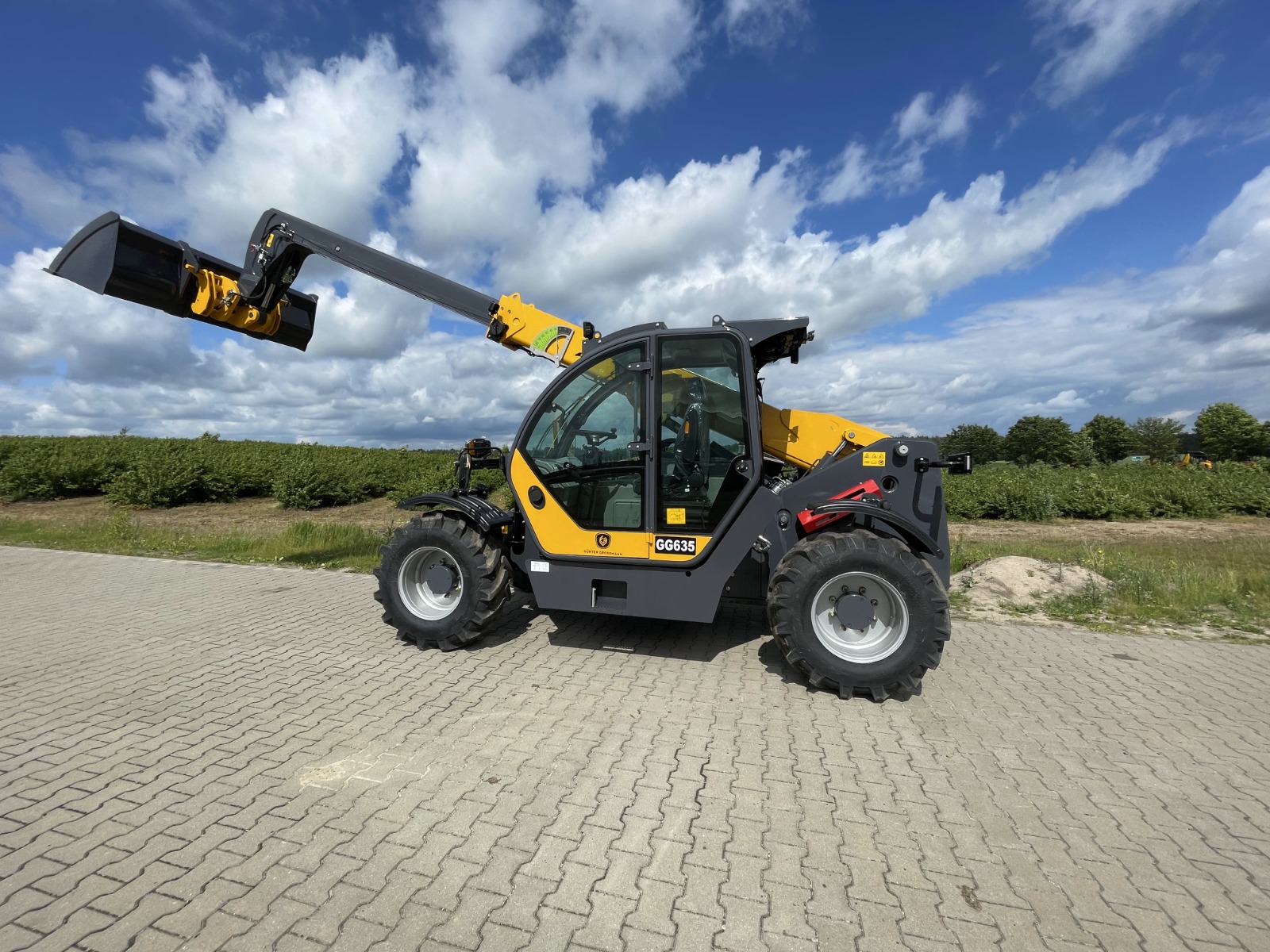

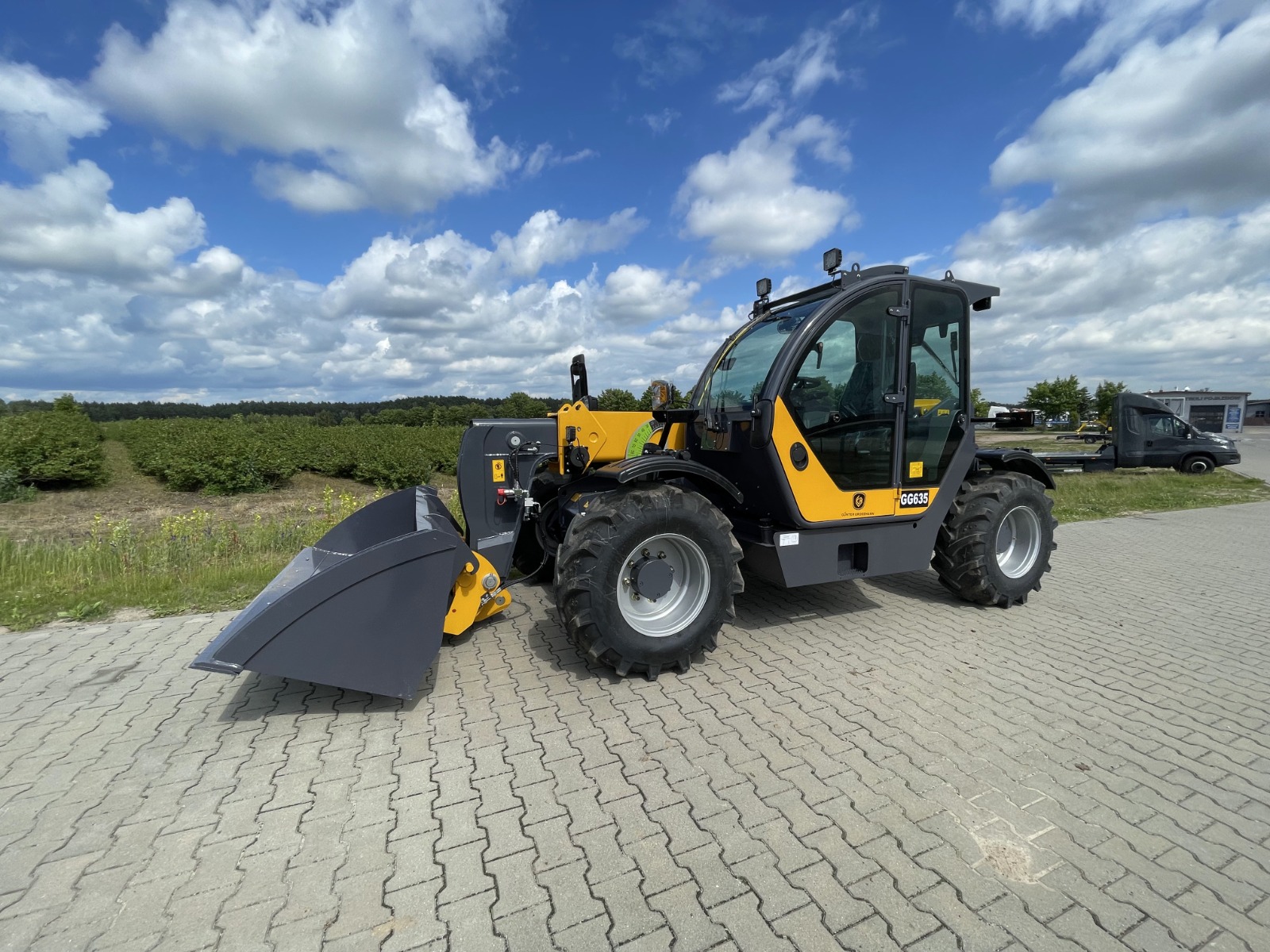

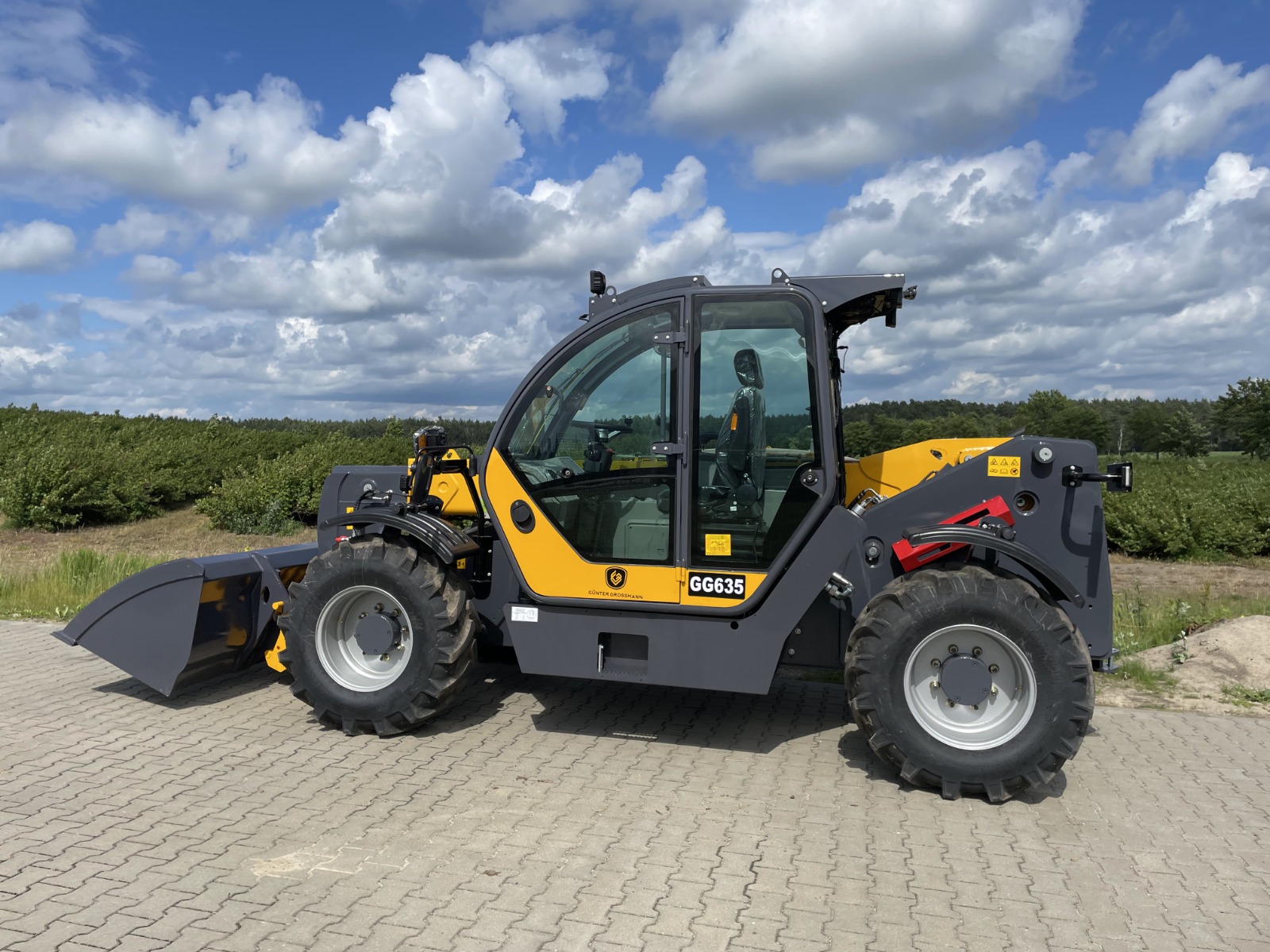

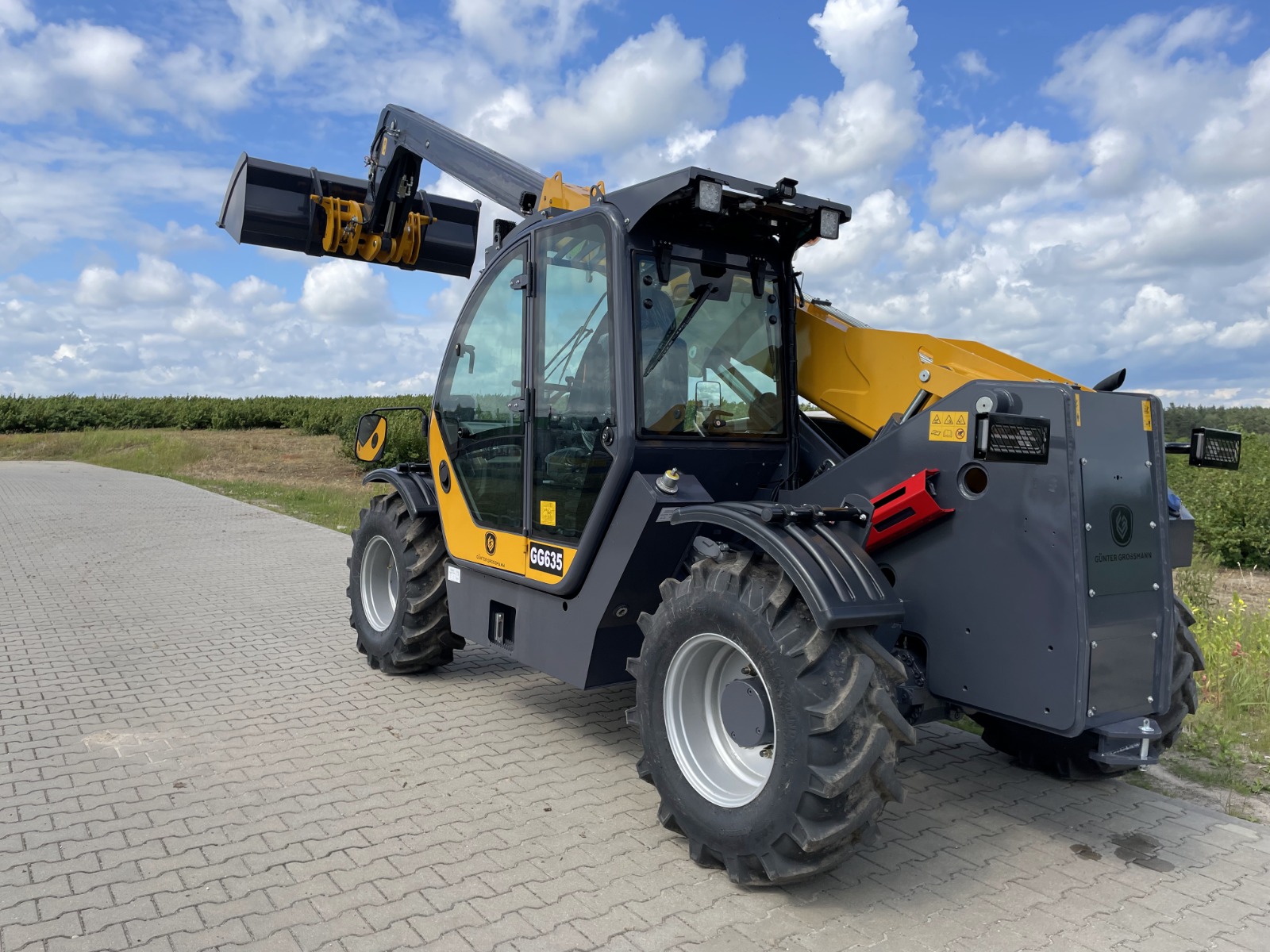

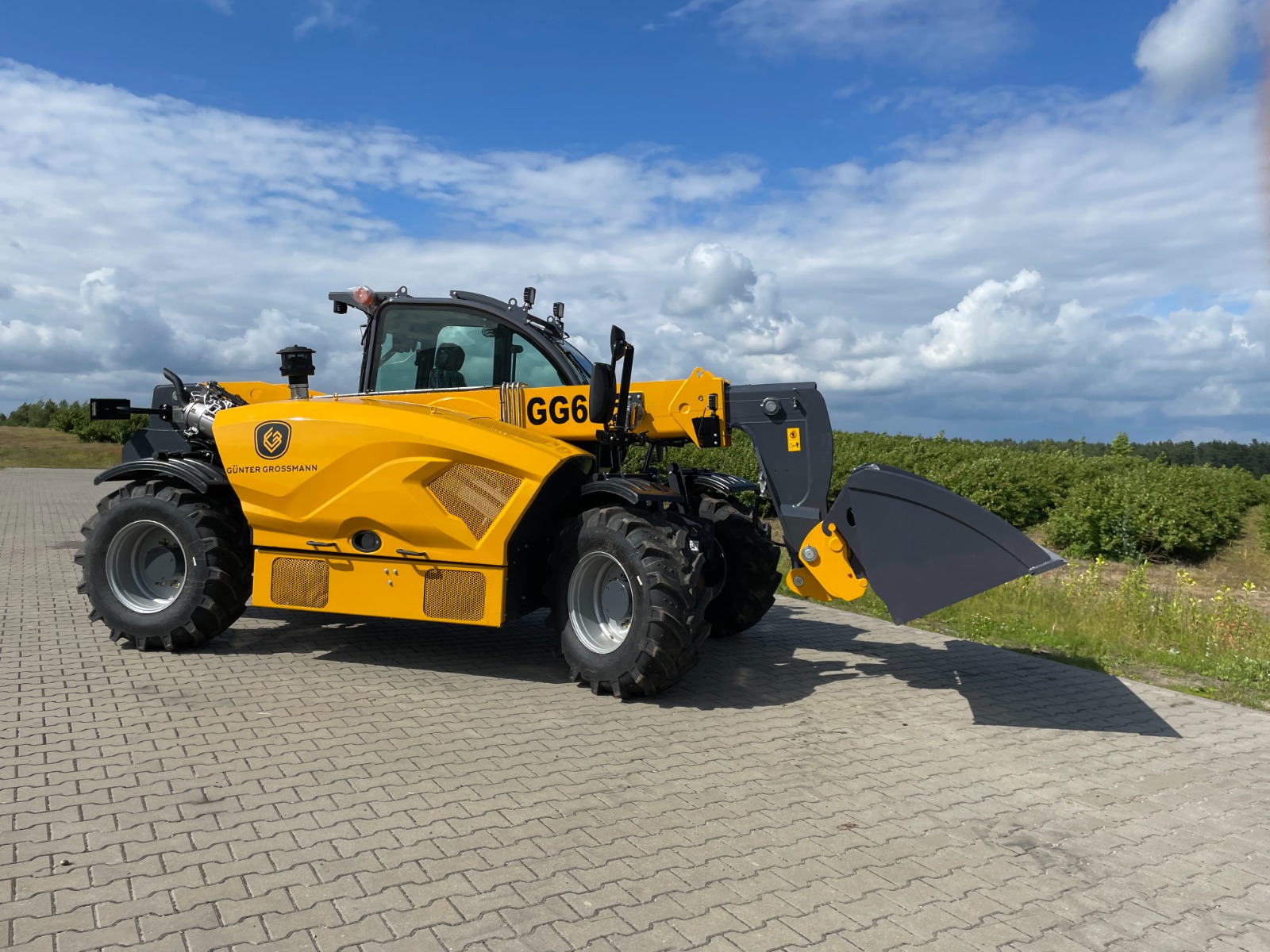

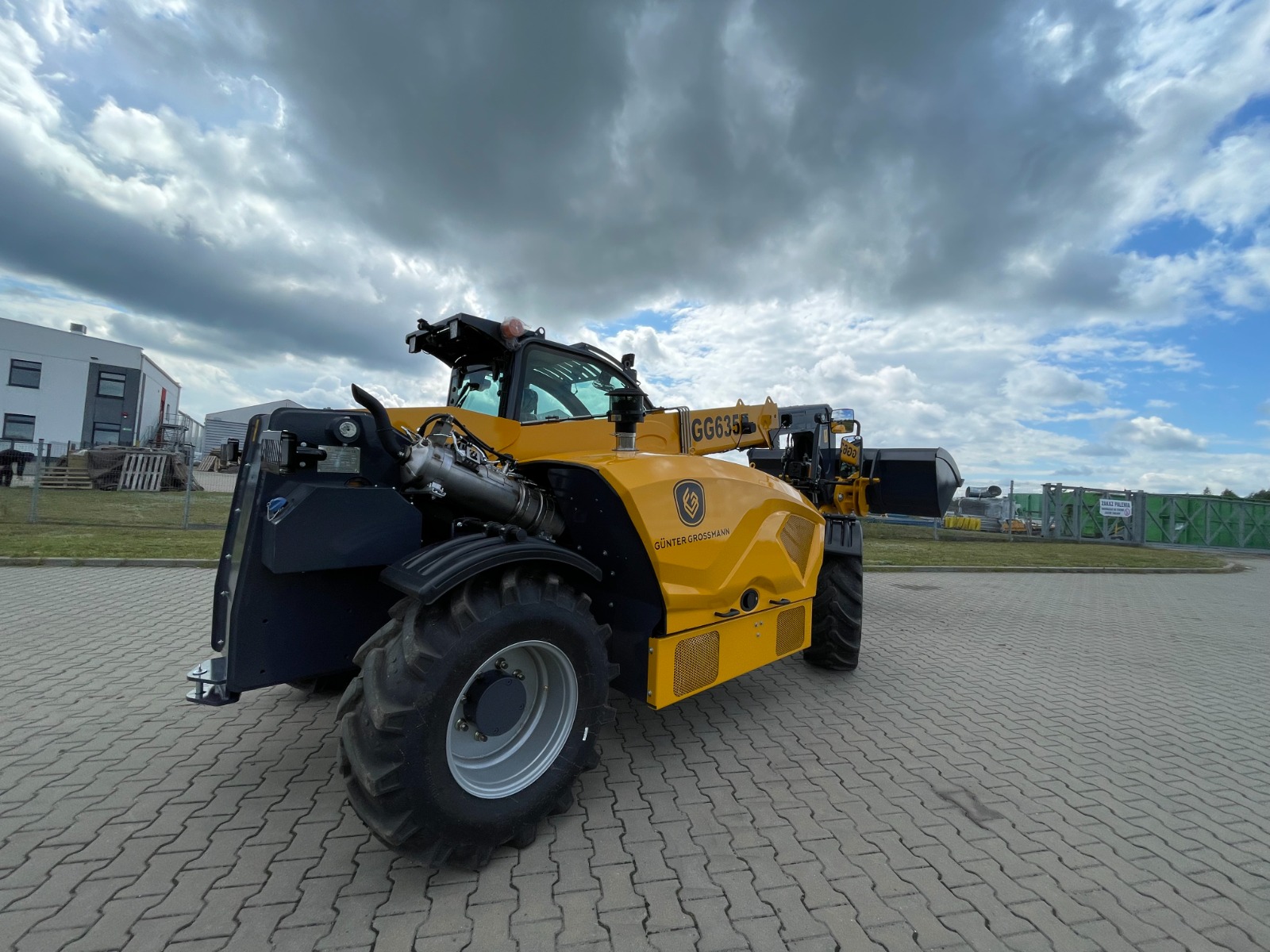

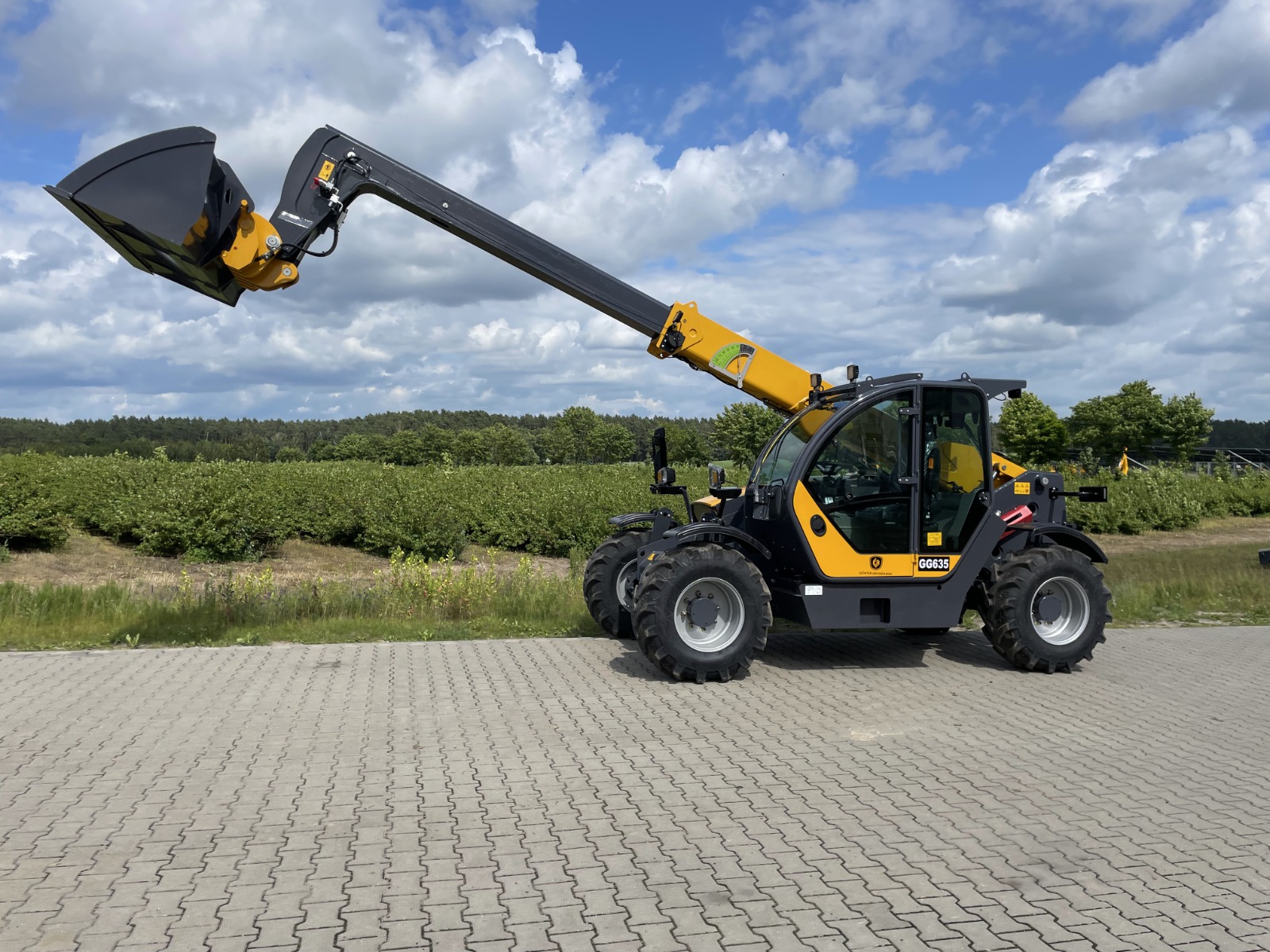

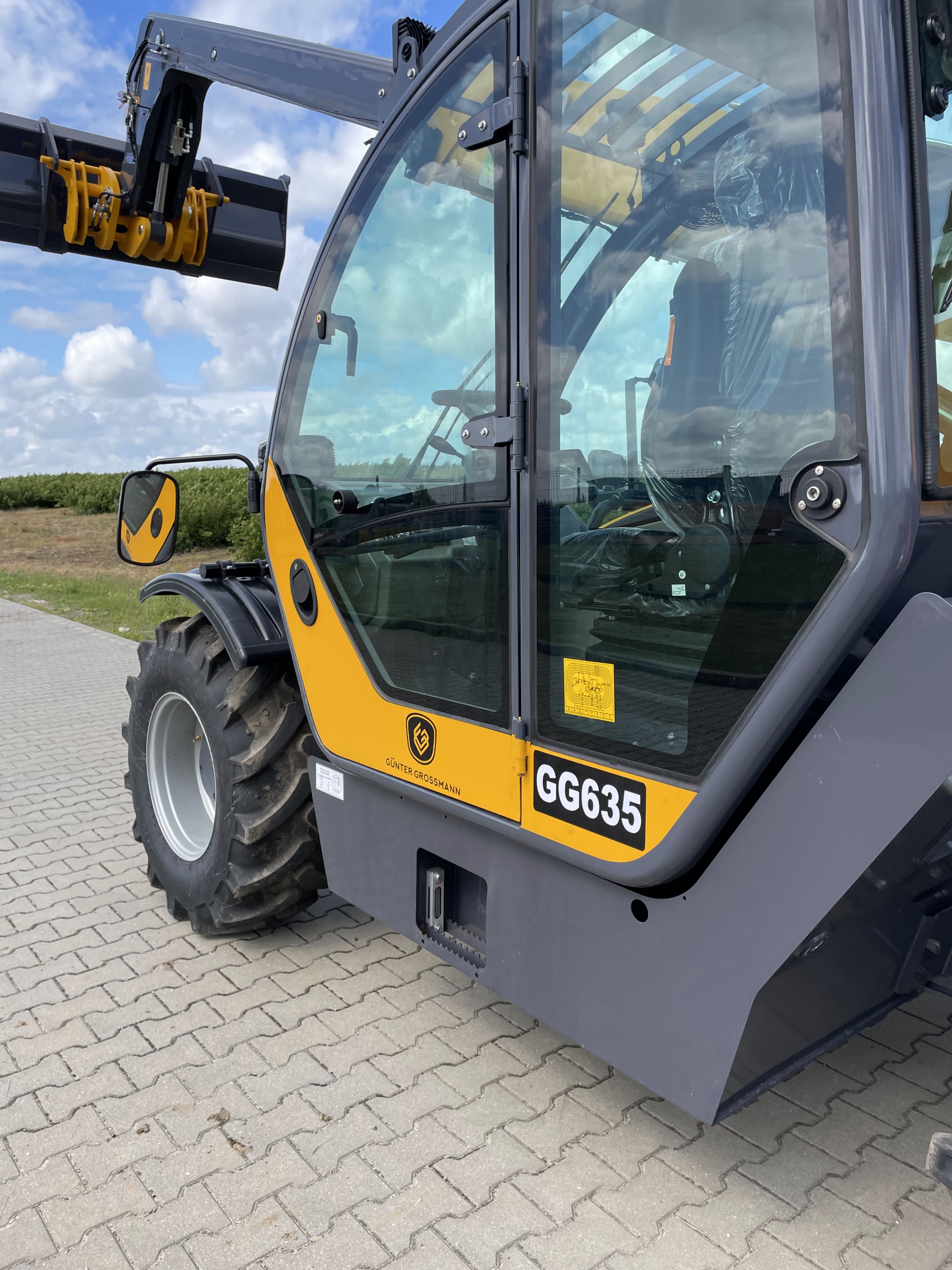

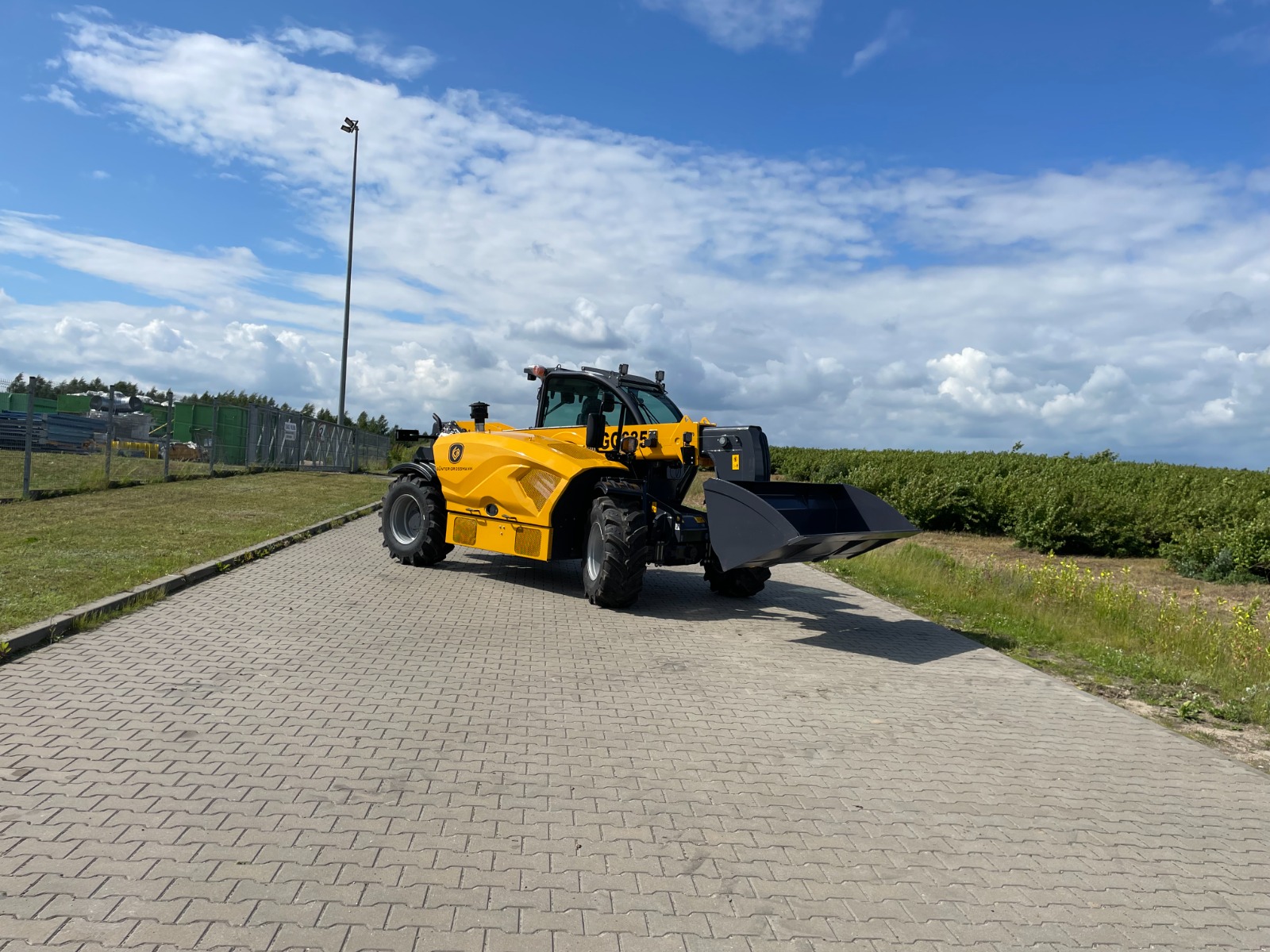

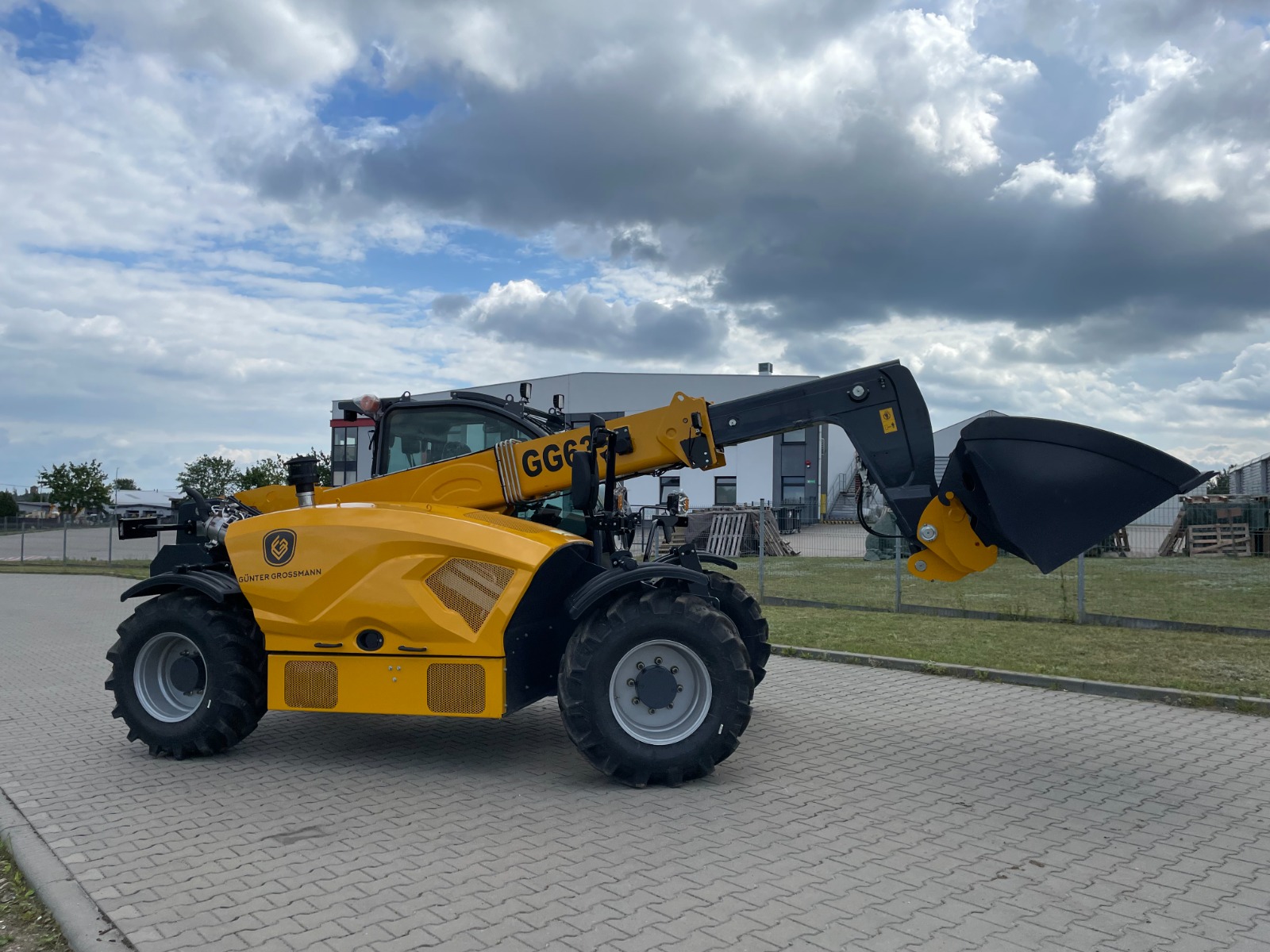

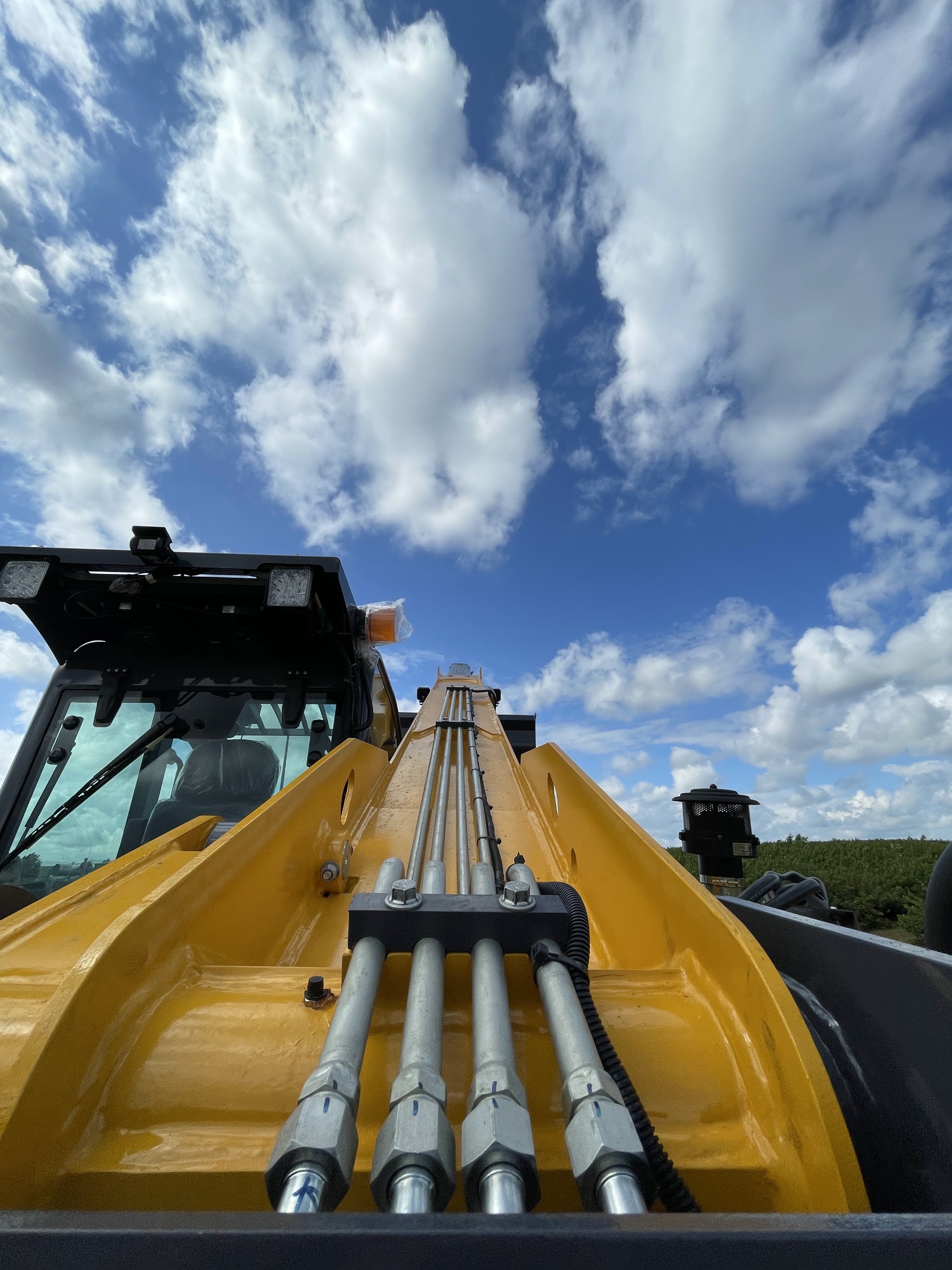

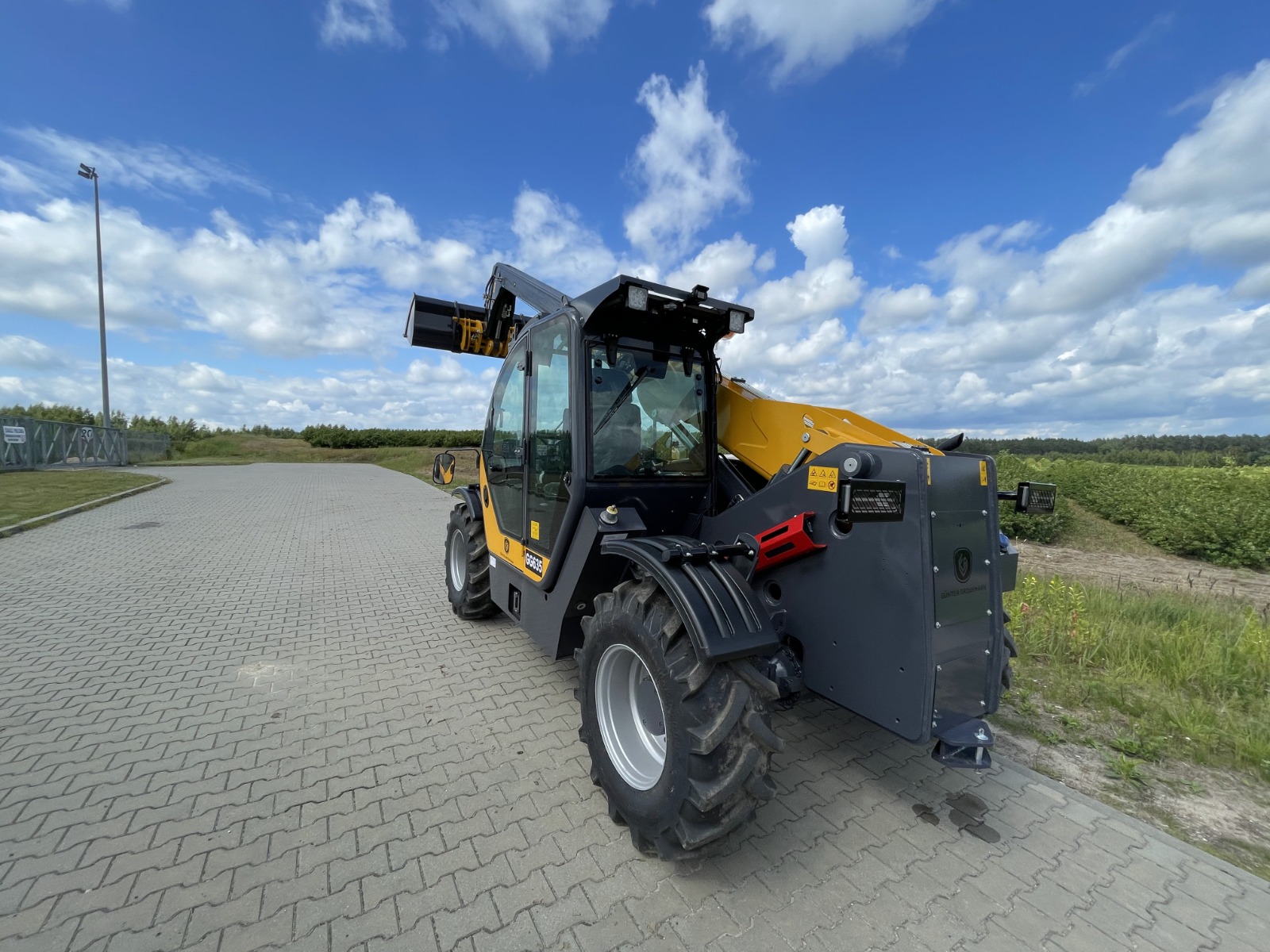

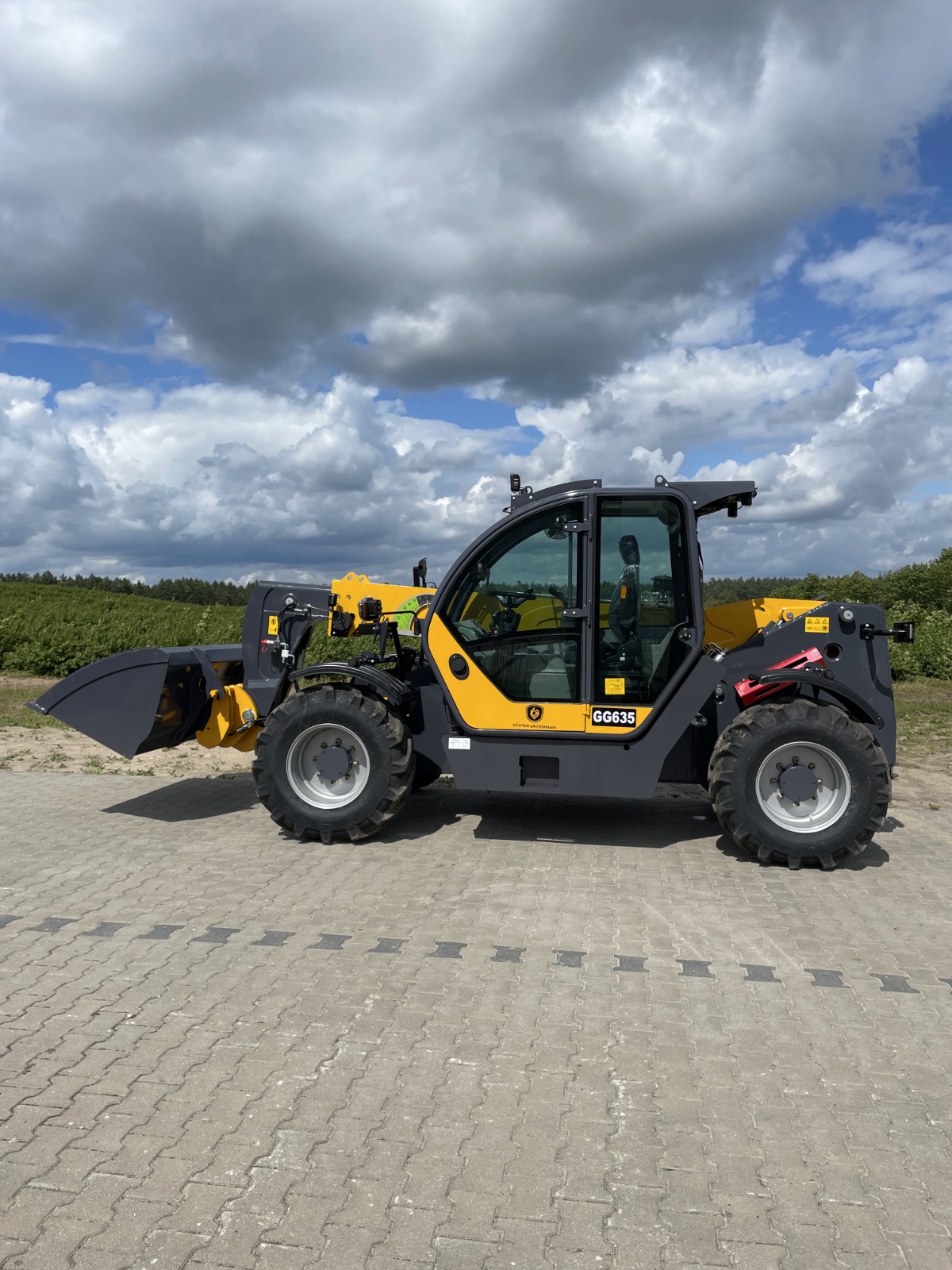

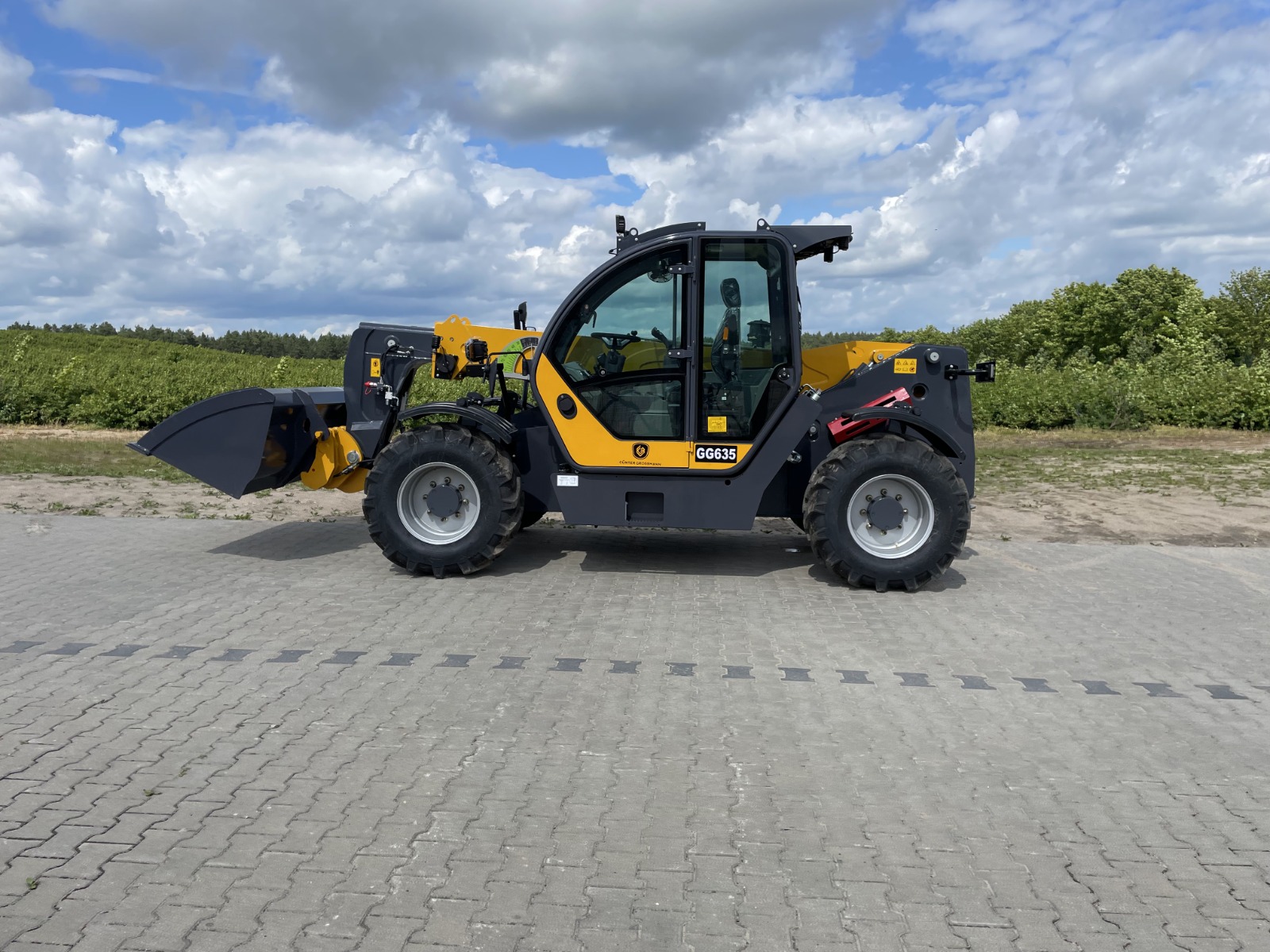

Gallery
