Loaders
GG016TO
Attention! Business customers with a VAT ID number pay net prices only, according to EU regulations.
Including:
Check out the offer
Technical Data
Specification
Bucket capacity:
0,8 m3
Weight:
4000kg
Engine:
Yunnei DEF20CDF4
Rated power:
45 kW 61 hp
Rated engine speed:
2400 rpm
Number of cylinders:
4
Cooling:
water-cooled
Standard tire:
20.5/70-16
Optional tires:
33X16,5-15
Hydraulic pressure:
16Mpa
Hydraulic oil flow:
60l/min
Max. travel speed:
18-28 km/h
Working range
Load capacity:
1600 kg
Wheelbase:
2280 mm
Dimensions
Length:
5480 mm
Width:
1850 mm
Height:
2580 mm

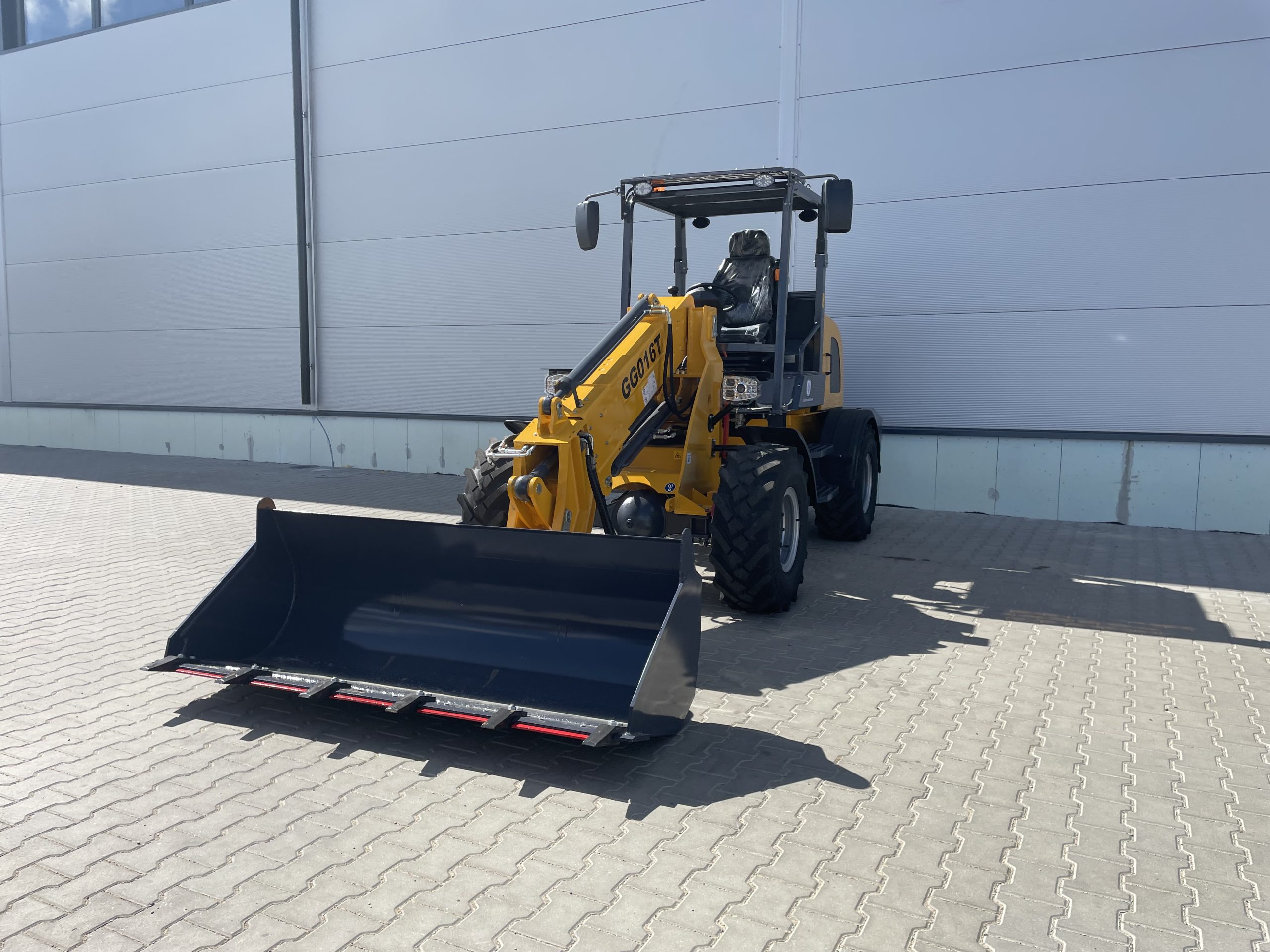

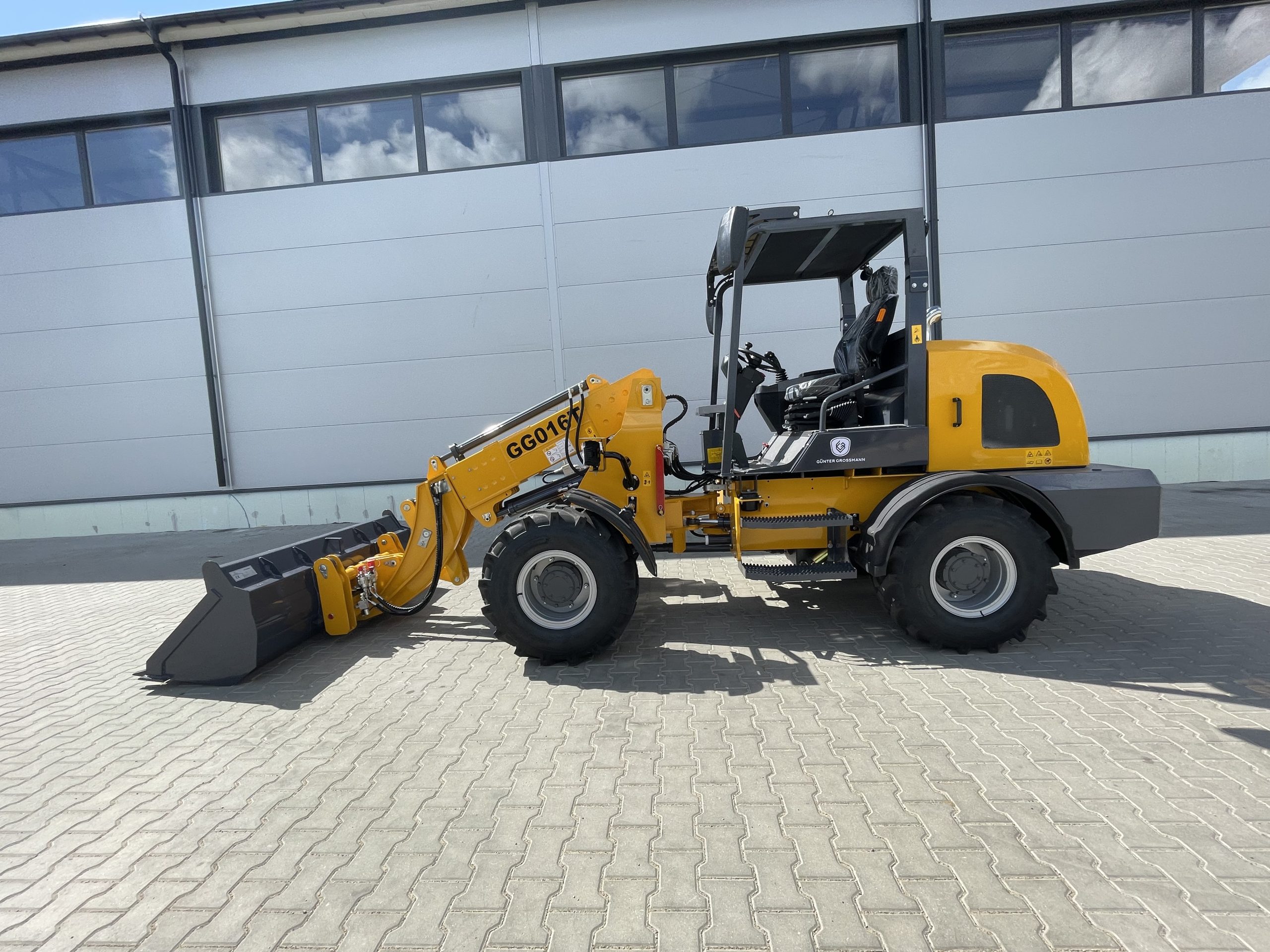

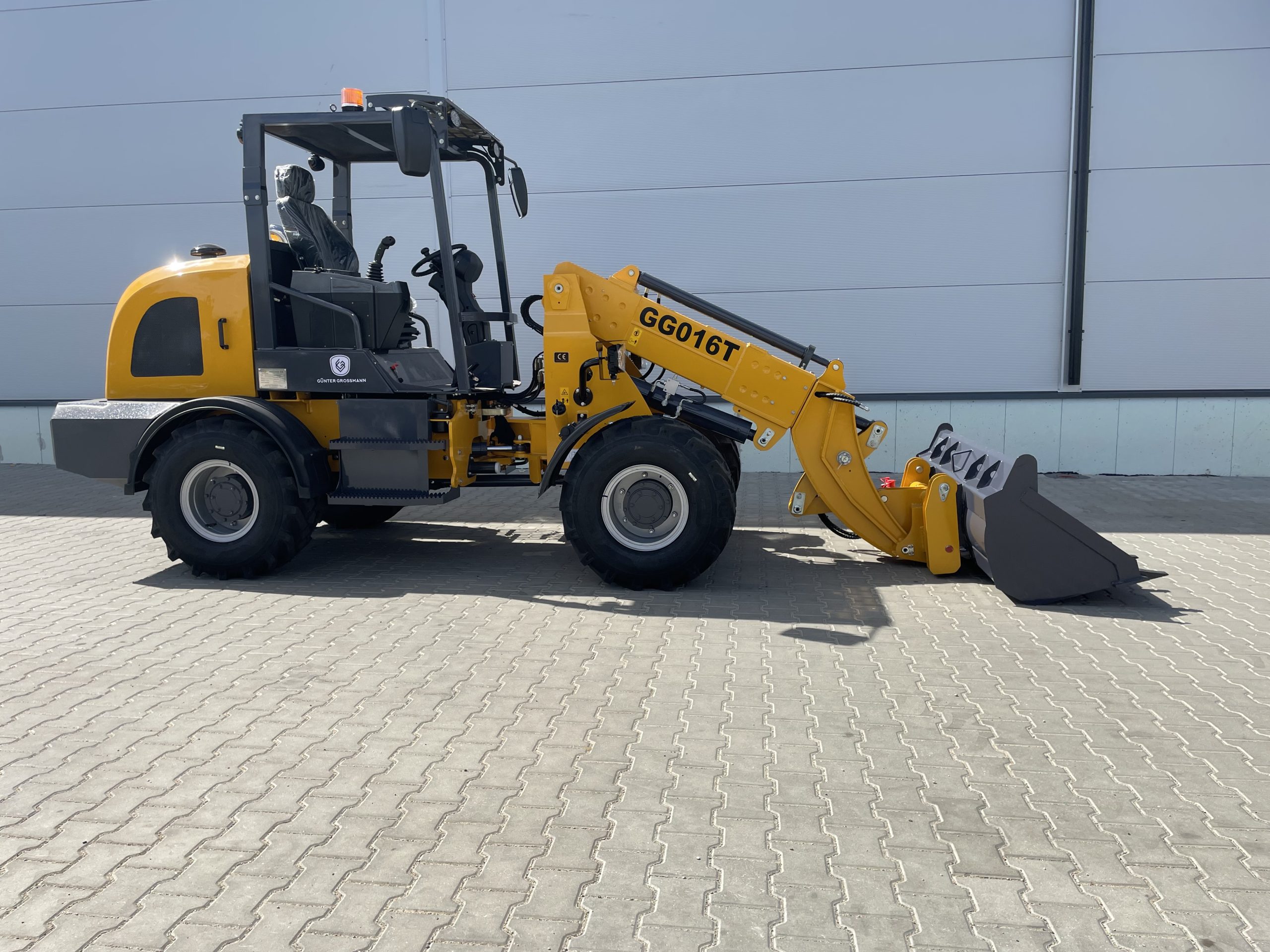

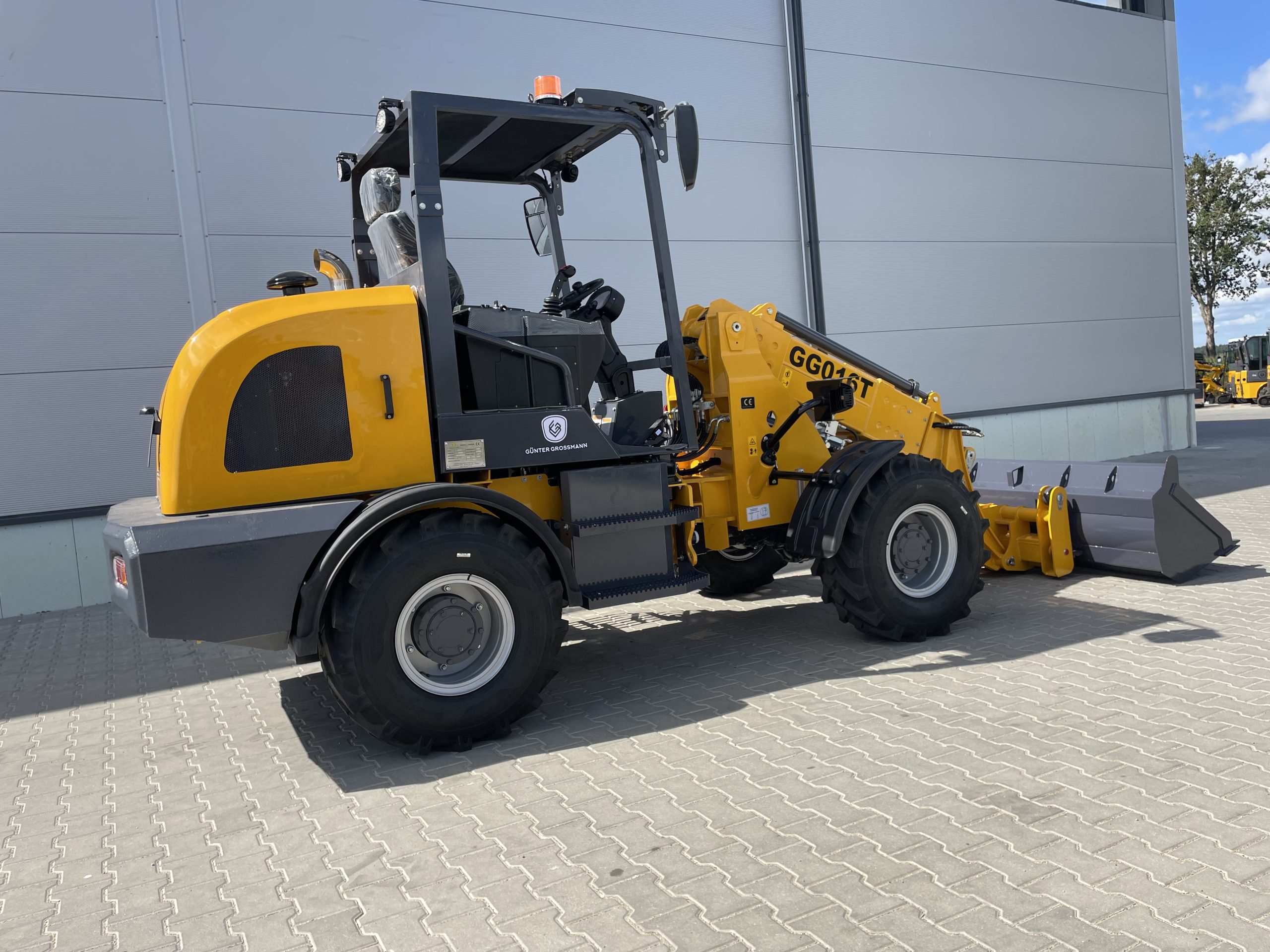

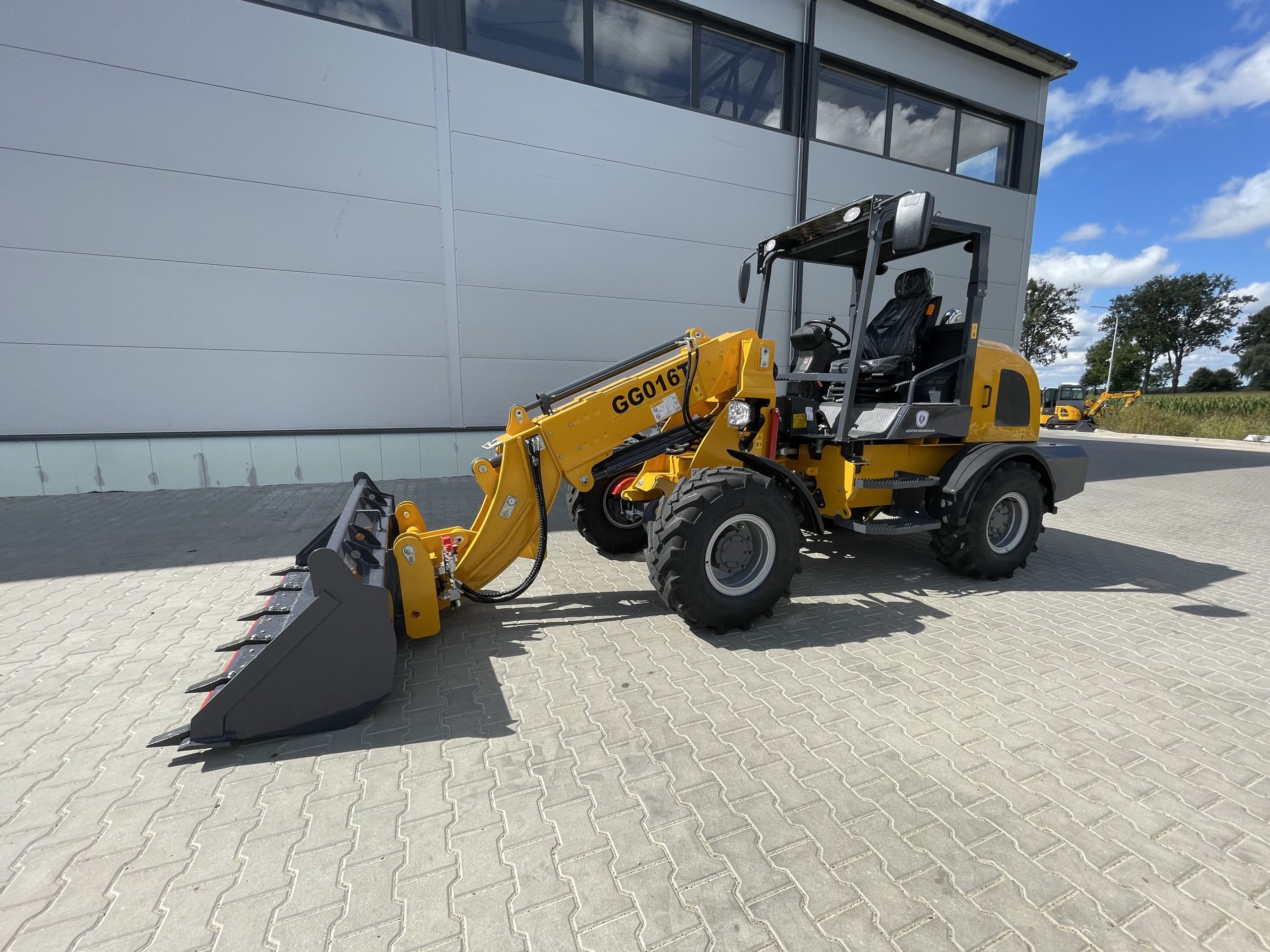

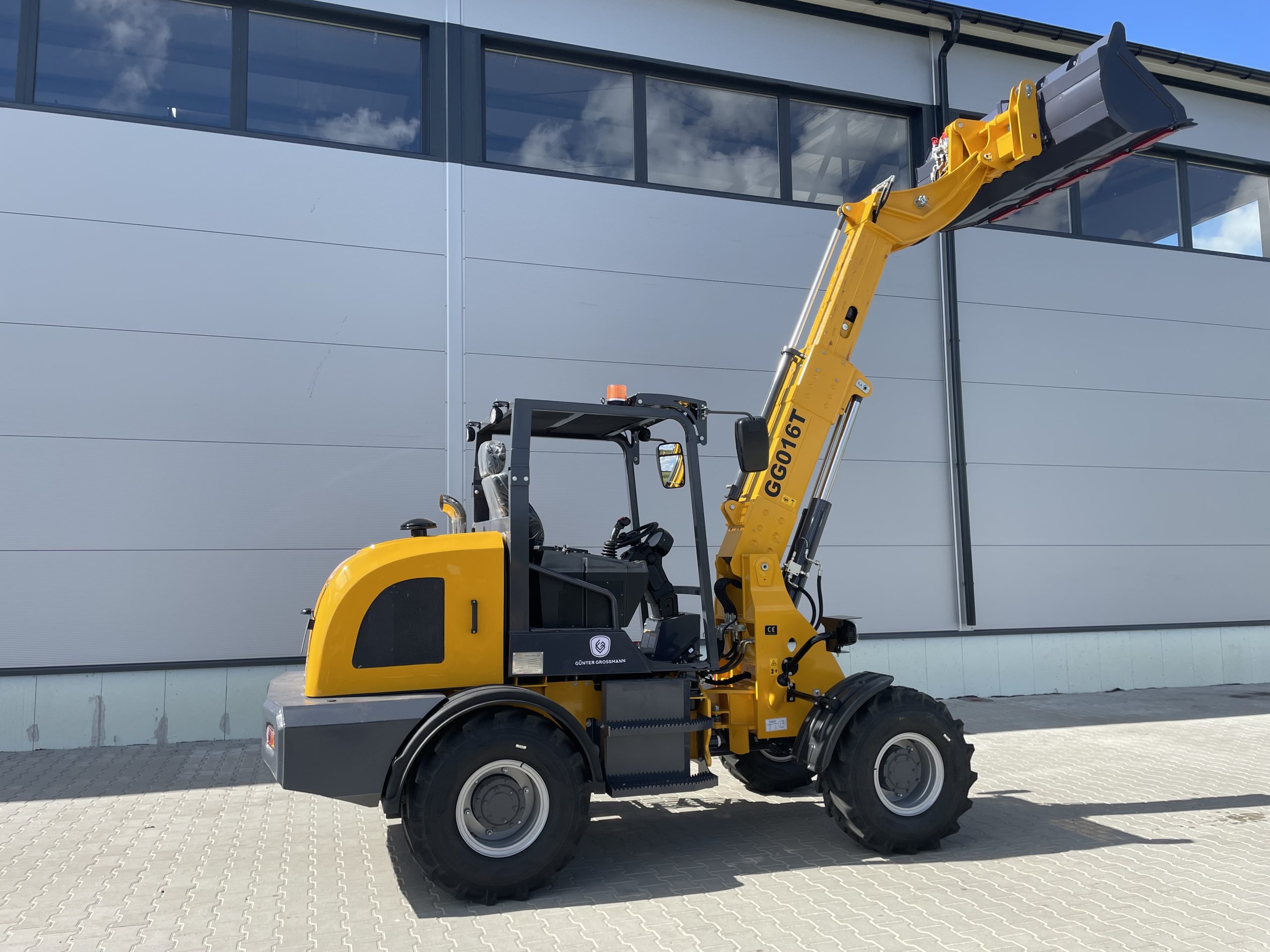

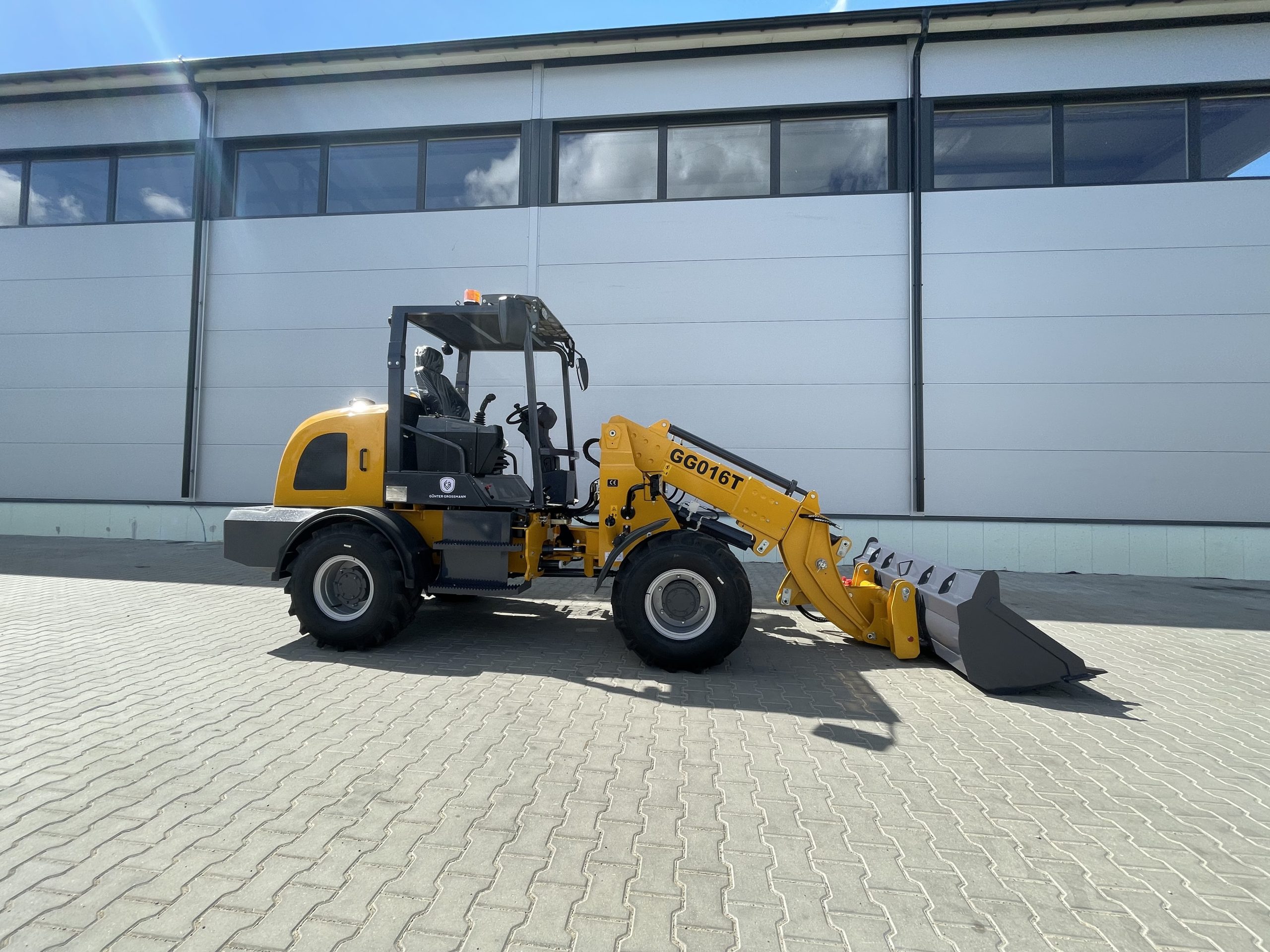

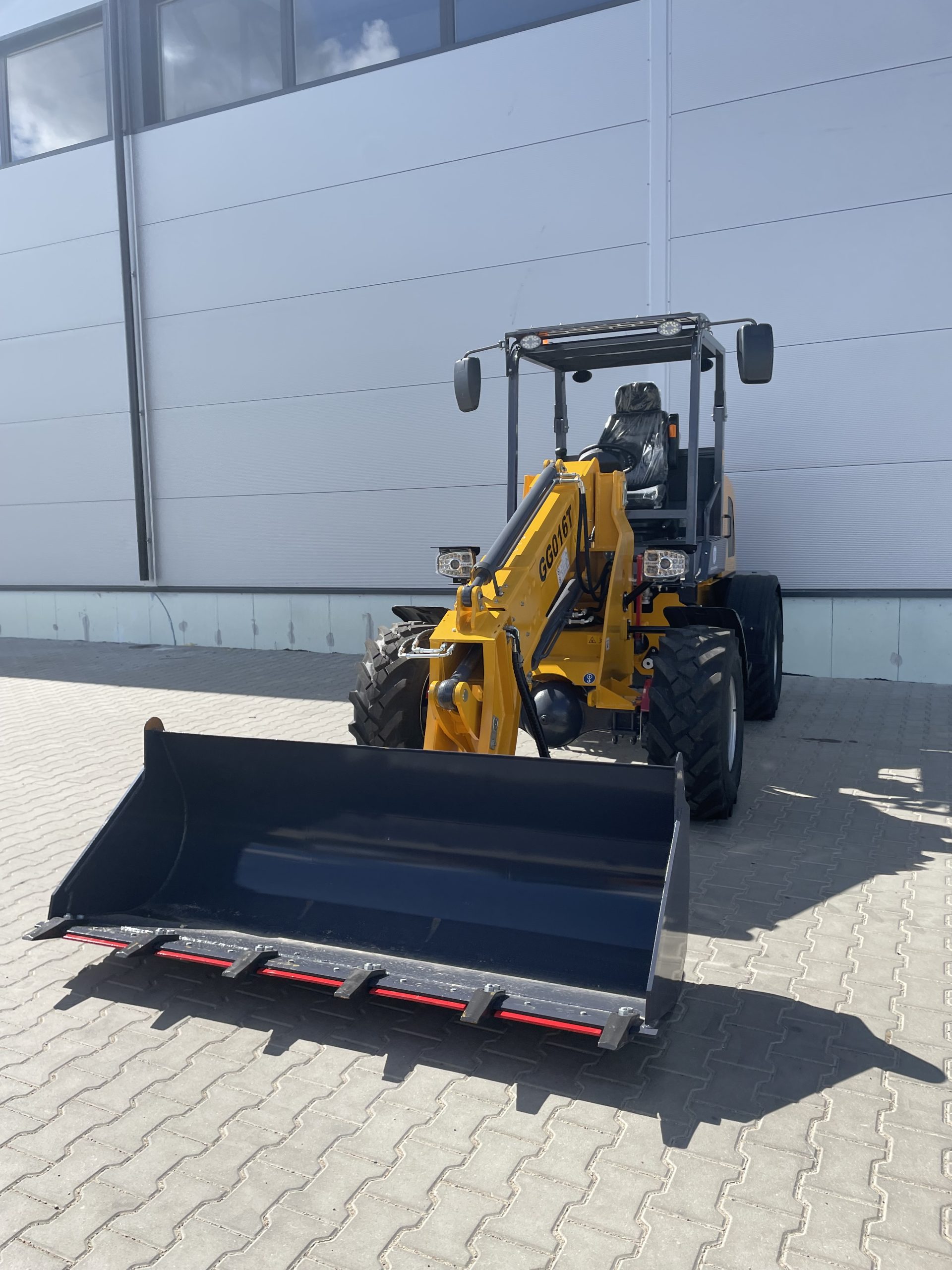

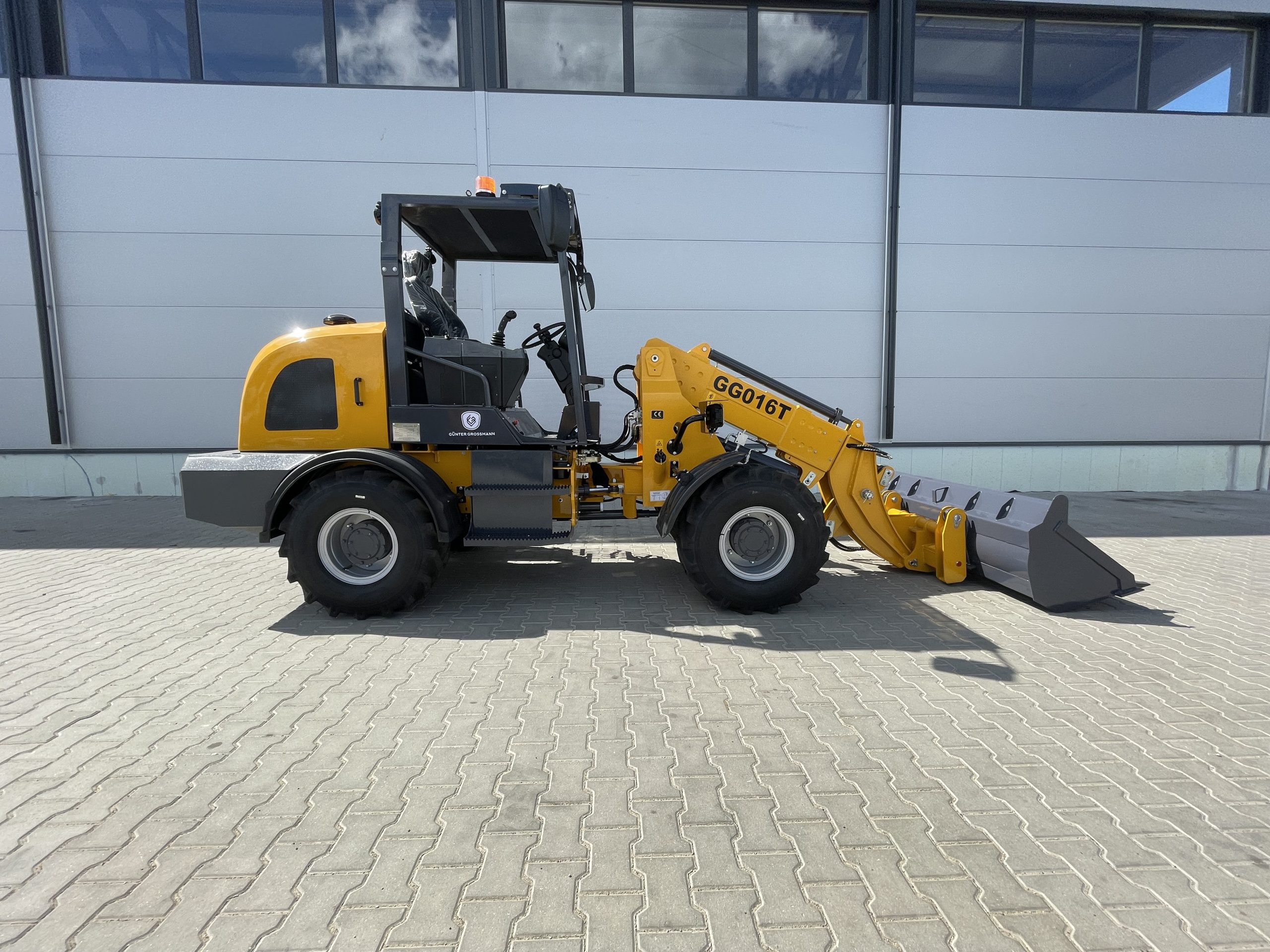

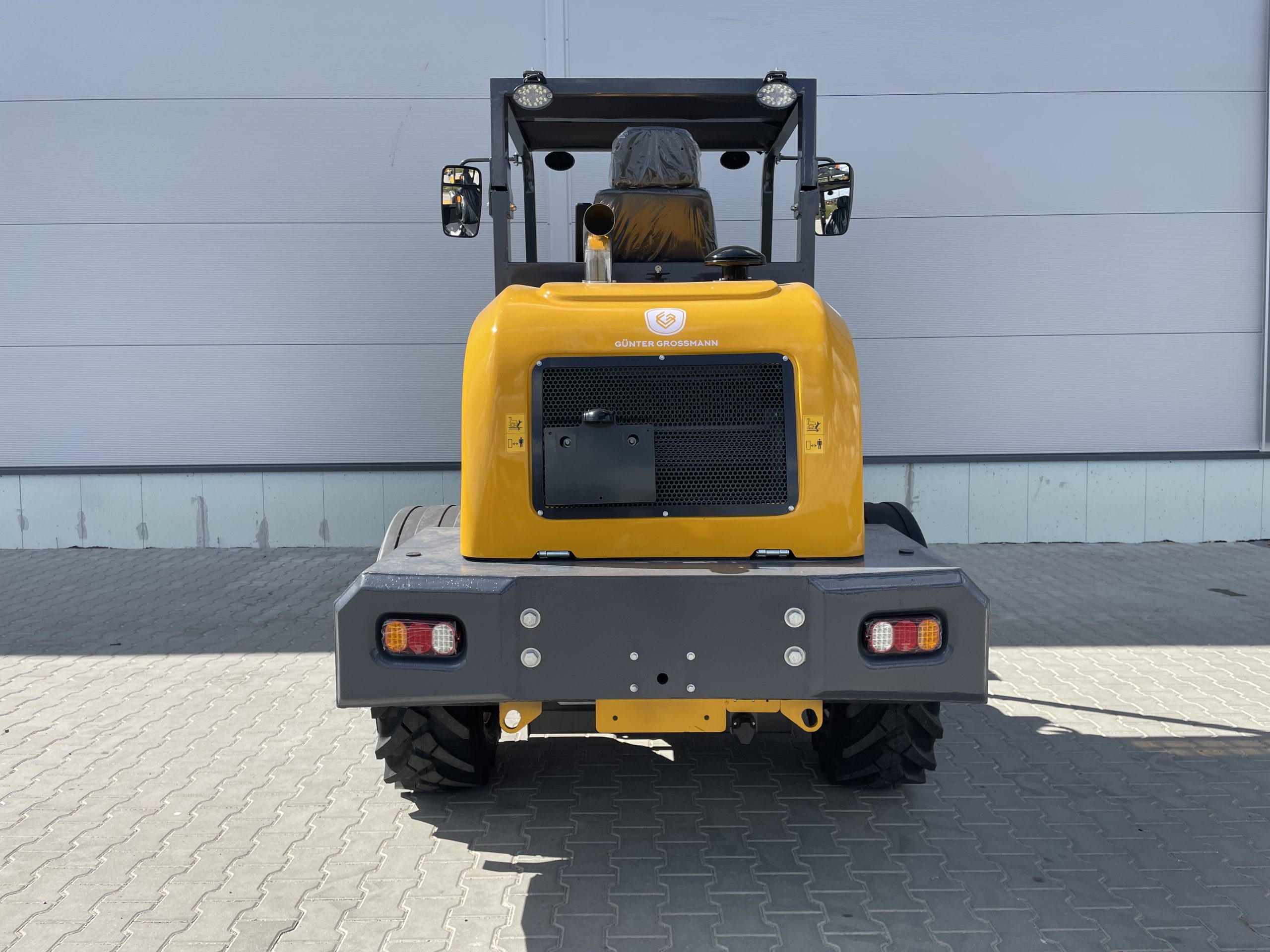

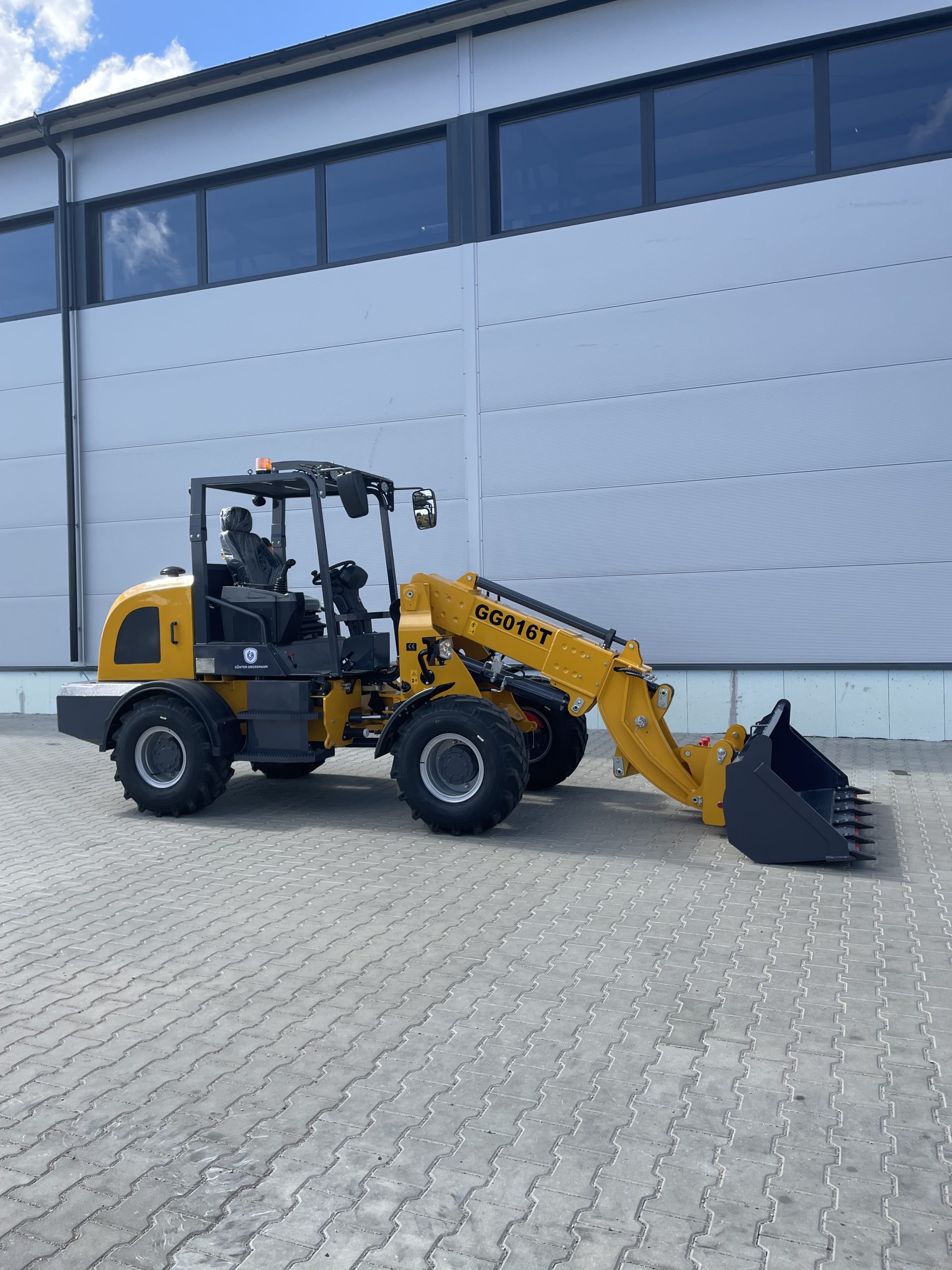

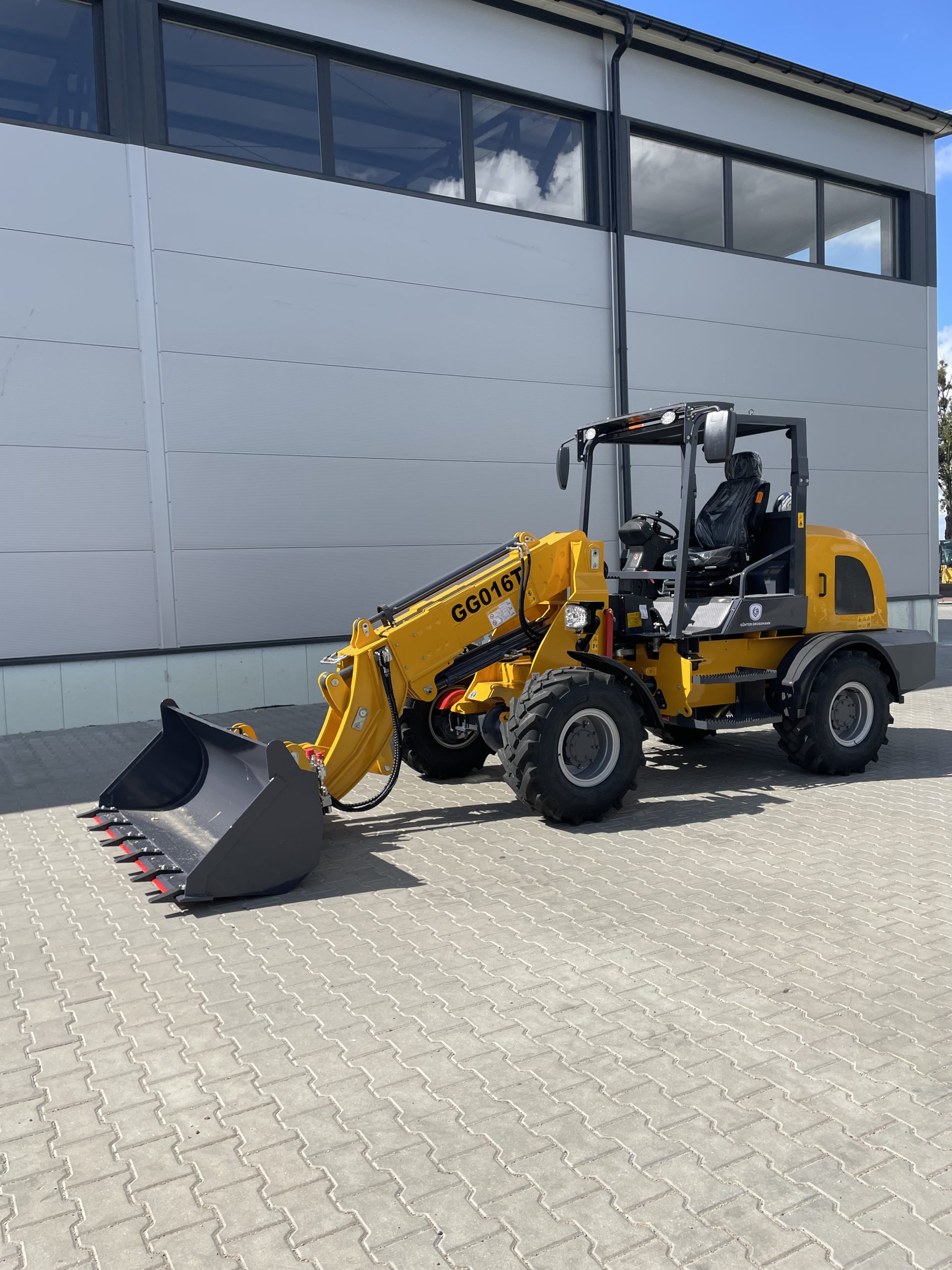

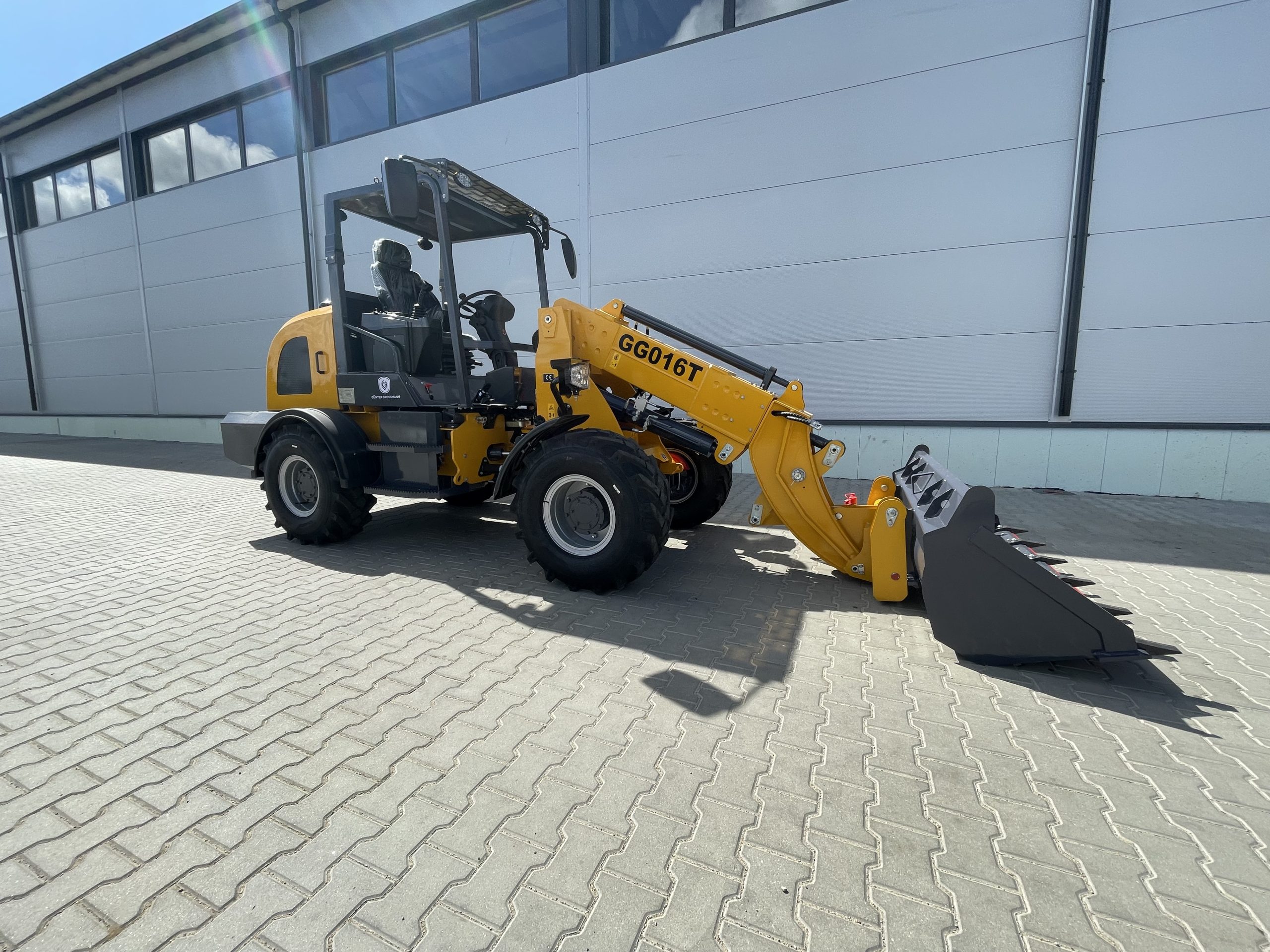

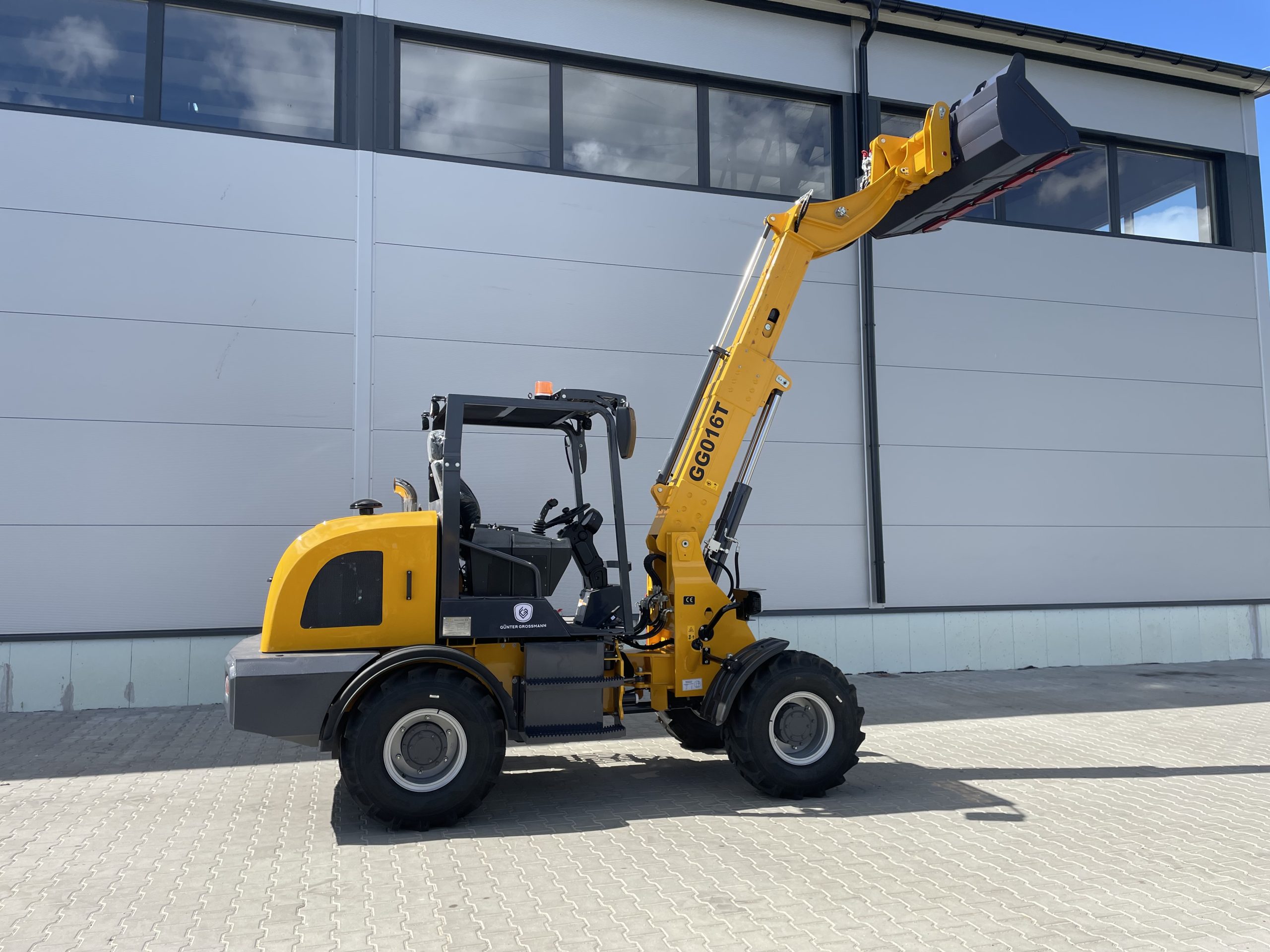

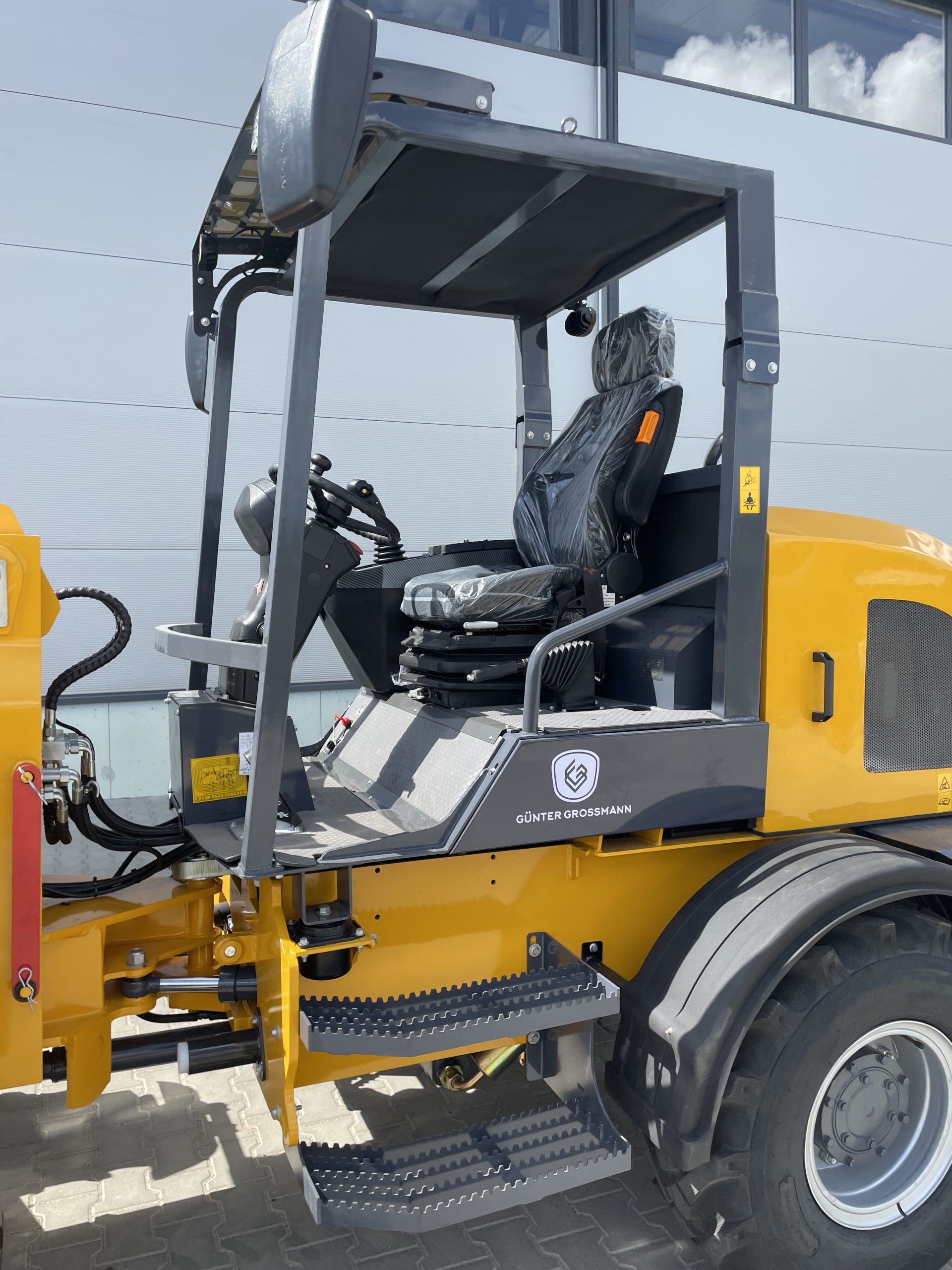

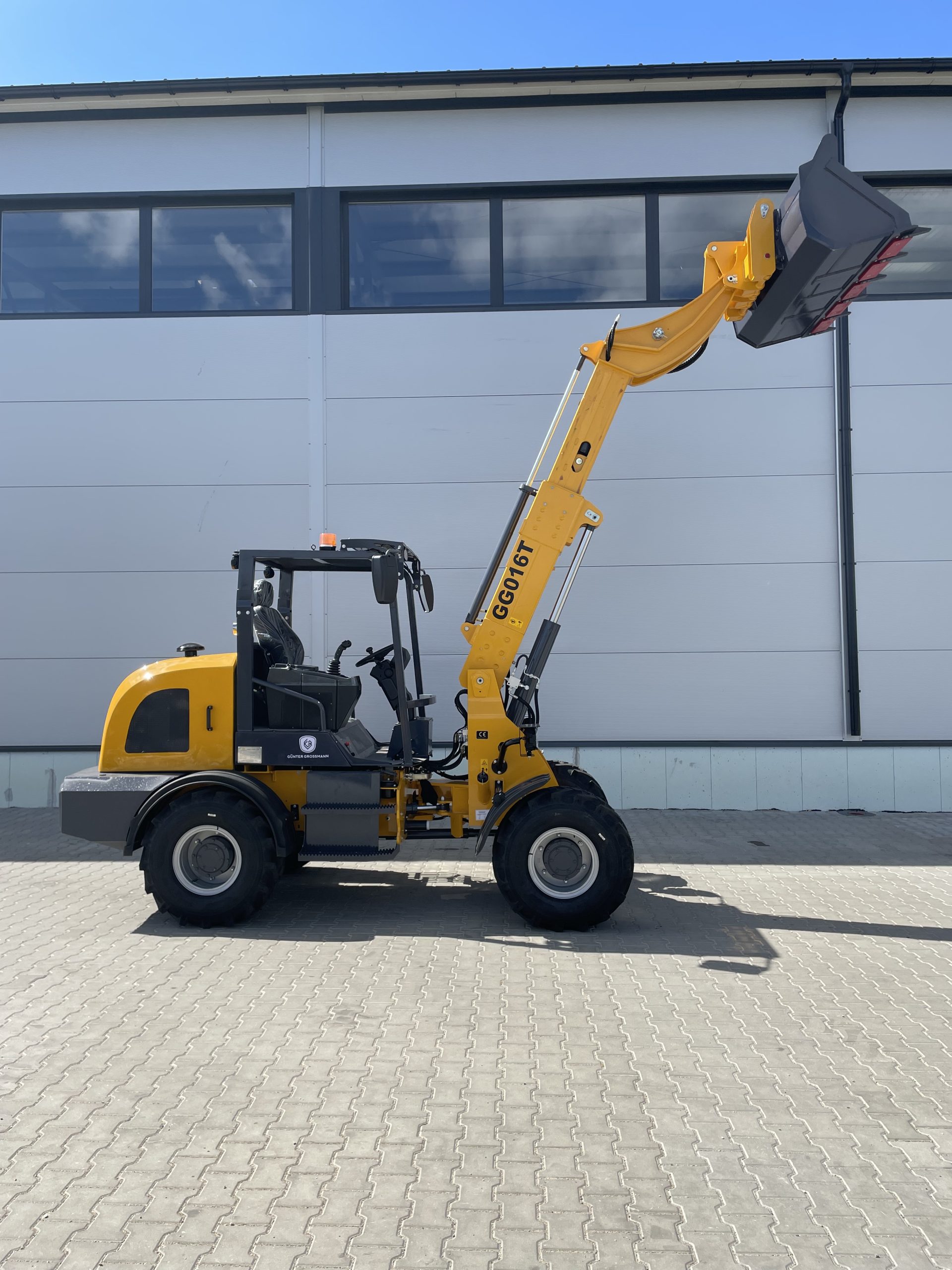

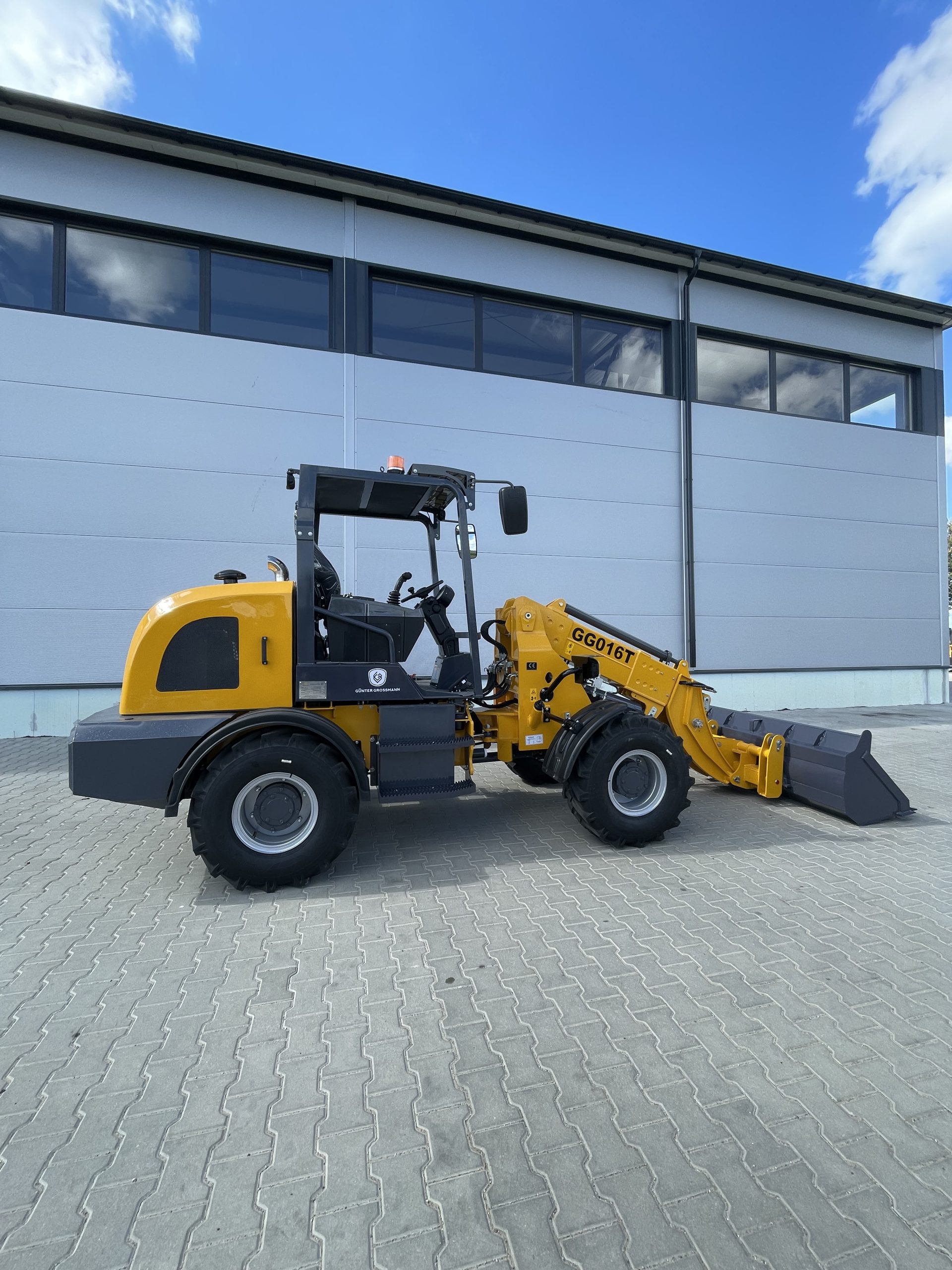

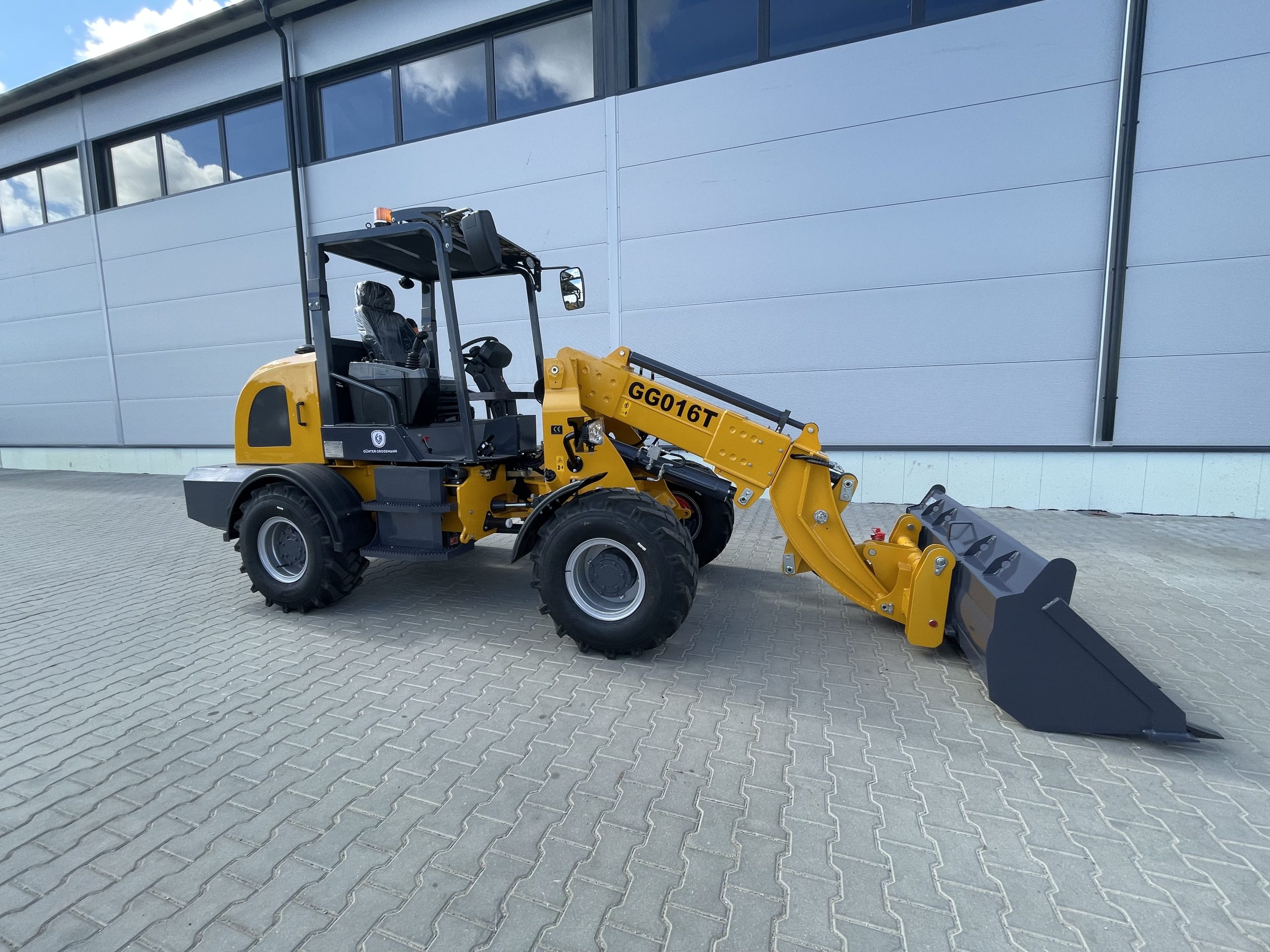

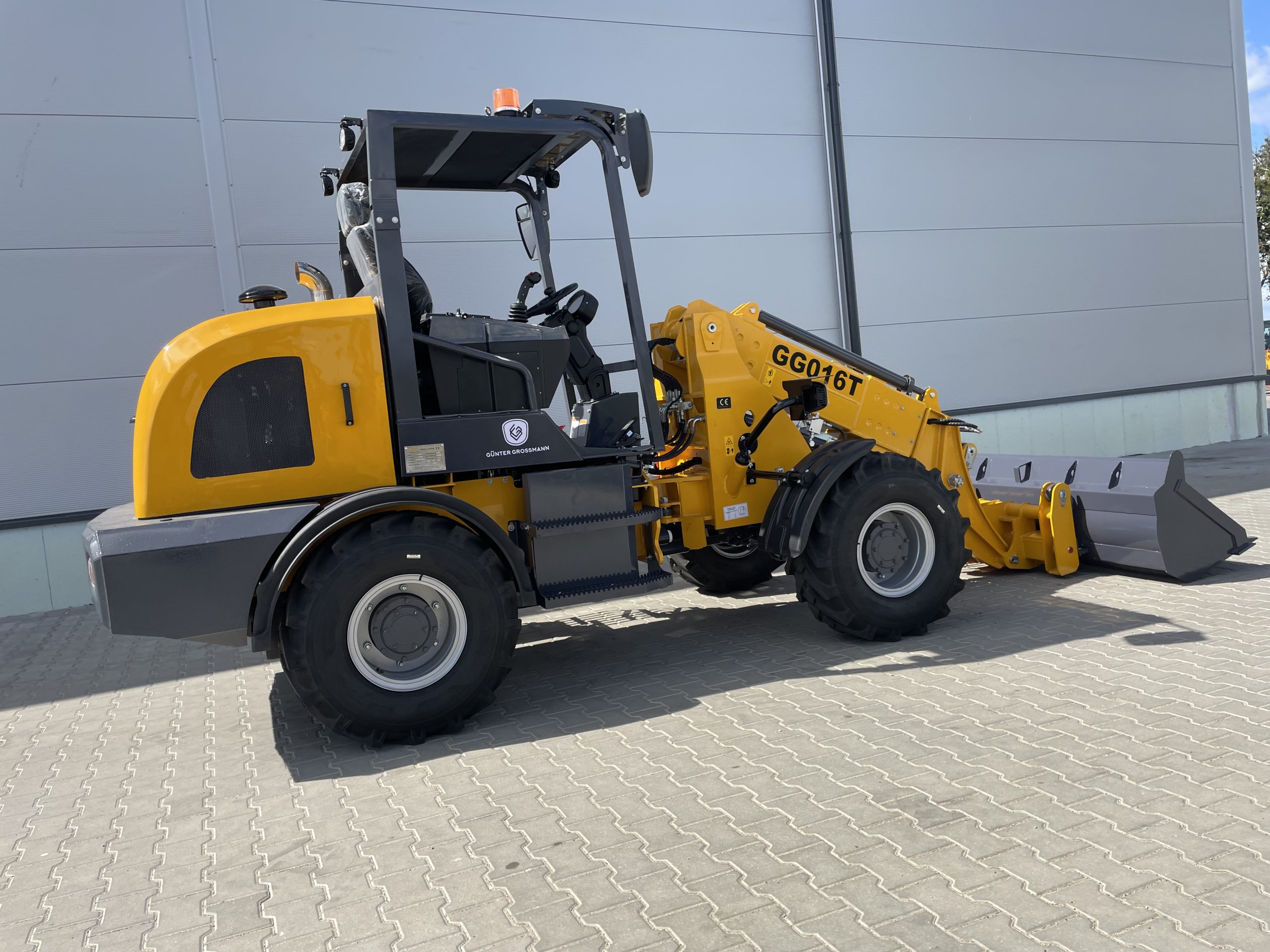

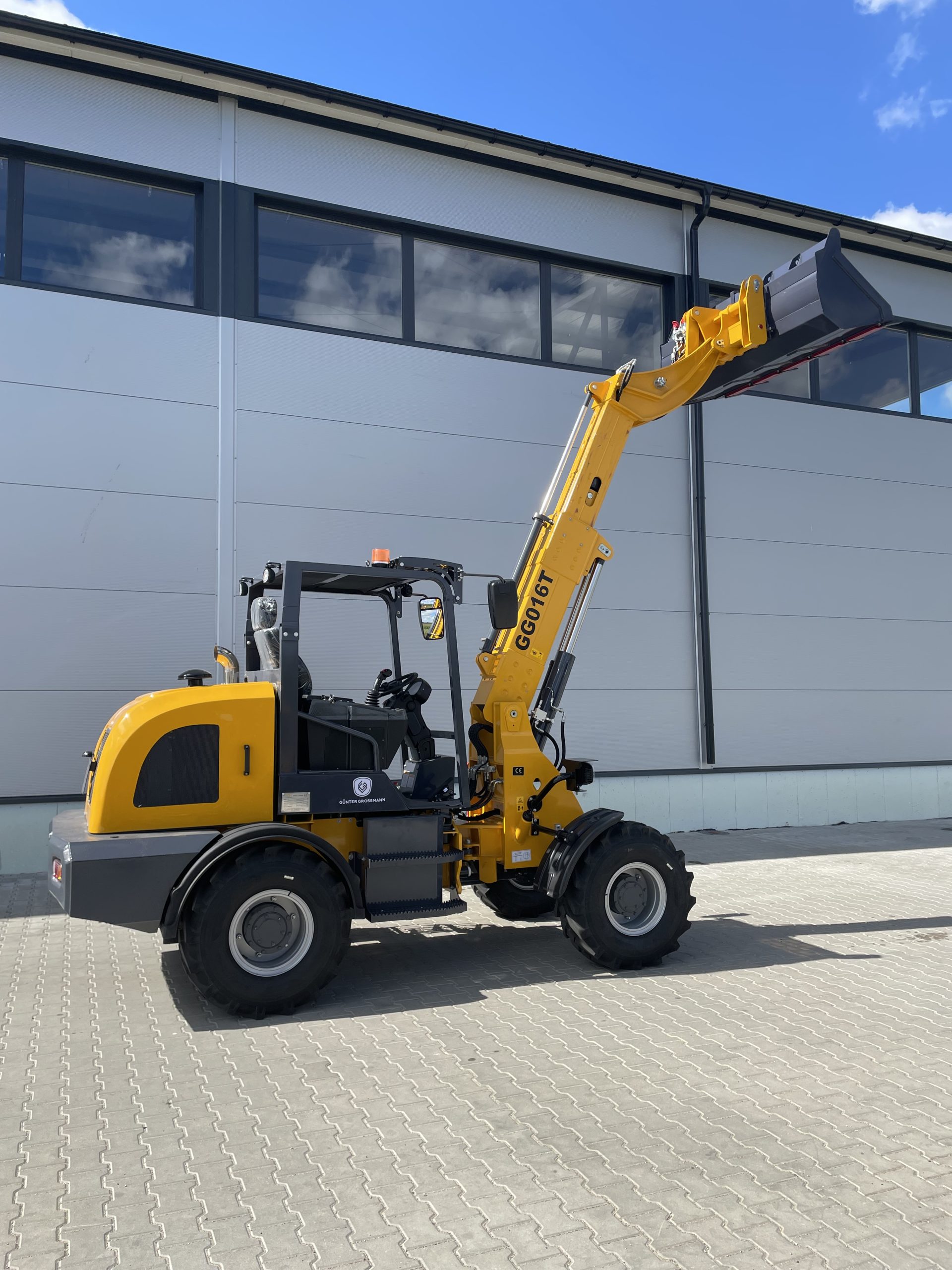

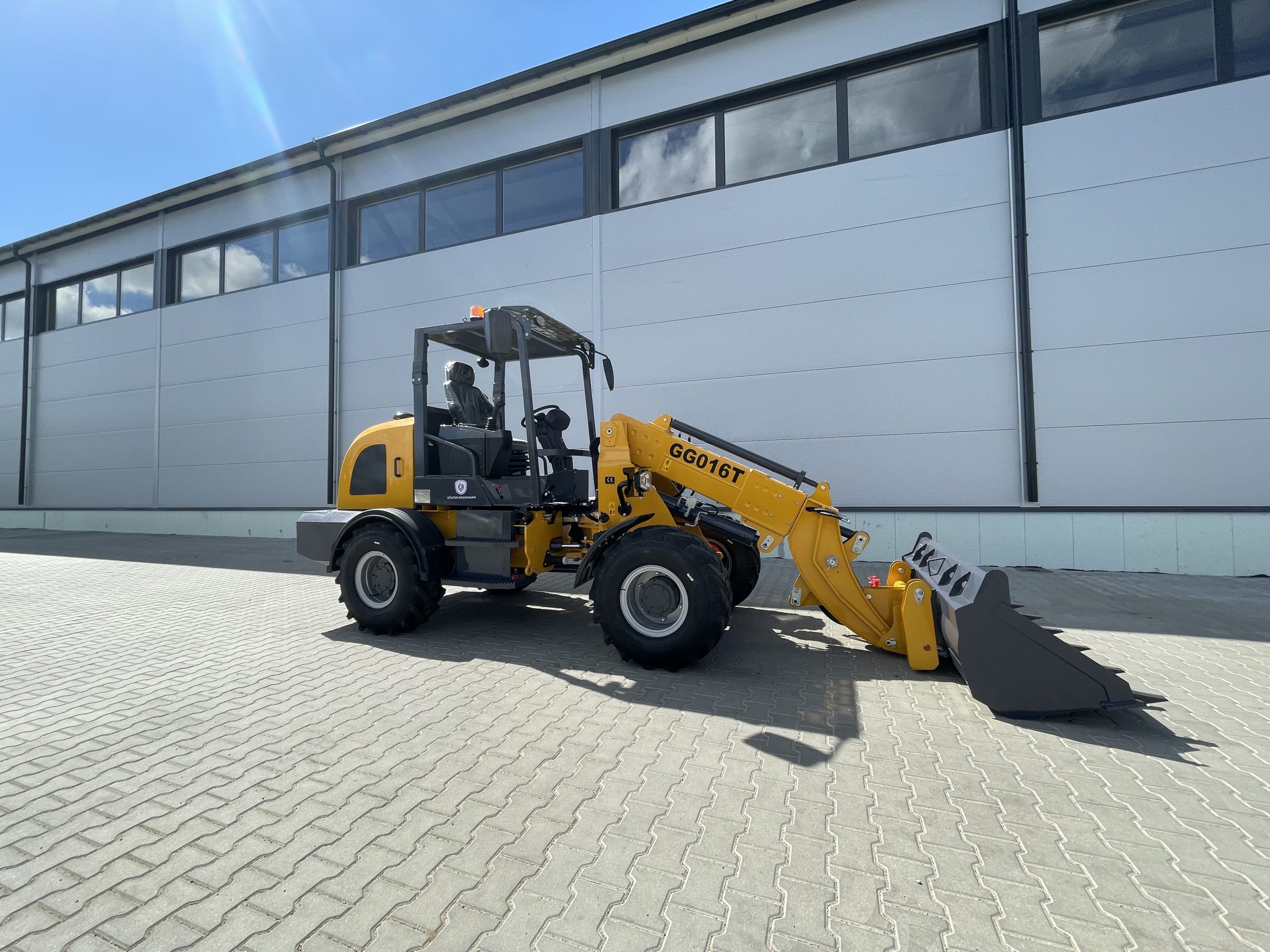

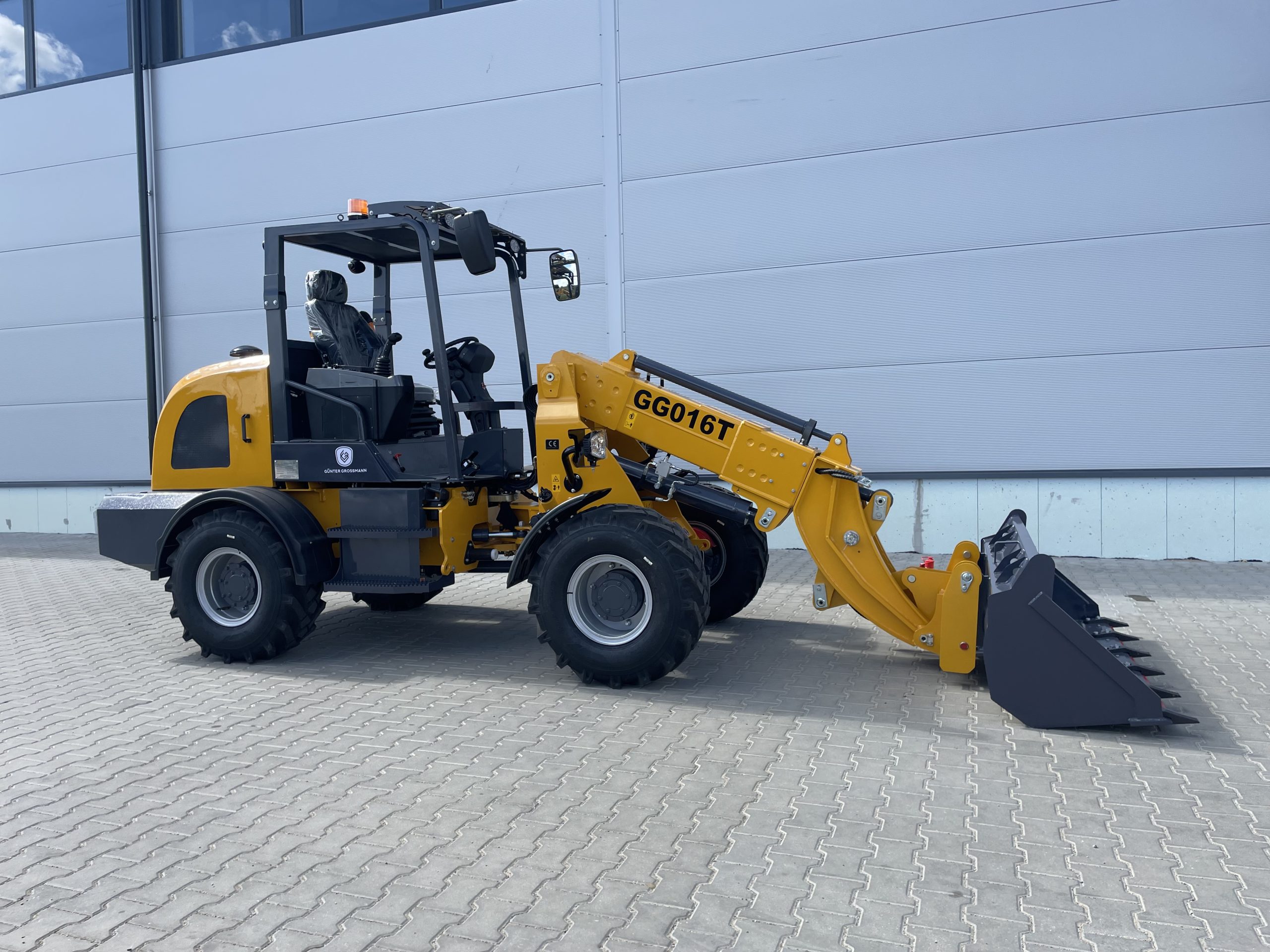

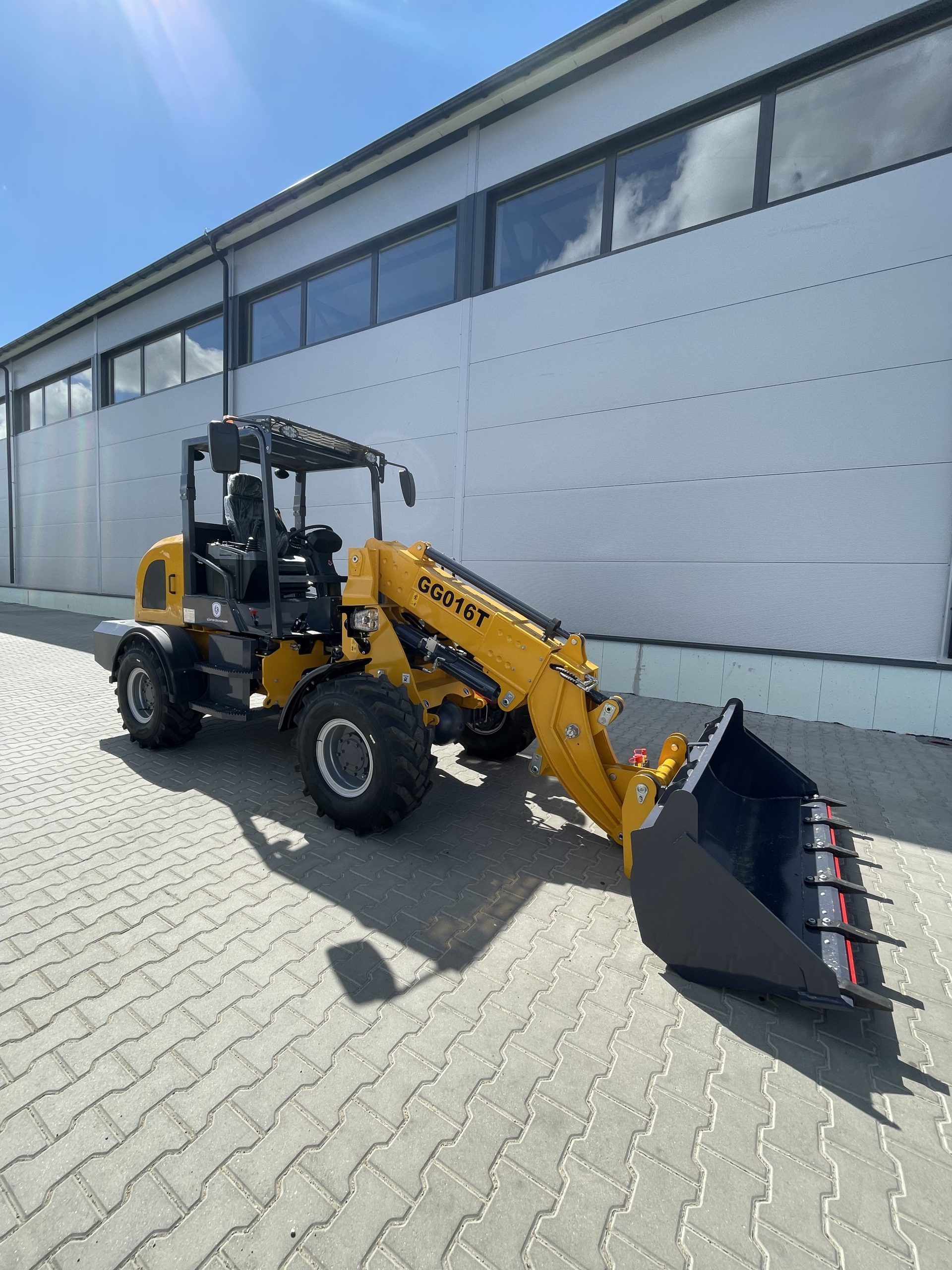

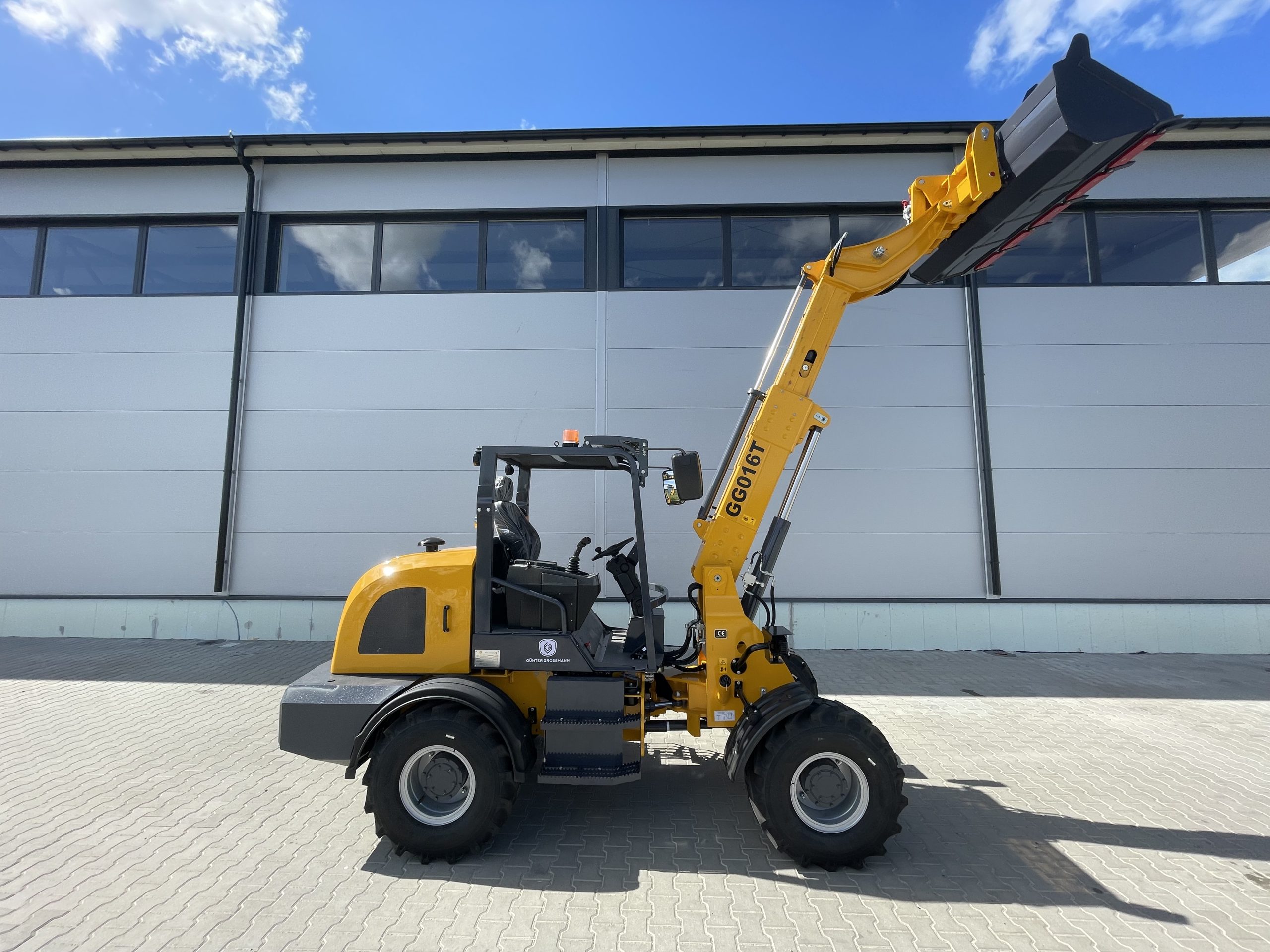

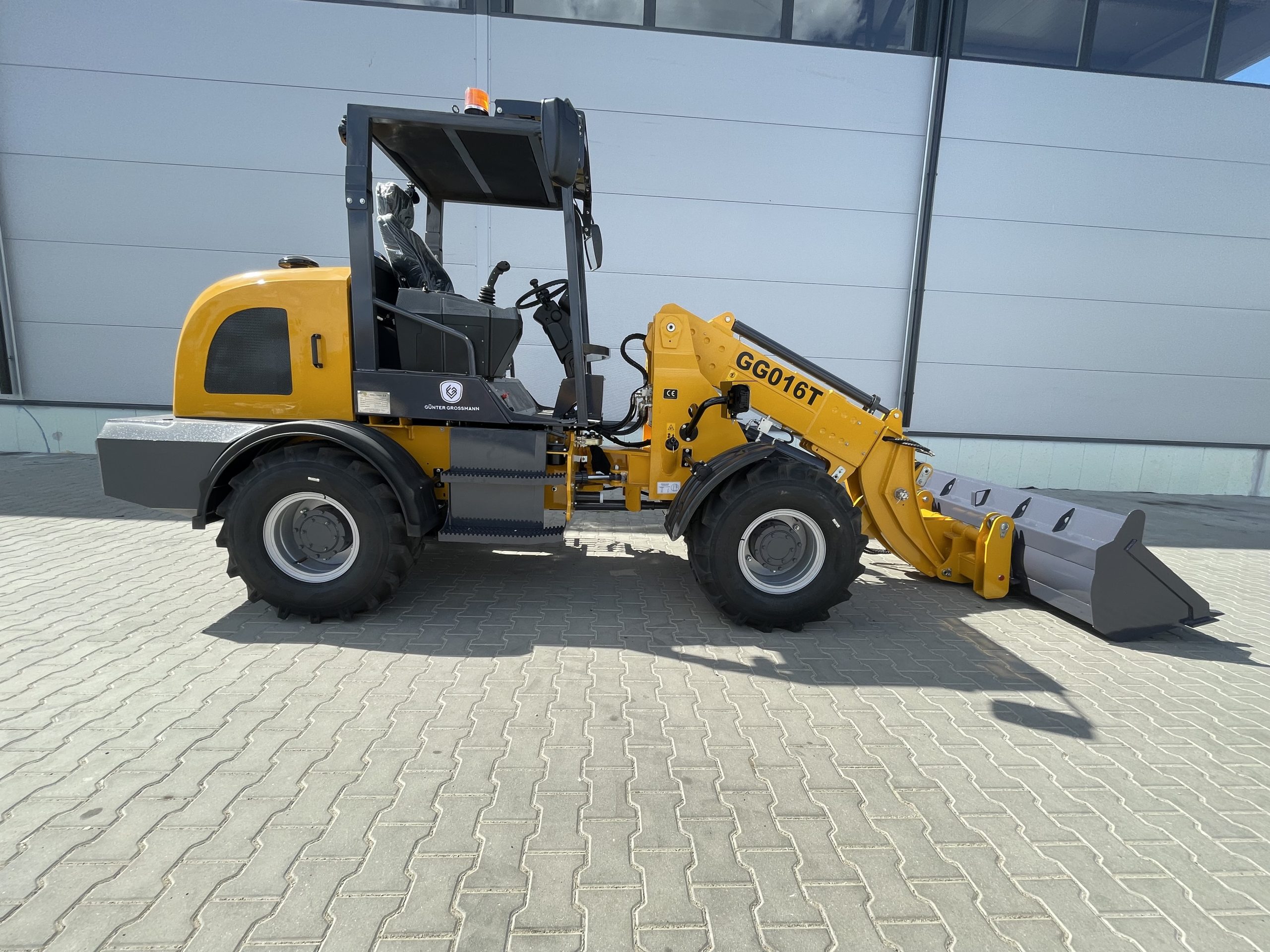

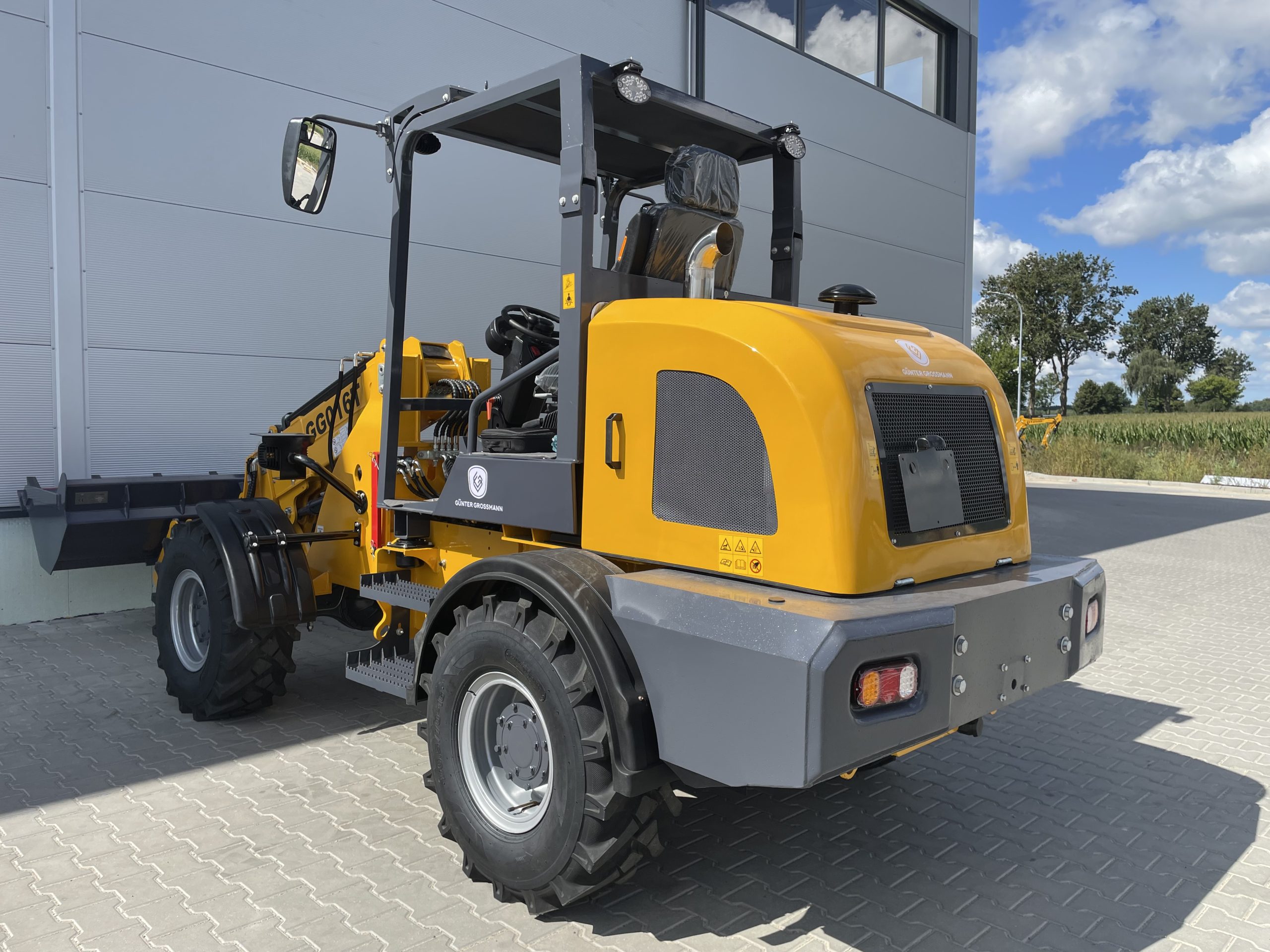

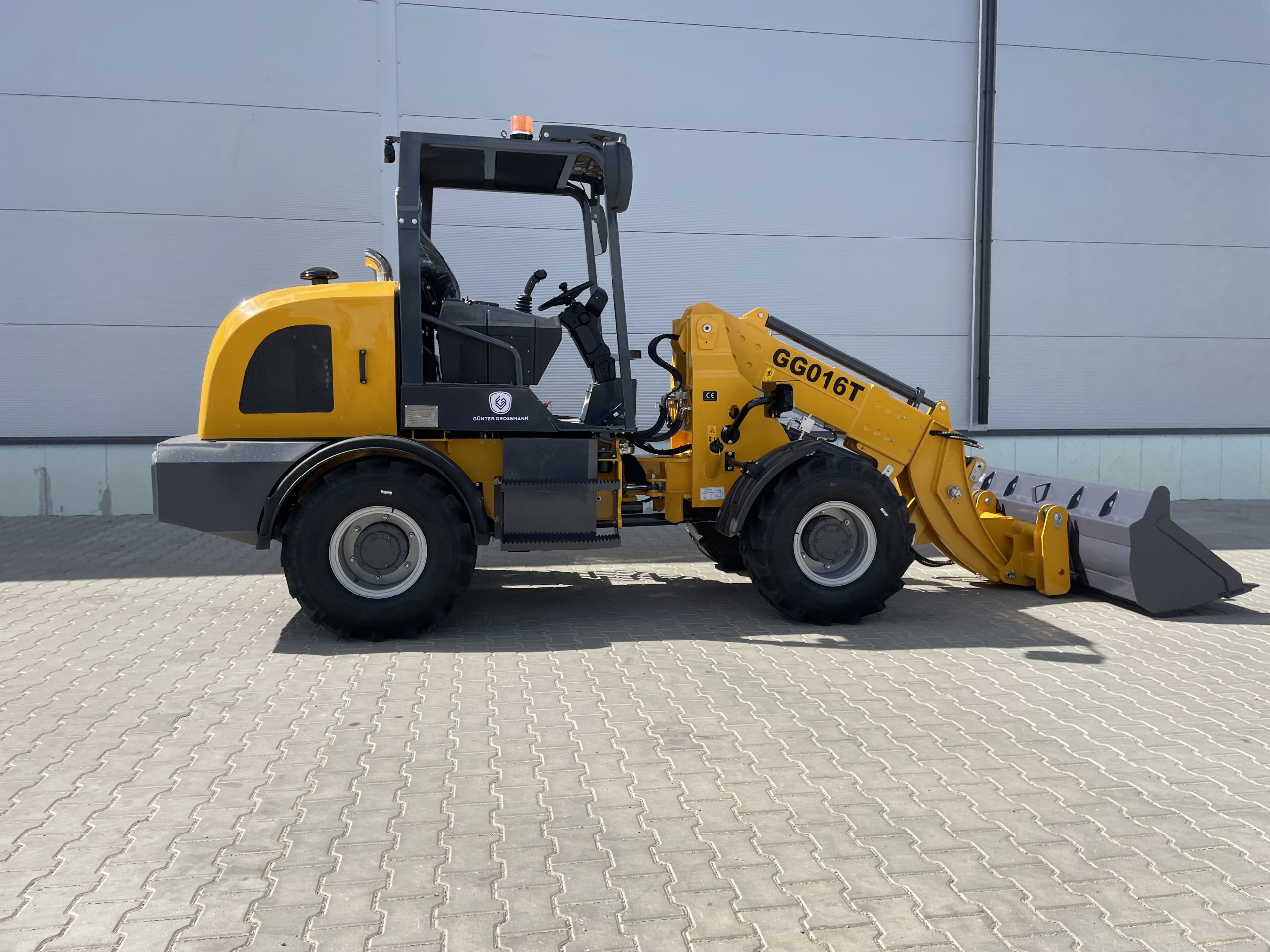

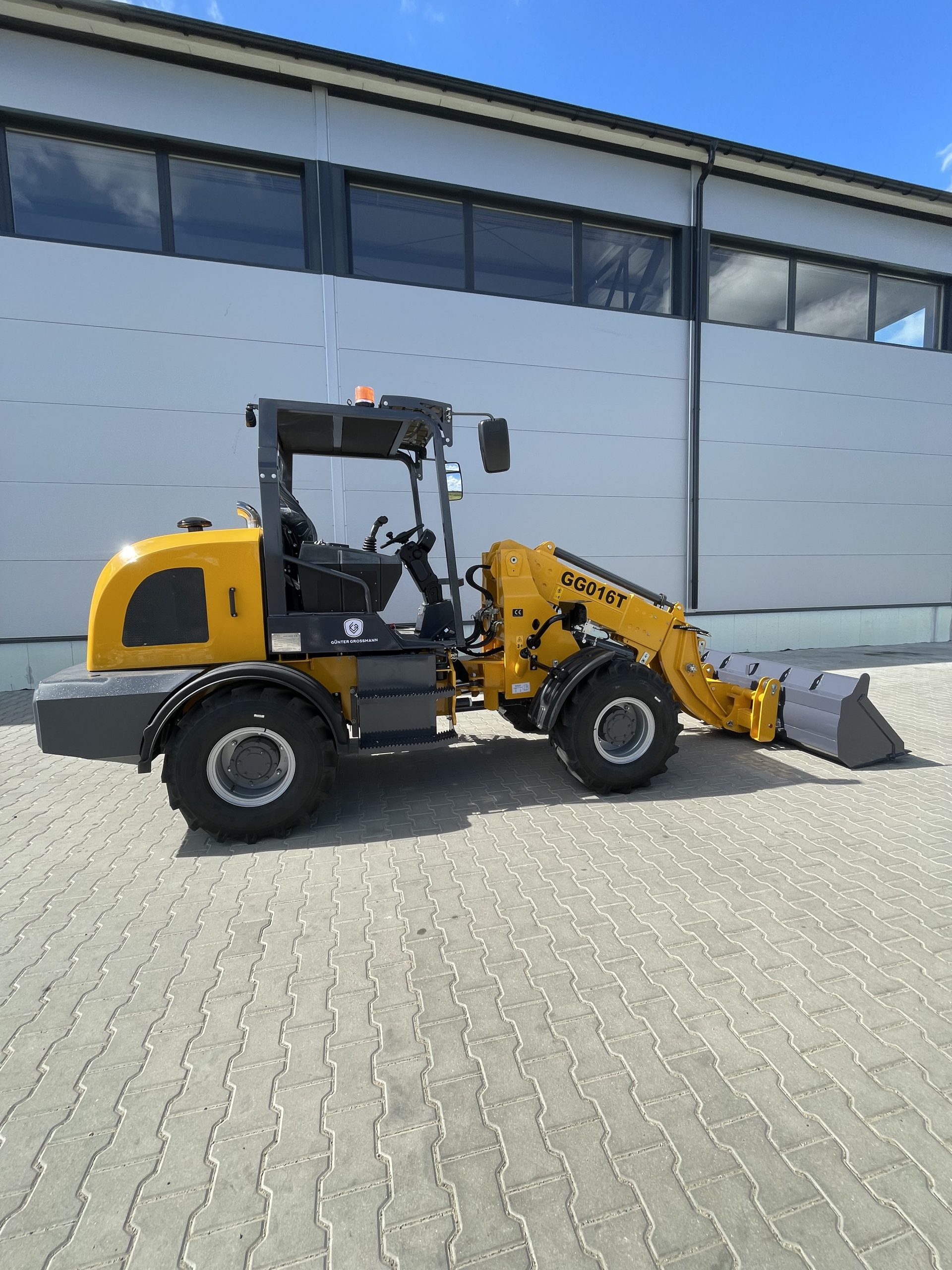

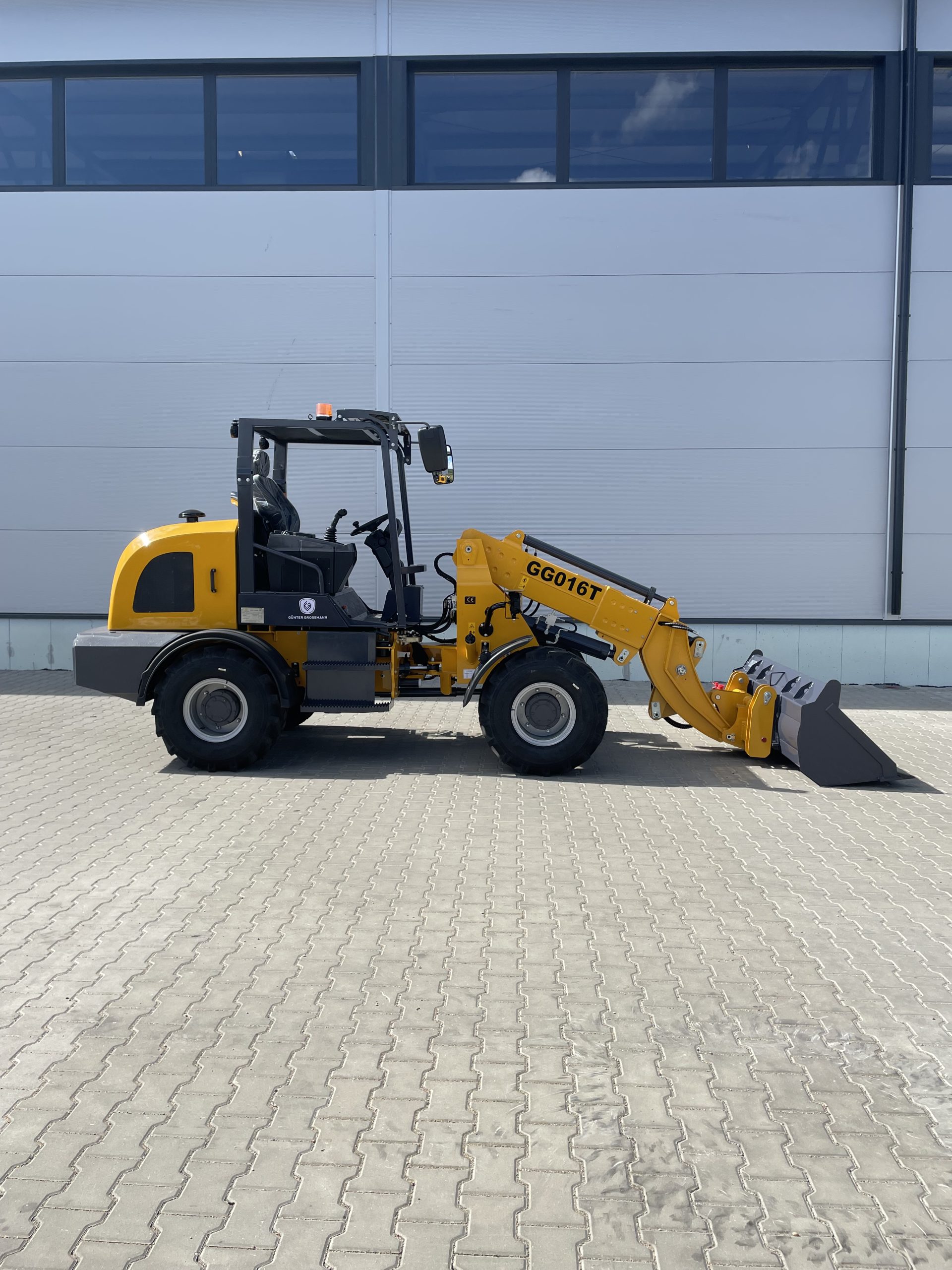

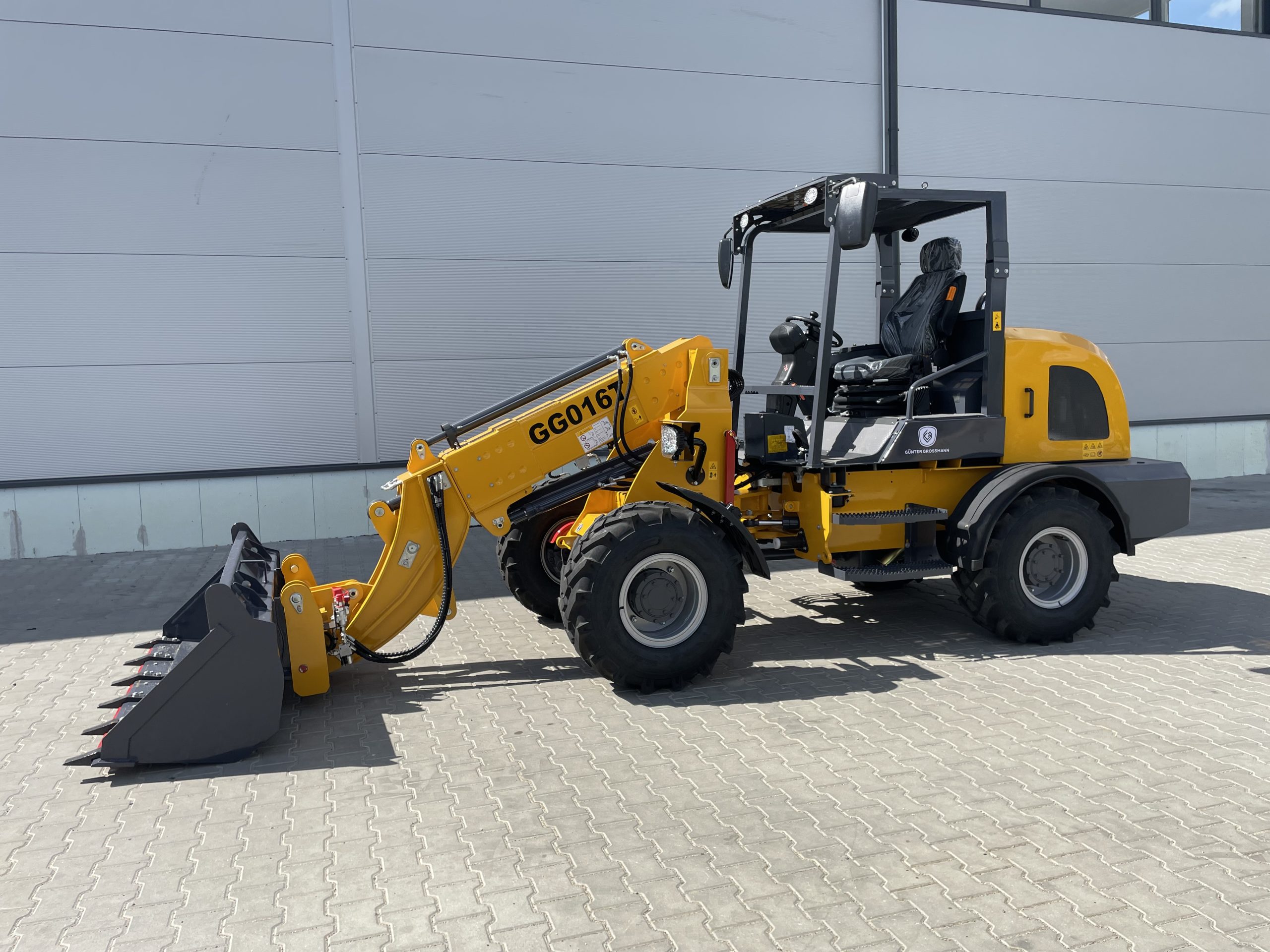

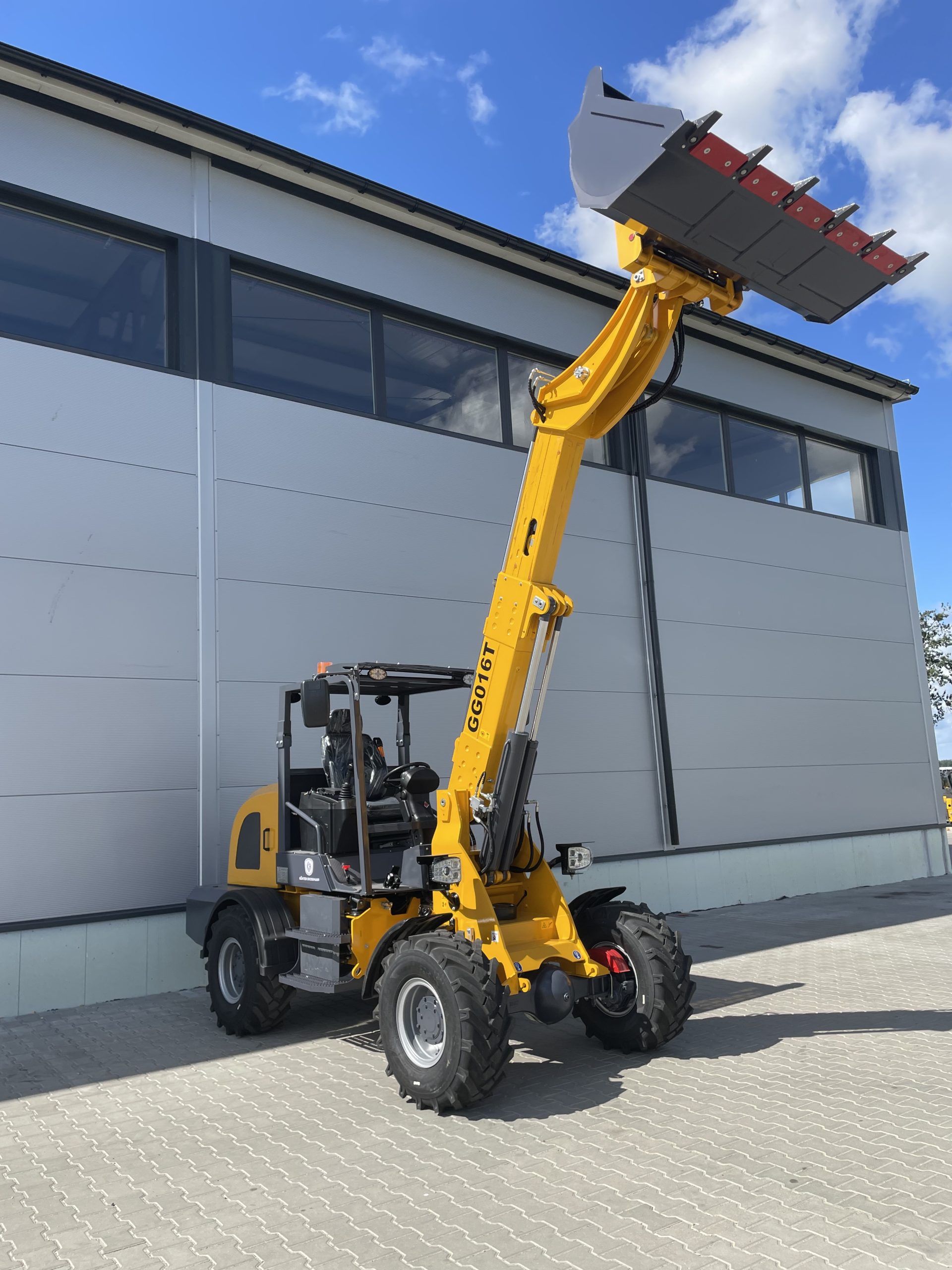

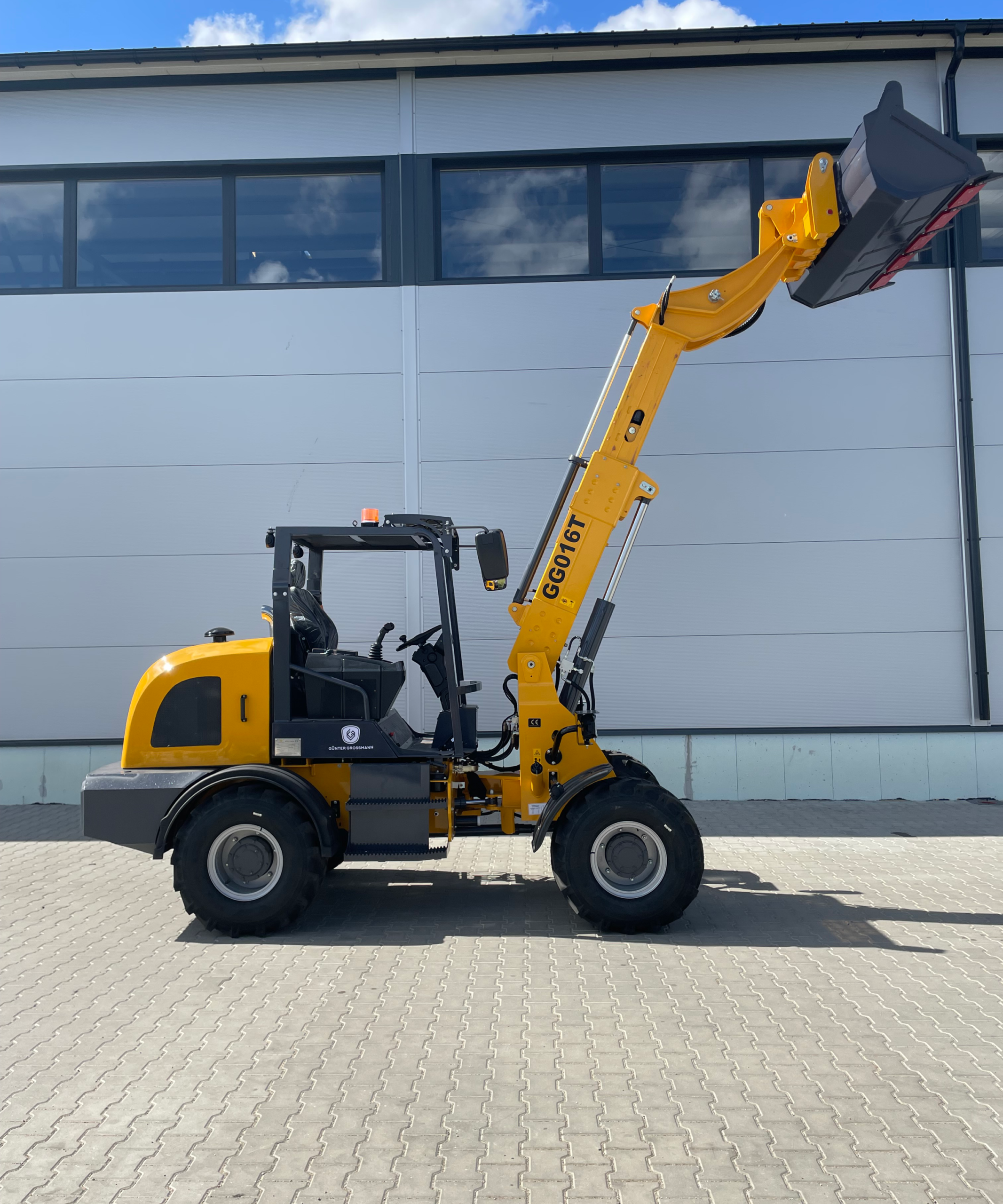

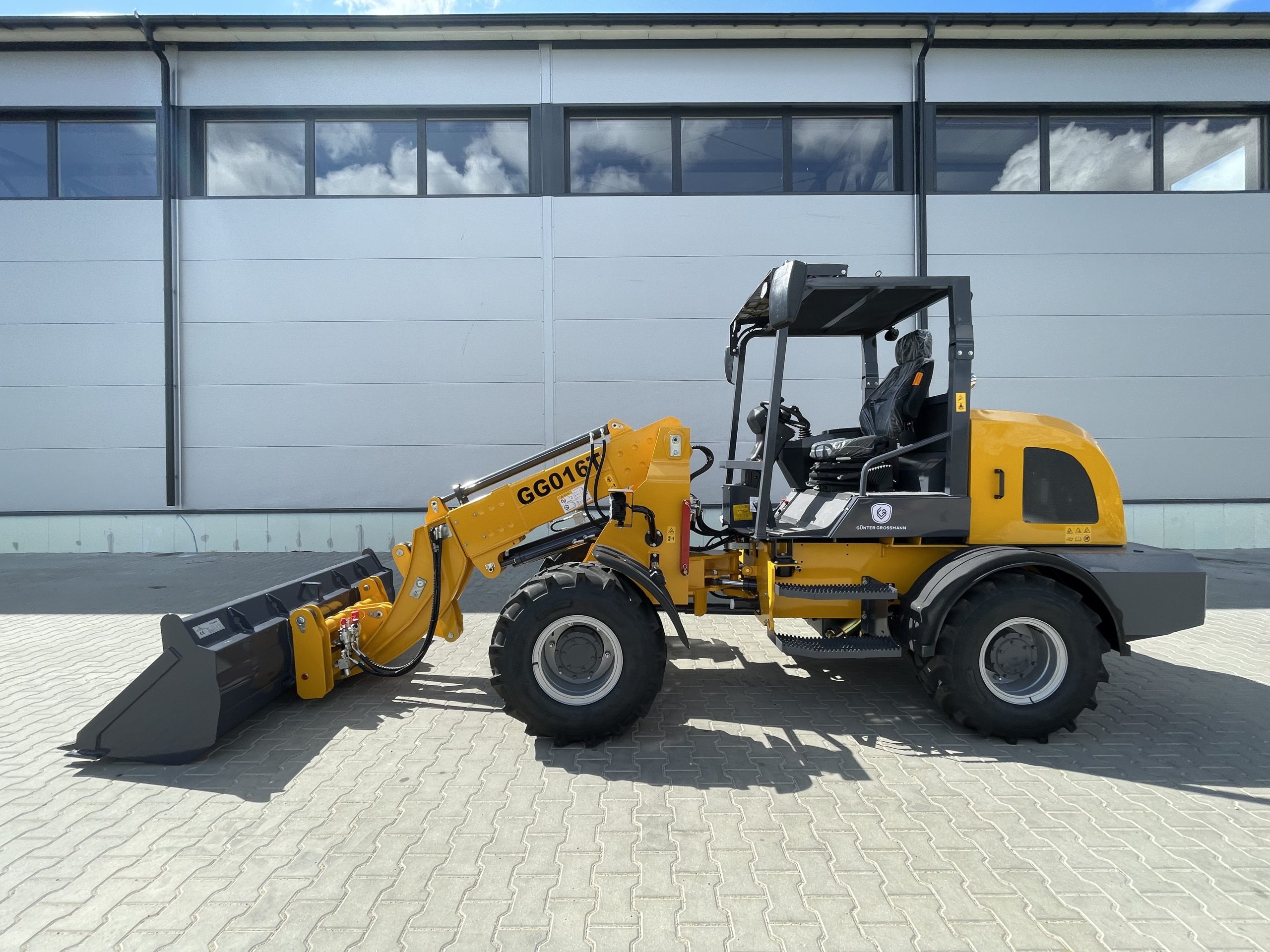

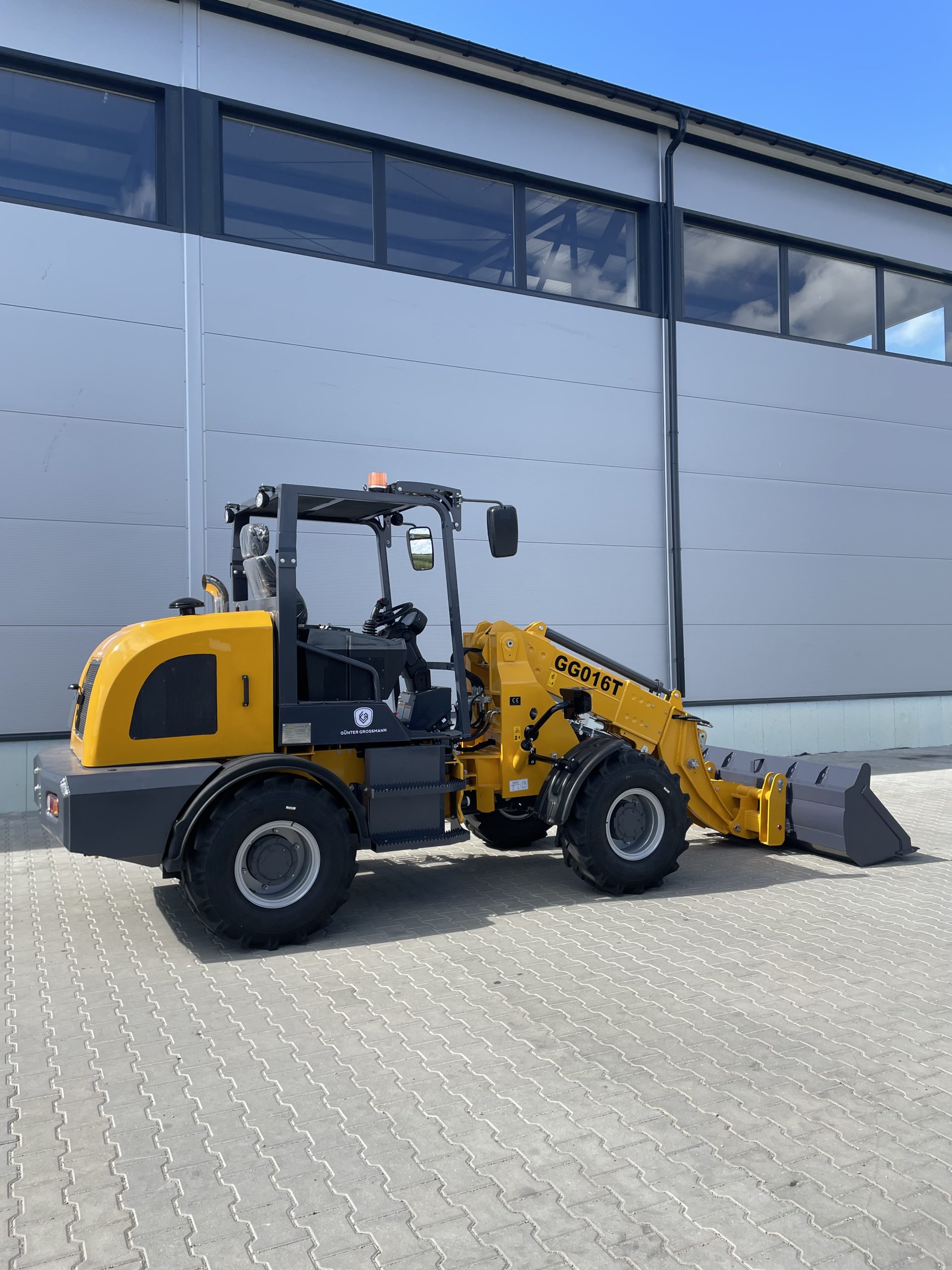

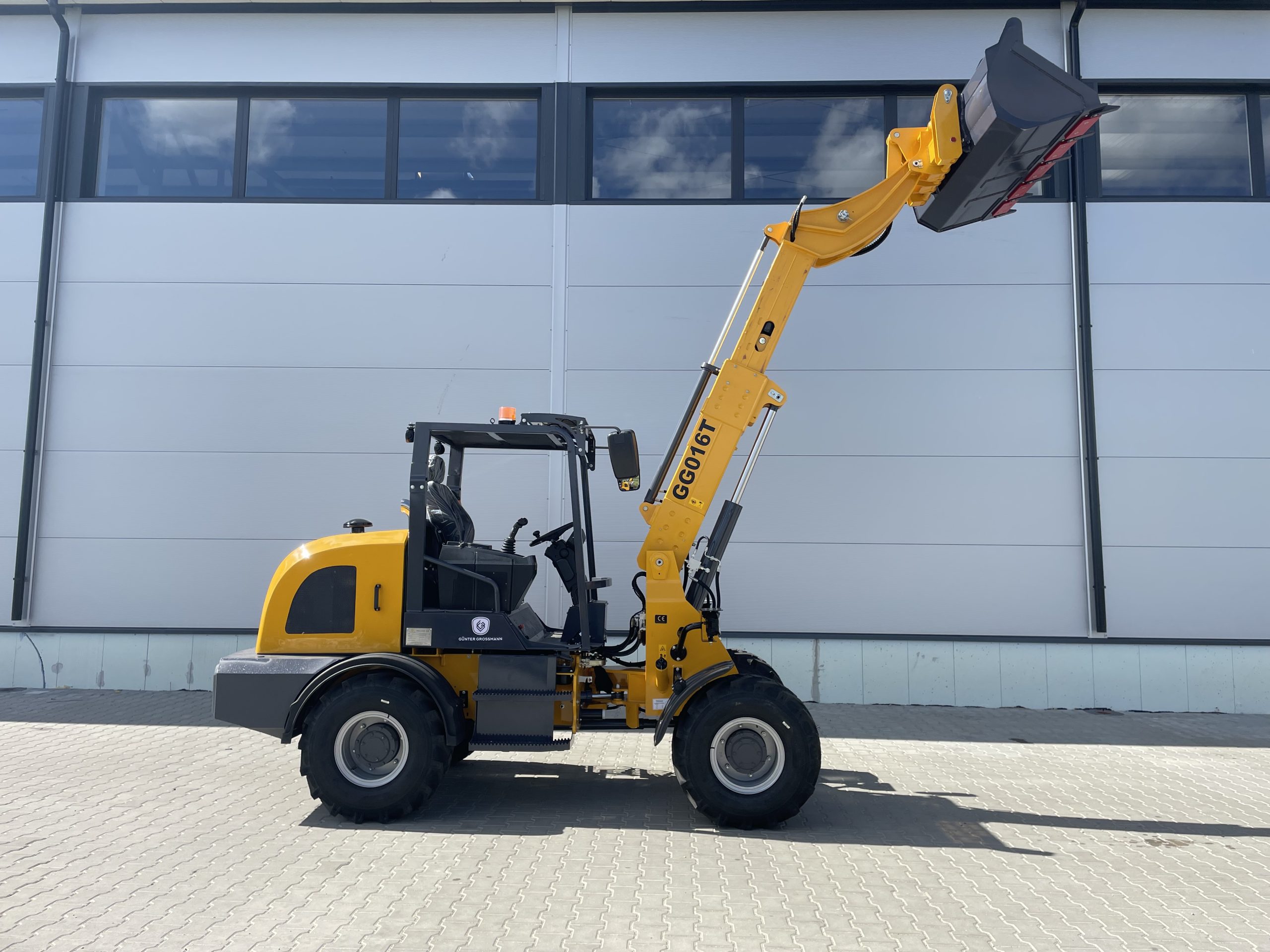

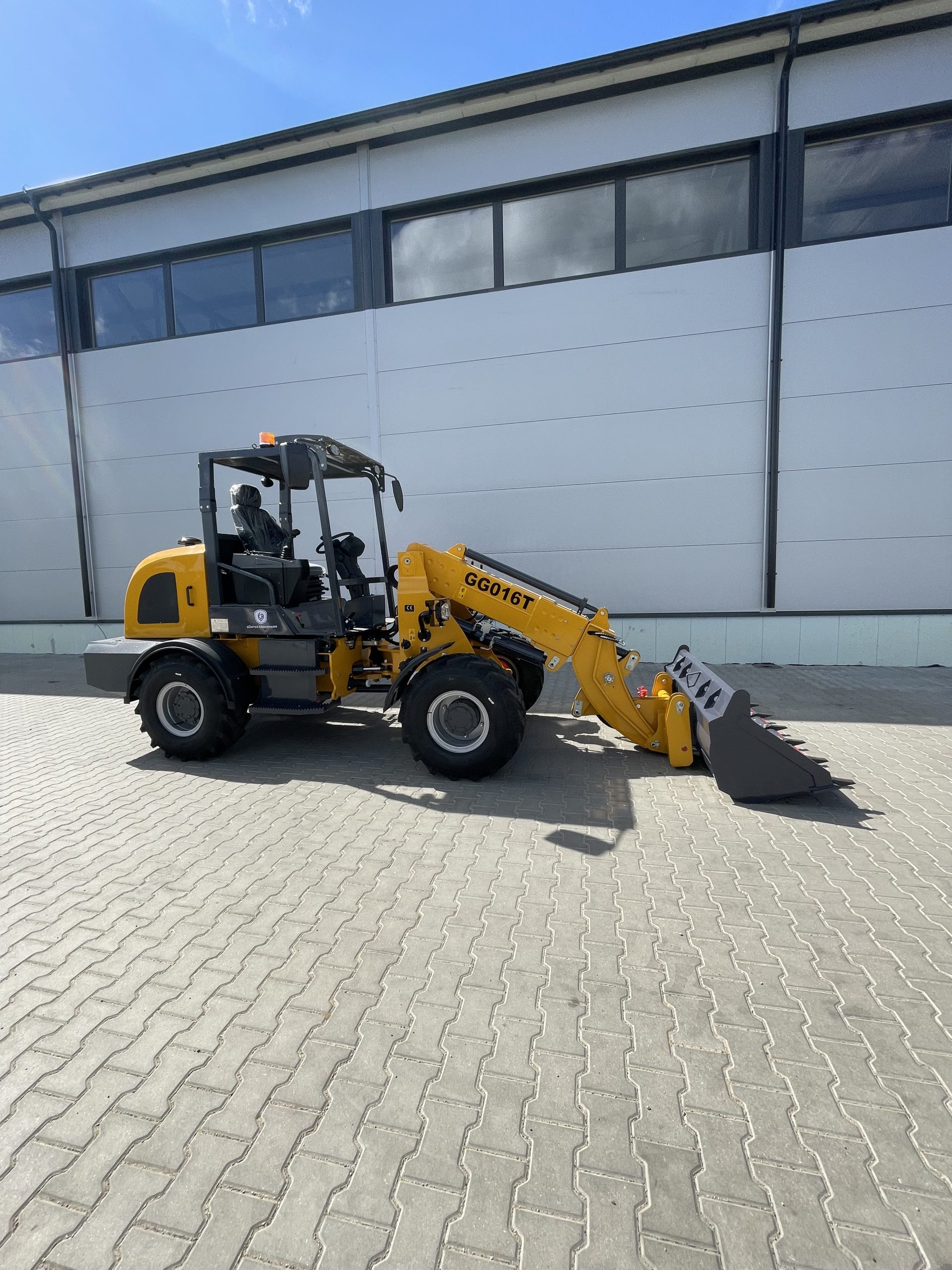

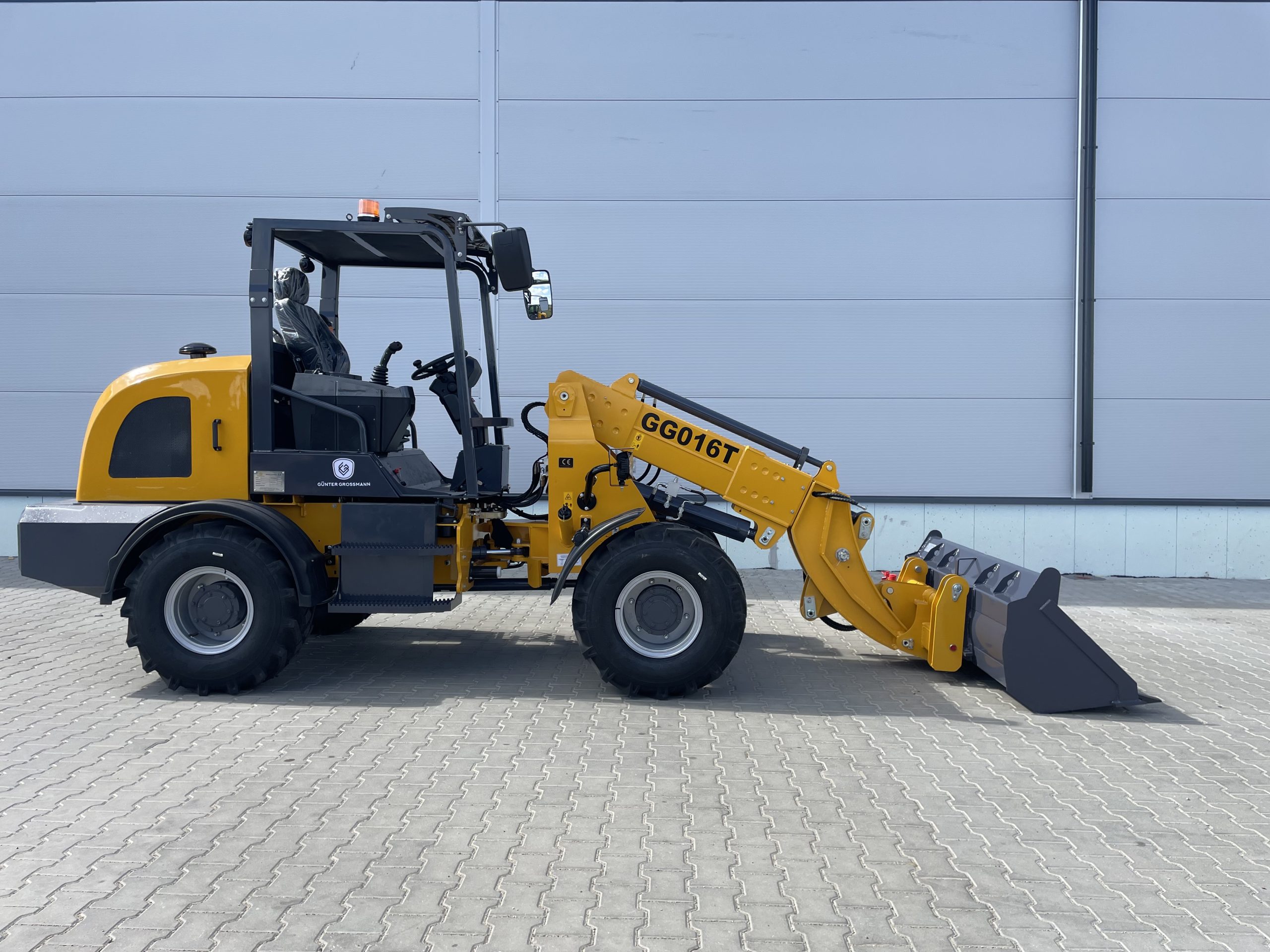

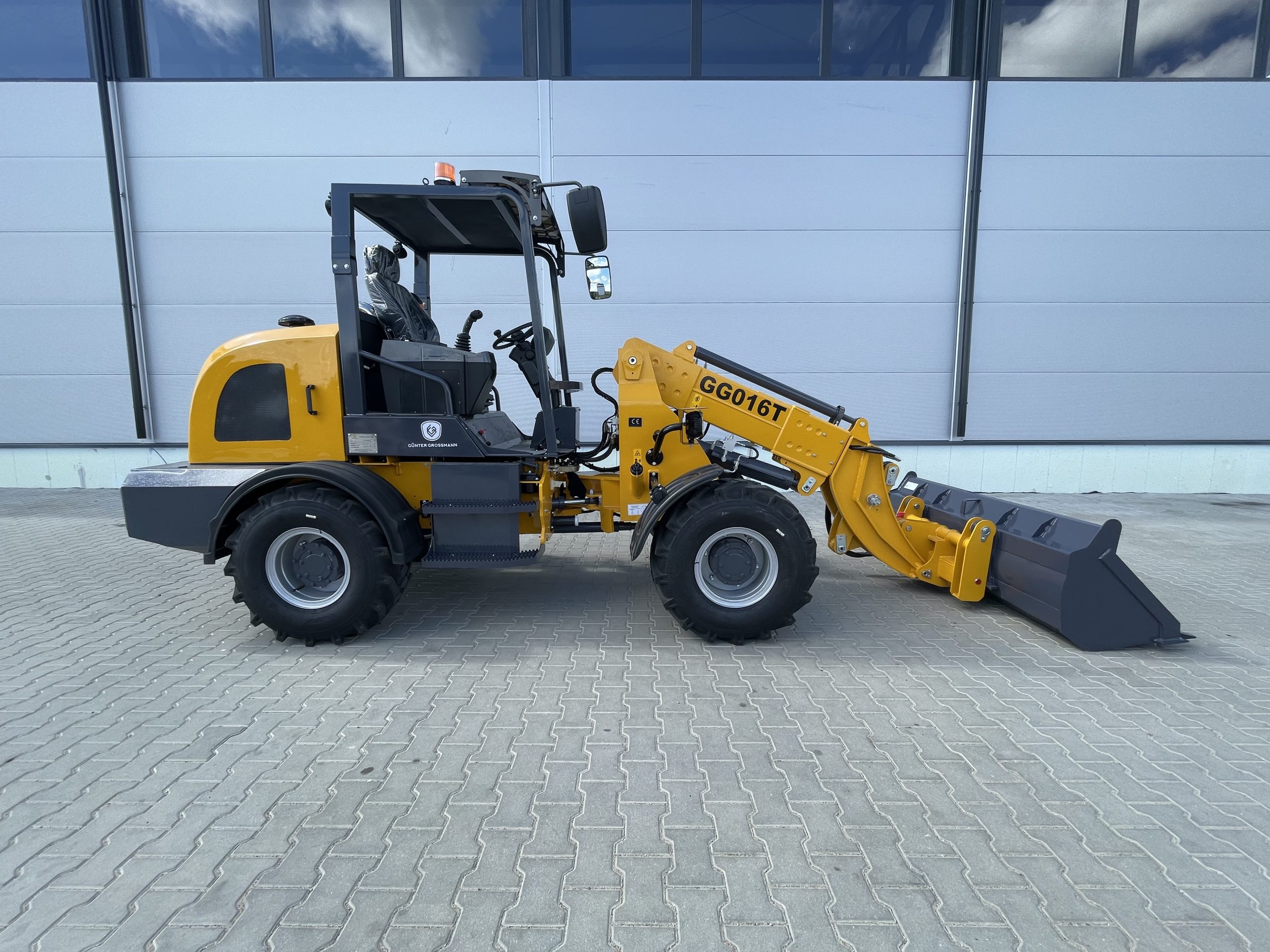

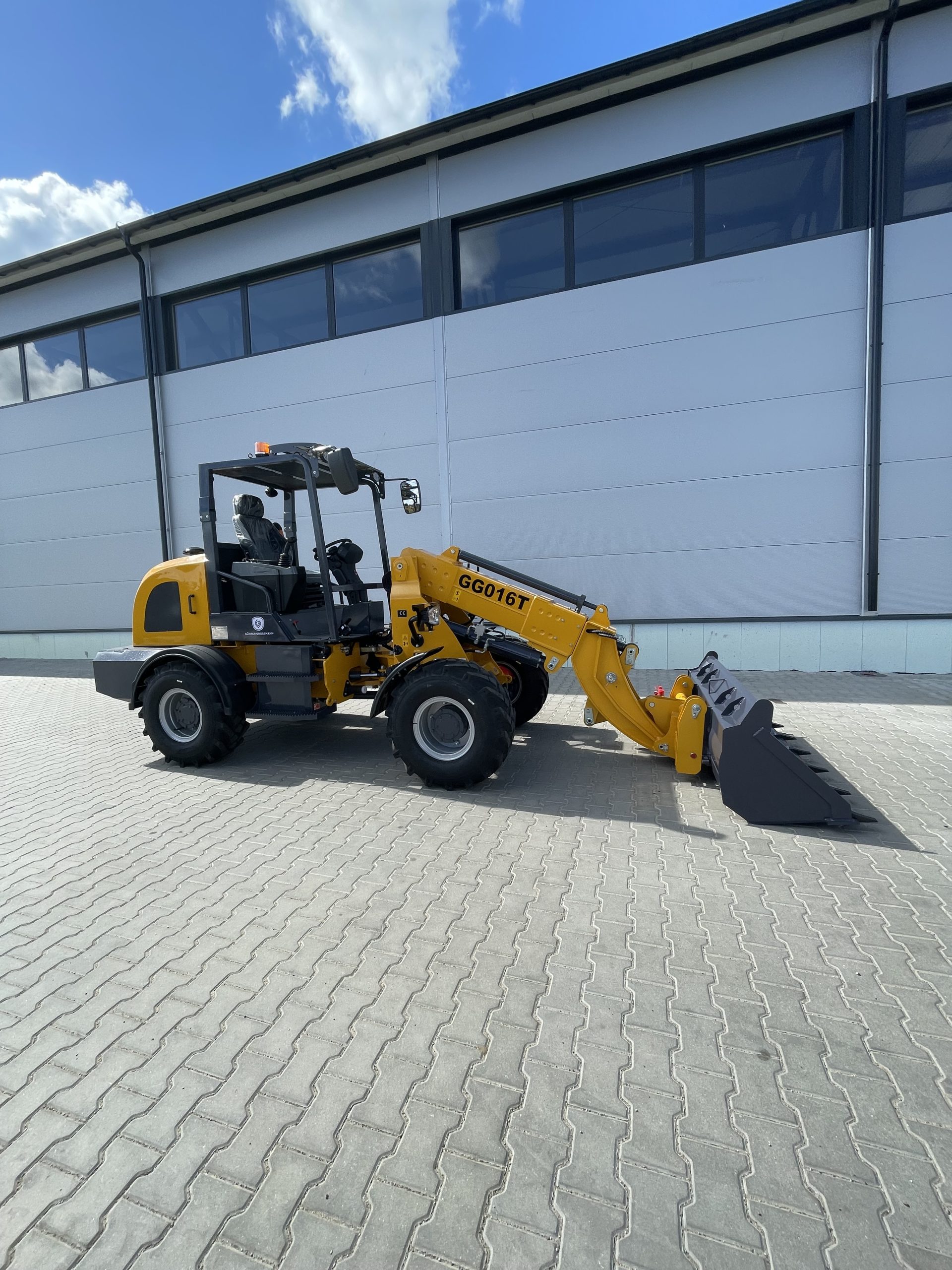

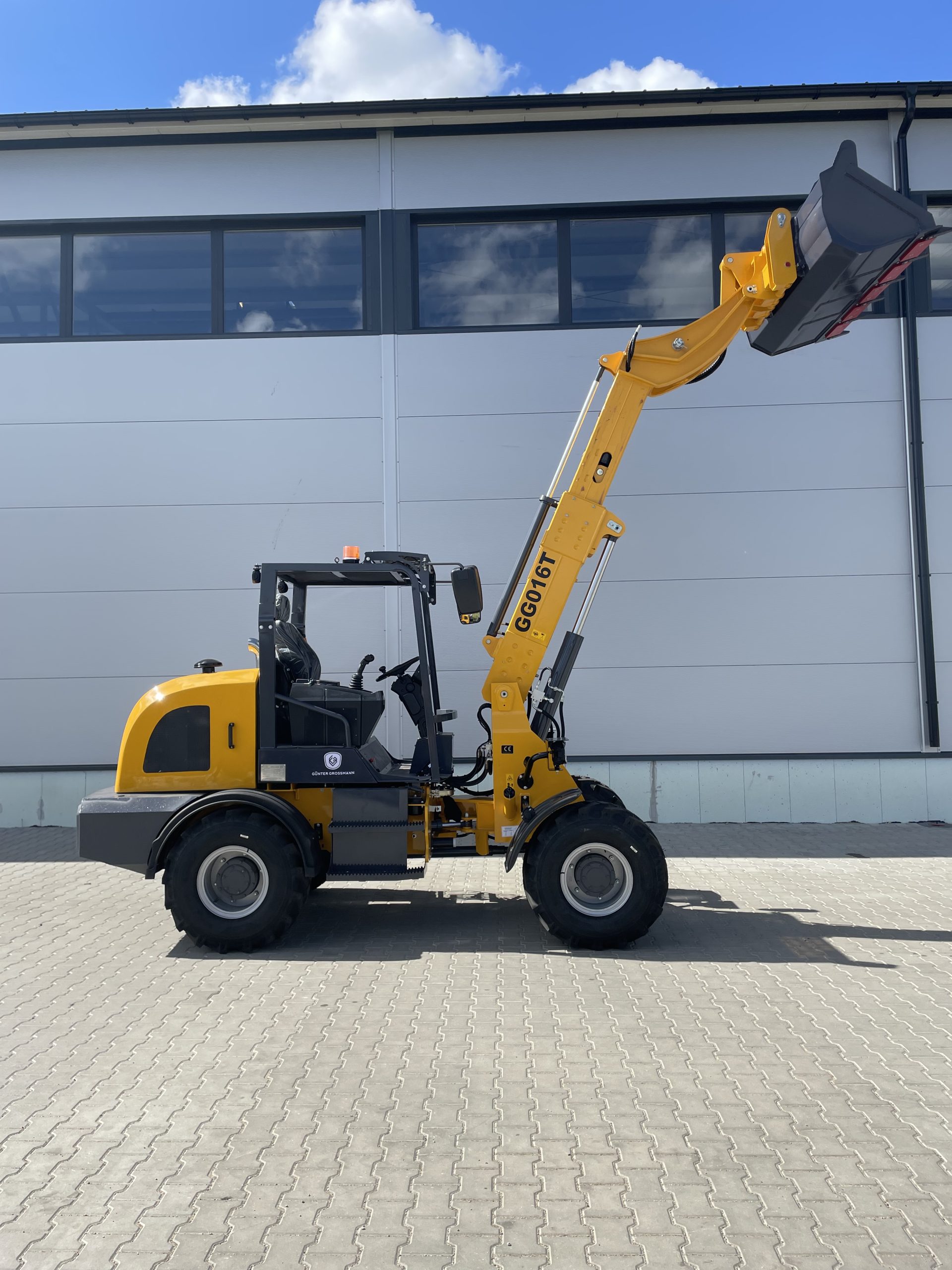

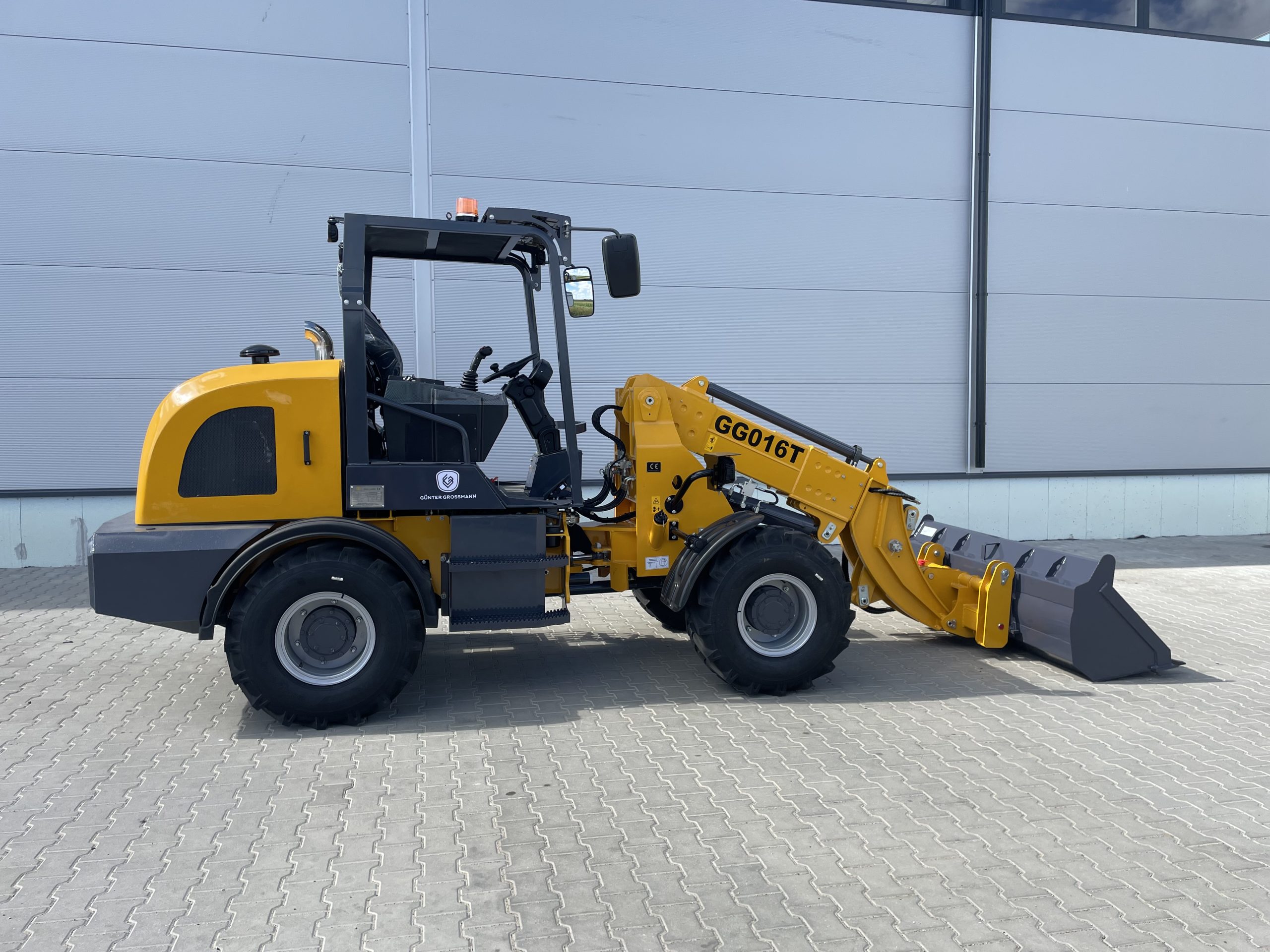

GG016TO Loader

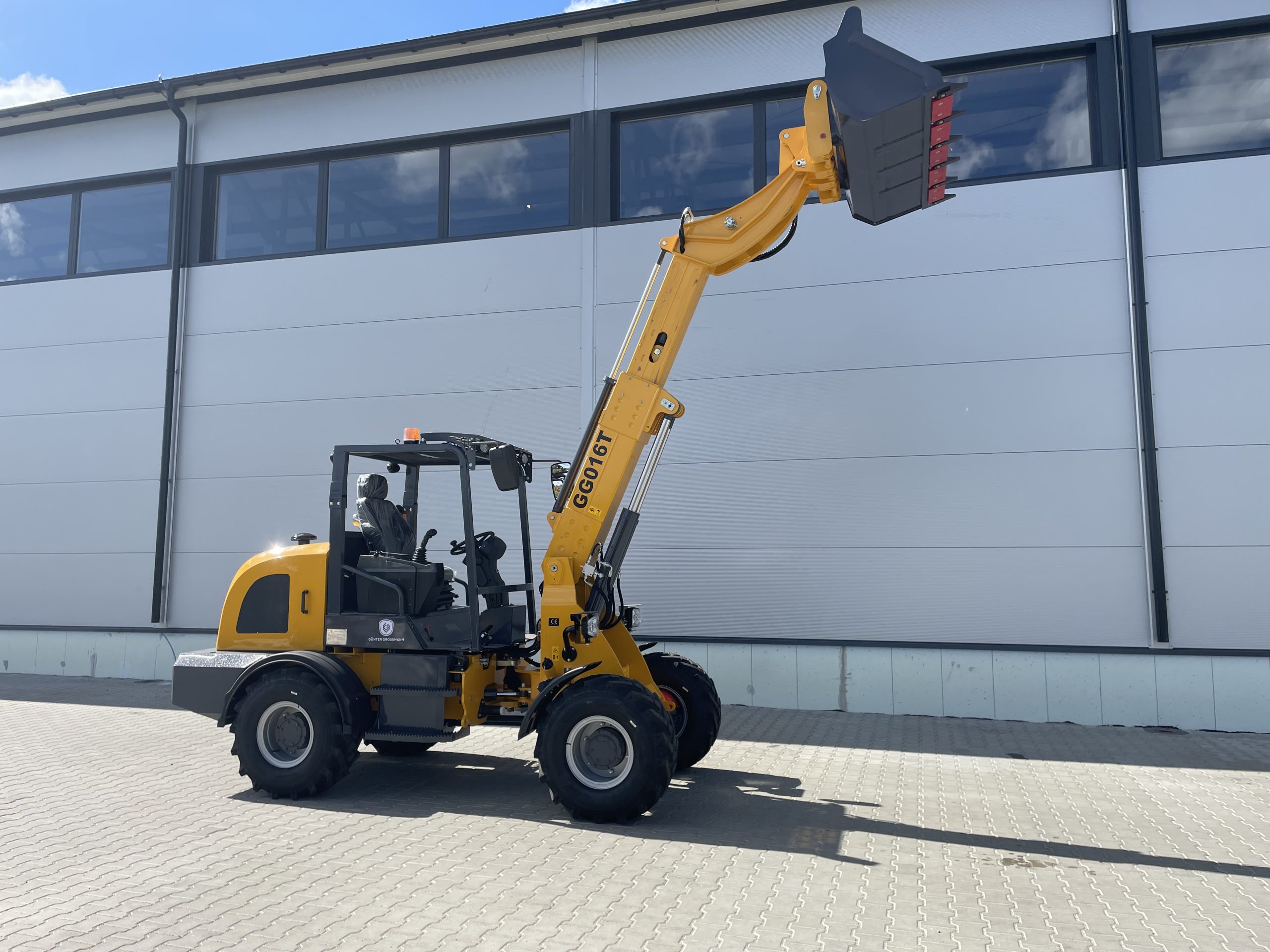

Telescopic Loader
The Gunter Grossmann GG016TO is a high-performance and robust telescopic loader designed for demanding construction, agricultural, and industrial applications. Thanks to its high power, modern engineering solutions, and versatility, it guarantees reliability and efficiency in diverse tasks, especially when handling heavy materials and working in confined spaces.
Engine and Drive – Power and Mobility

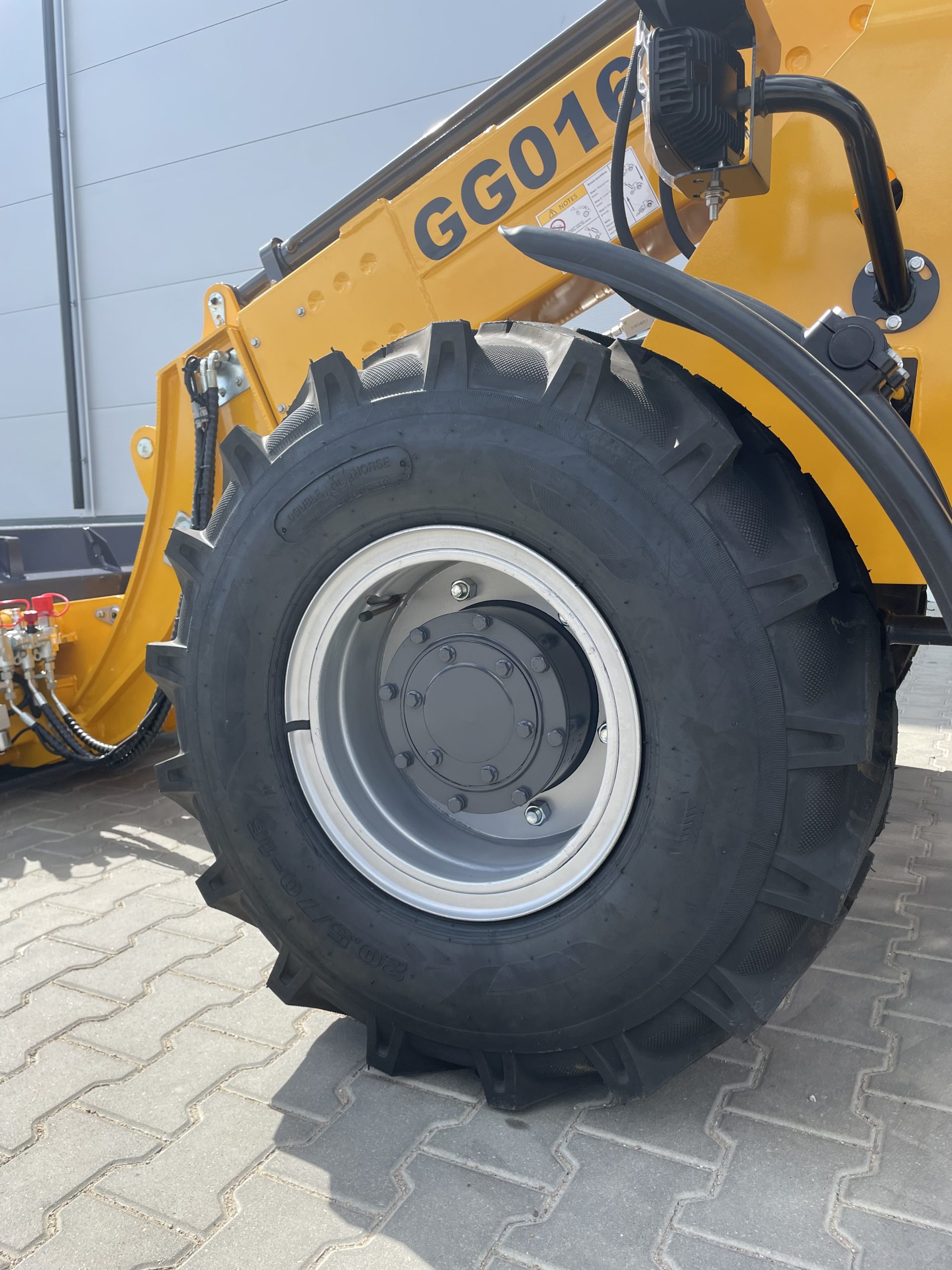

The model is equipped with a Yunnei DEF20CDF4 diesel engine with a rated speed of 2400 rpm, delivering adequate power for heavy-duty tasks. The loader reaches a speed of 18-28 km/h, enabling efficient movement around the job site. Standard 20.5/70-16 tires or optional 33X16,5-15 tires ensure excellent traction and comfort in challenging terrain.

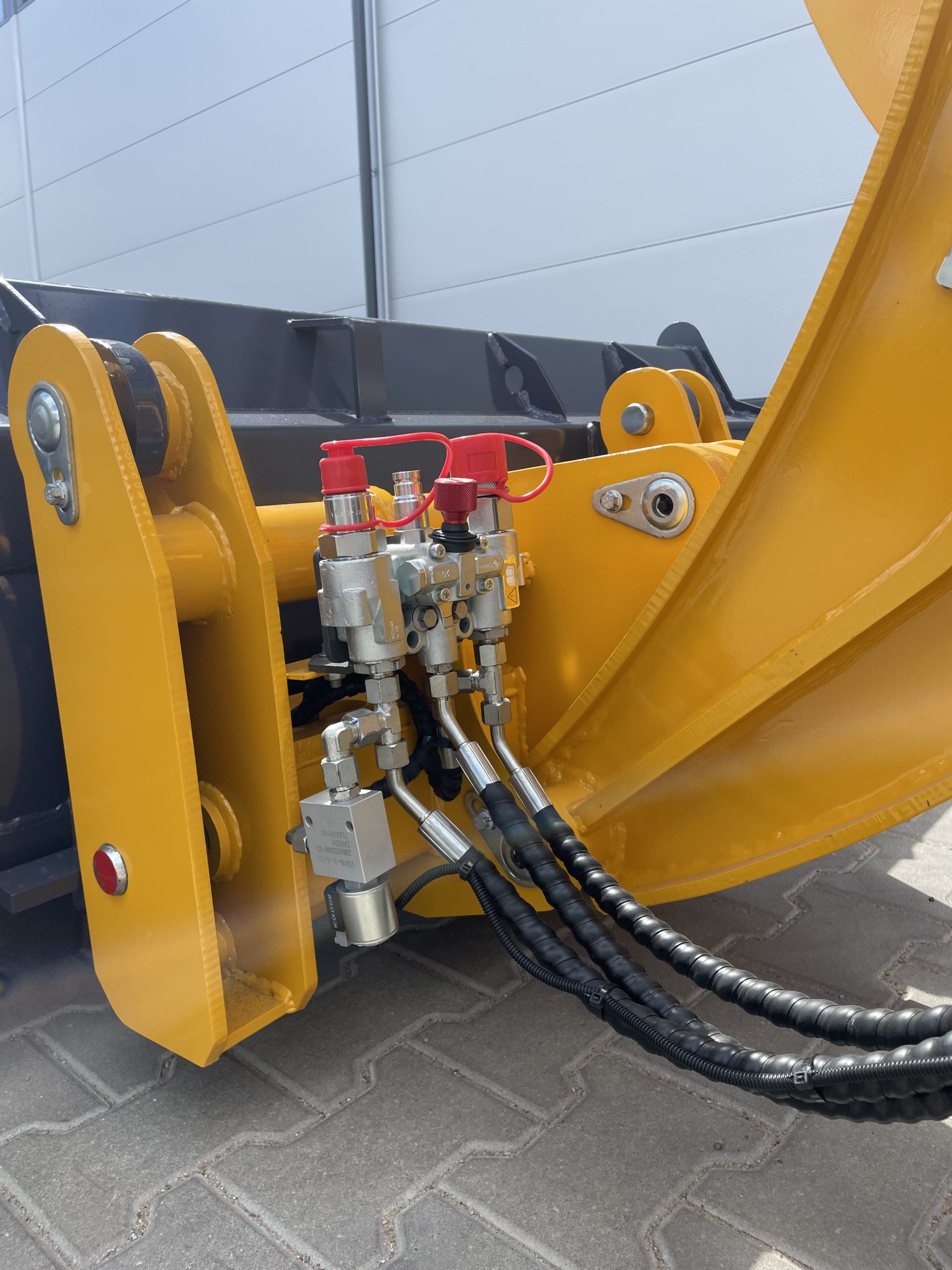

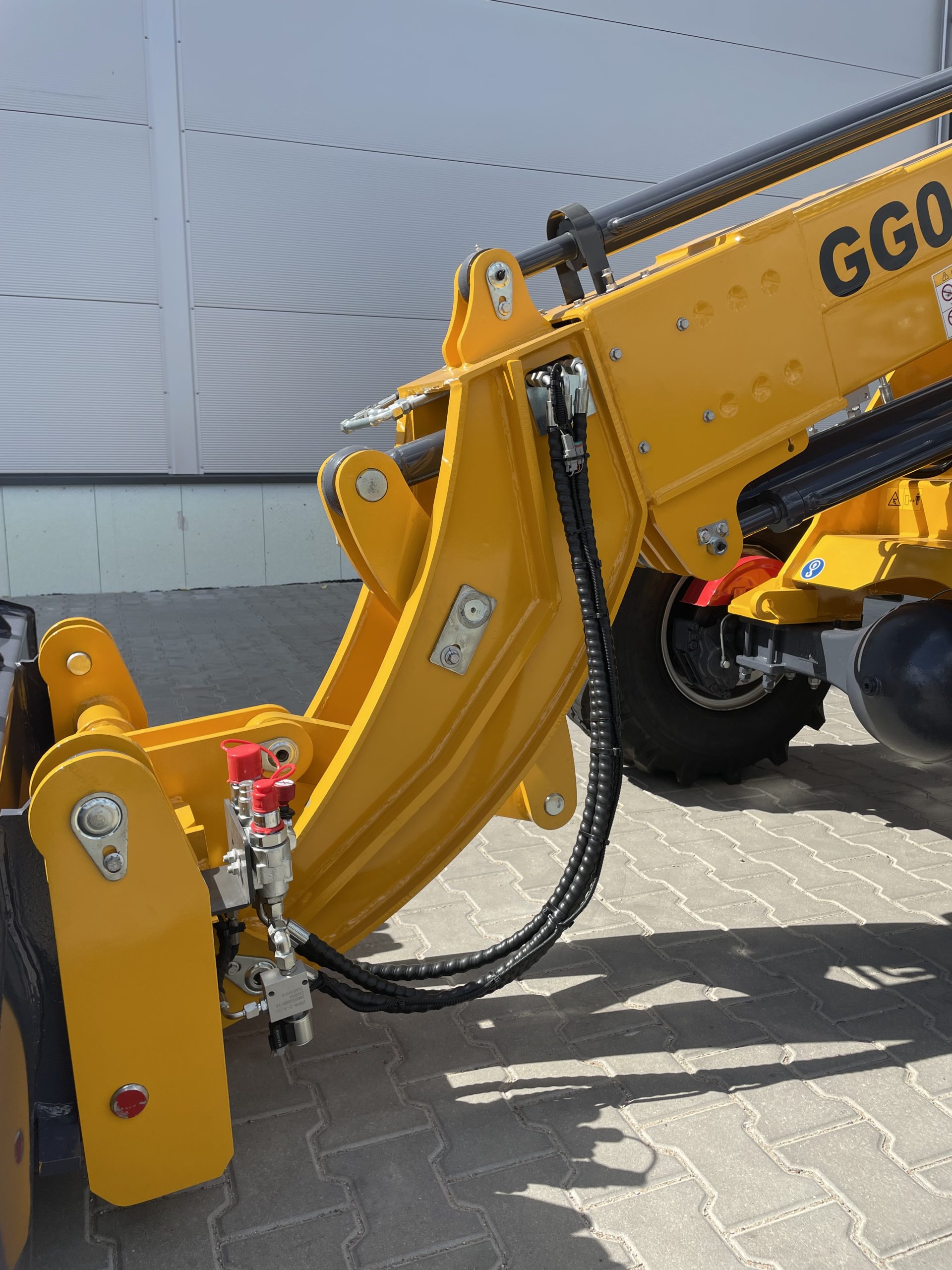

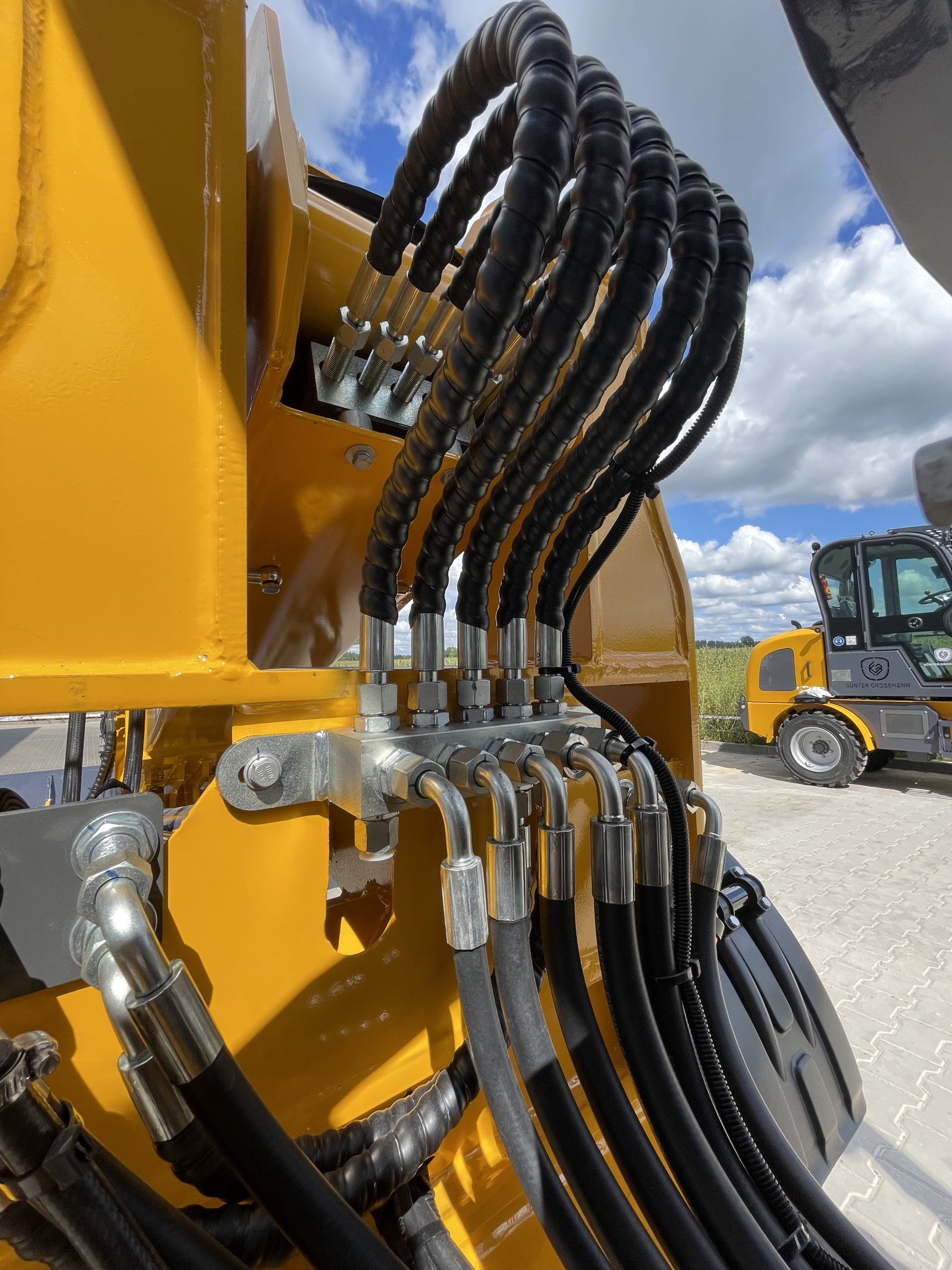

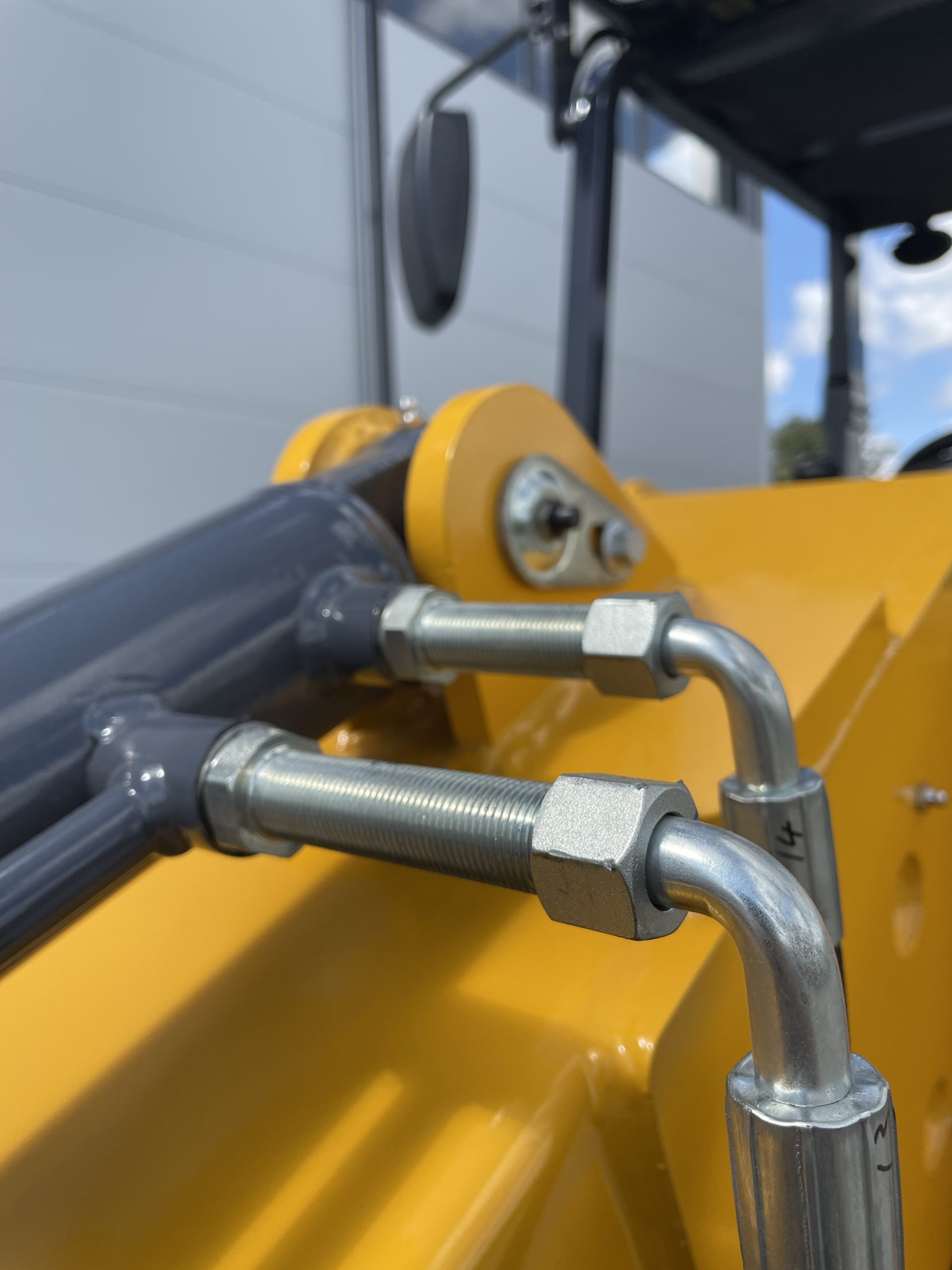

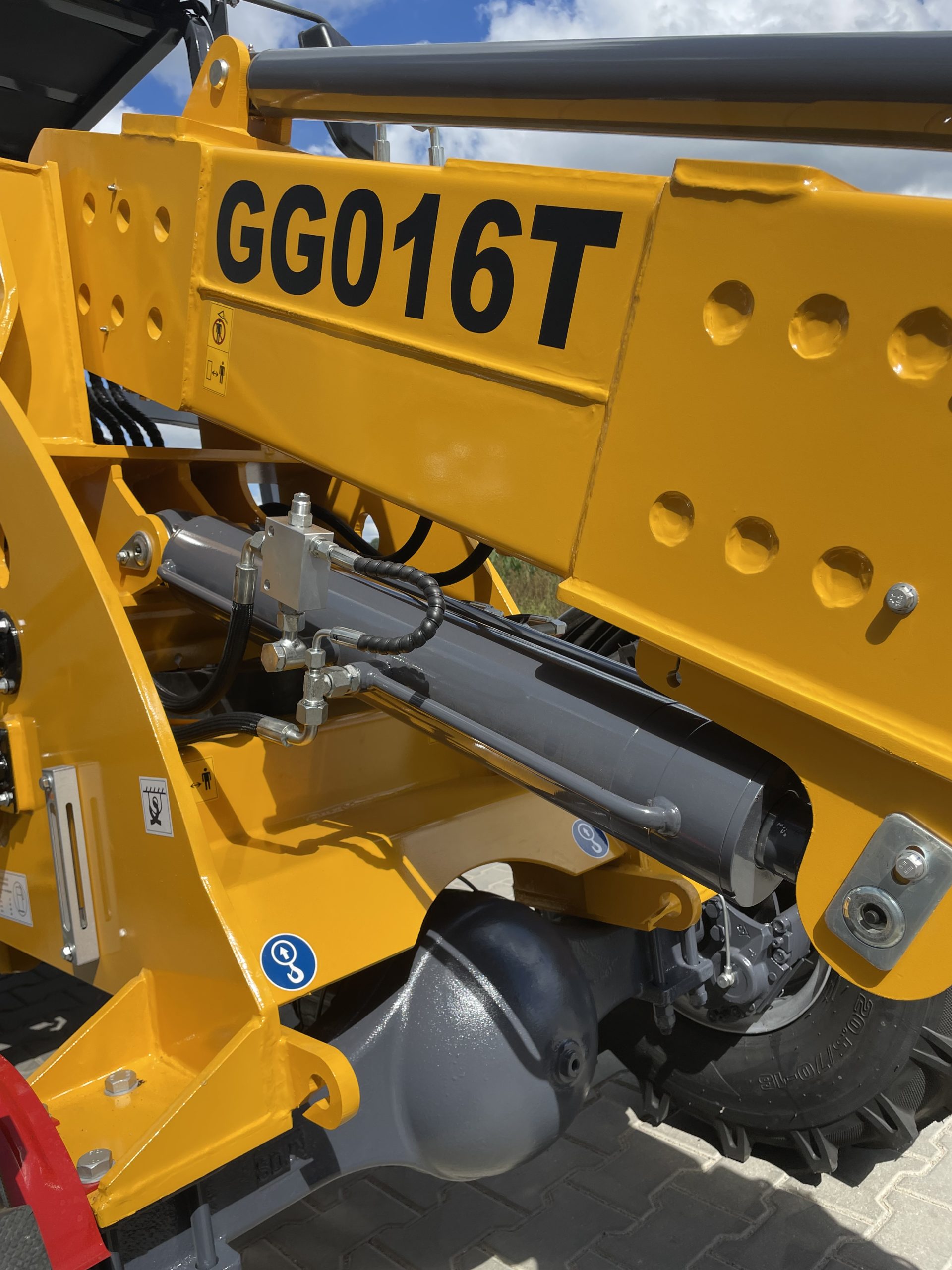

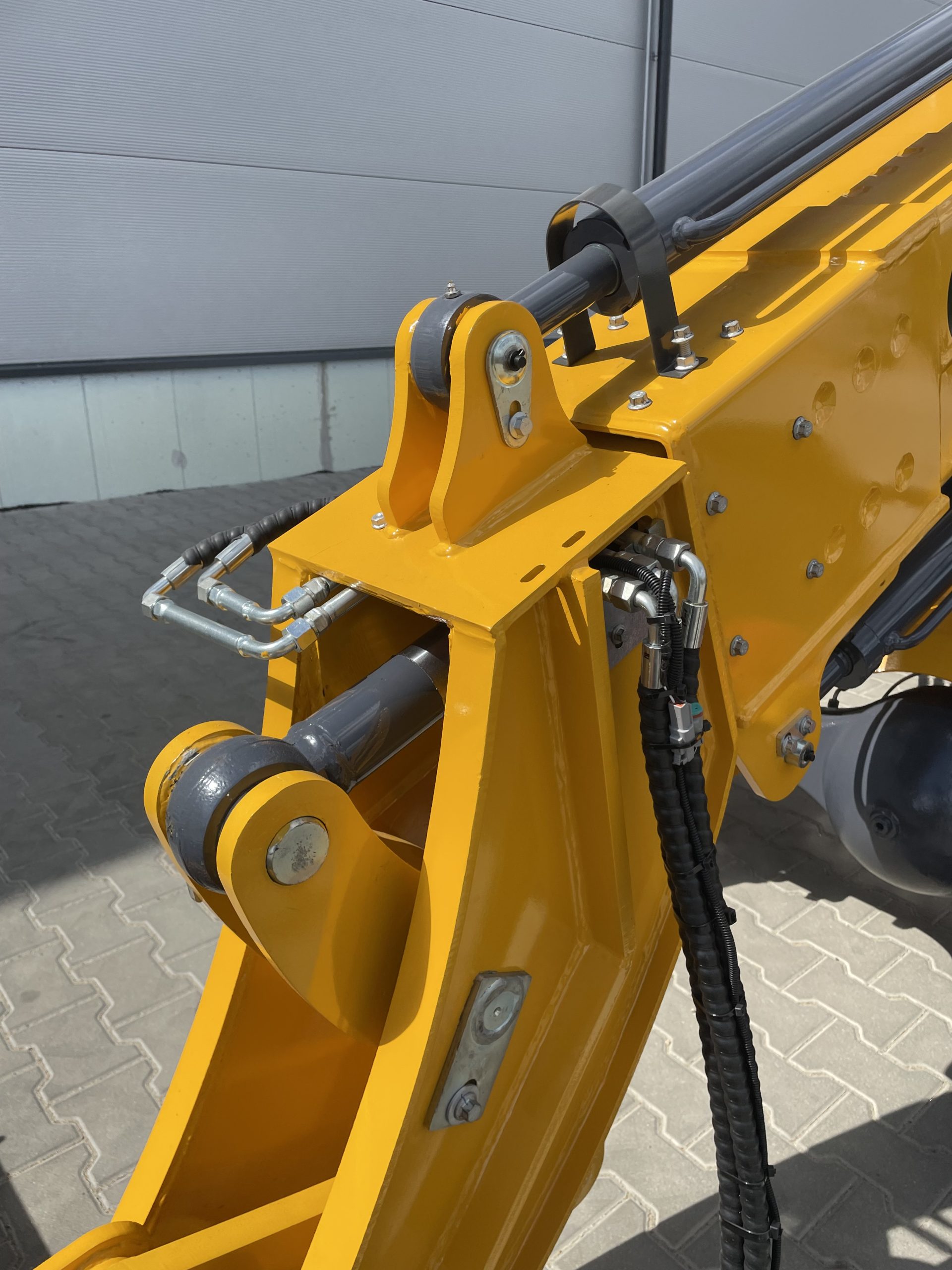

Hydraulics – Power and Precision
Featuring a hydraulic pressure of 16 MPa and an oil flow rate of 60 l/min, the GG016OT hydraulics ensure fast and effective operations. With a bucket capacity of 0,8 m³, the machine effortlessly handles large quantities of materials, streamlining the operator’s workflow.
Working Range – Efficiency and Maneuverability
A load capacity of 1600 kg makes the GG016TO perfect for heavy-duty tasks. Its compact design and 2280 mm wheelbase provide exceptional maneuverability, especially in tight spaces. A travel speed of up to 28 km/h allows for quick relocation across the work area, while the 0,8 m³ bucket enhances loading and unloading efficiency.
Gallery
