Excavators
GG800NC
5799 euro netto
Attention! Business customers with a VAT ID number pay net prices only, according to EU regulations.
Including: Excavator GG800NC + 300mm Bucketㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ
Check out the offer
Specification
Operating weight:
1000 kg
Digging bucket capacity:
0.025 cbm
Bucket width:
300 mm
Engine:
Gunter Grossmann Euro 5 Diesel
Rated power:
8.6 kW / 3600 rpm
Main pump:
Wayne Hydraulic
Hydraulic pressure:
16 MPa
Swing motor:
Dali
Travel motor:
Dali
Travel speed:
1.5 km/h
Working Range
Max. digging depth:
1650 mm
Max. digging height:
2610 mm
Max. dumping height:
1850 mm
Max. digging radius on ground:
2890 mm
Swing radius:
360°
Max. dozer blade lift height:
345 mm
Max. dozer blade digging depth:
255 mm
Main Dimensions
Length:
2770 mm
Width:
930 mm
Height:
2100 mm
Overall track length:
1230 mm
Chassis width:
896 mm
Track width:
200 mm
Additional Equipment (for reference)
Bucket 200mm
205 euro netto
Bucket 500 mm
260 euro netto
Bucket 800 mm
290 euro netto
Hydraulic Bucket
800 euro netto
Earth Auger
635 euro netto
Hydraulic hammer
1670 euro netto
Log grapple
350 euro netto
Quick coupler
250 euro netto
Rake
260 euro netto
Ripper tooth
260 euro netto

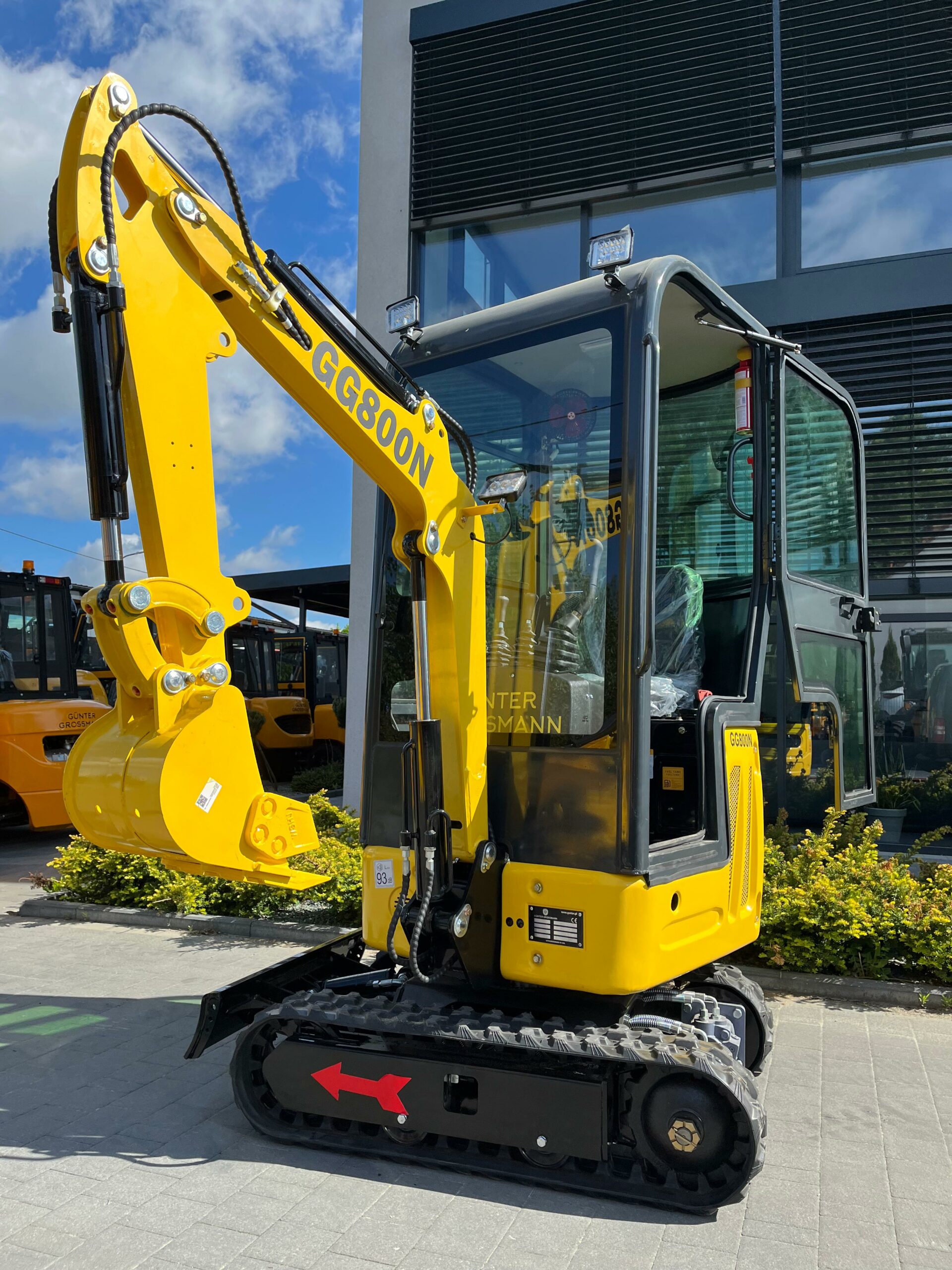

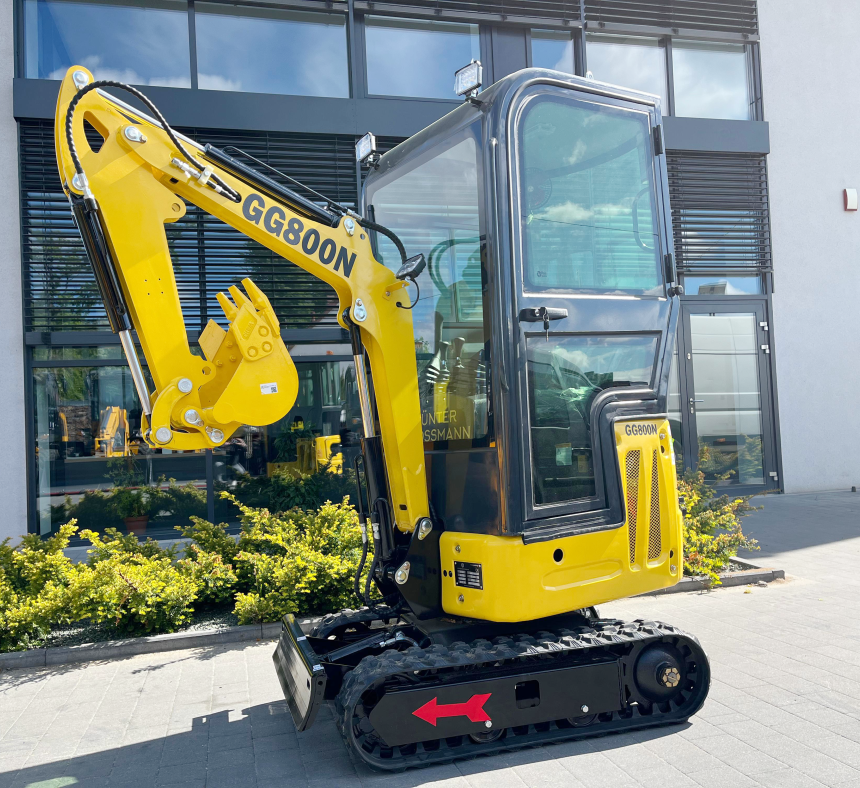

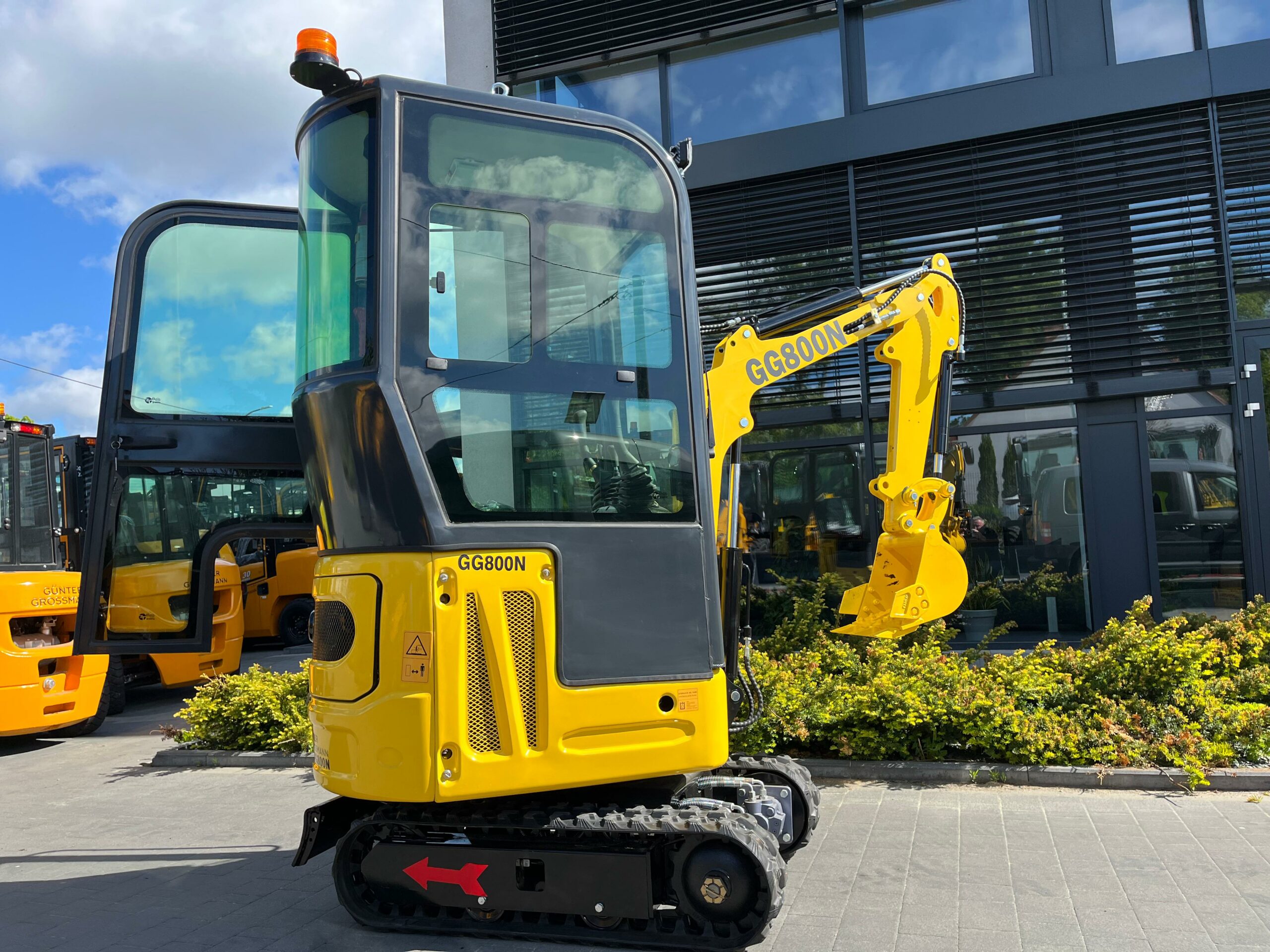

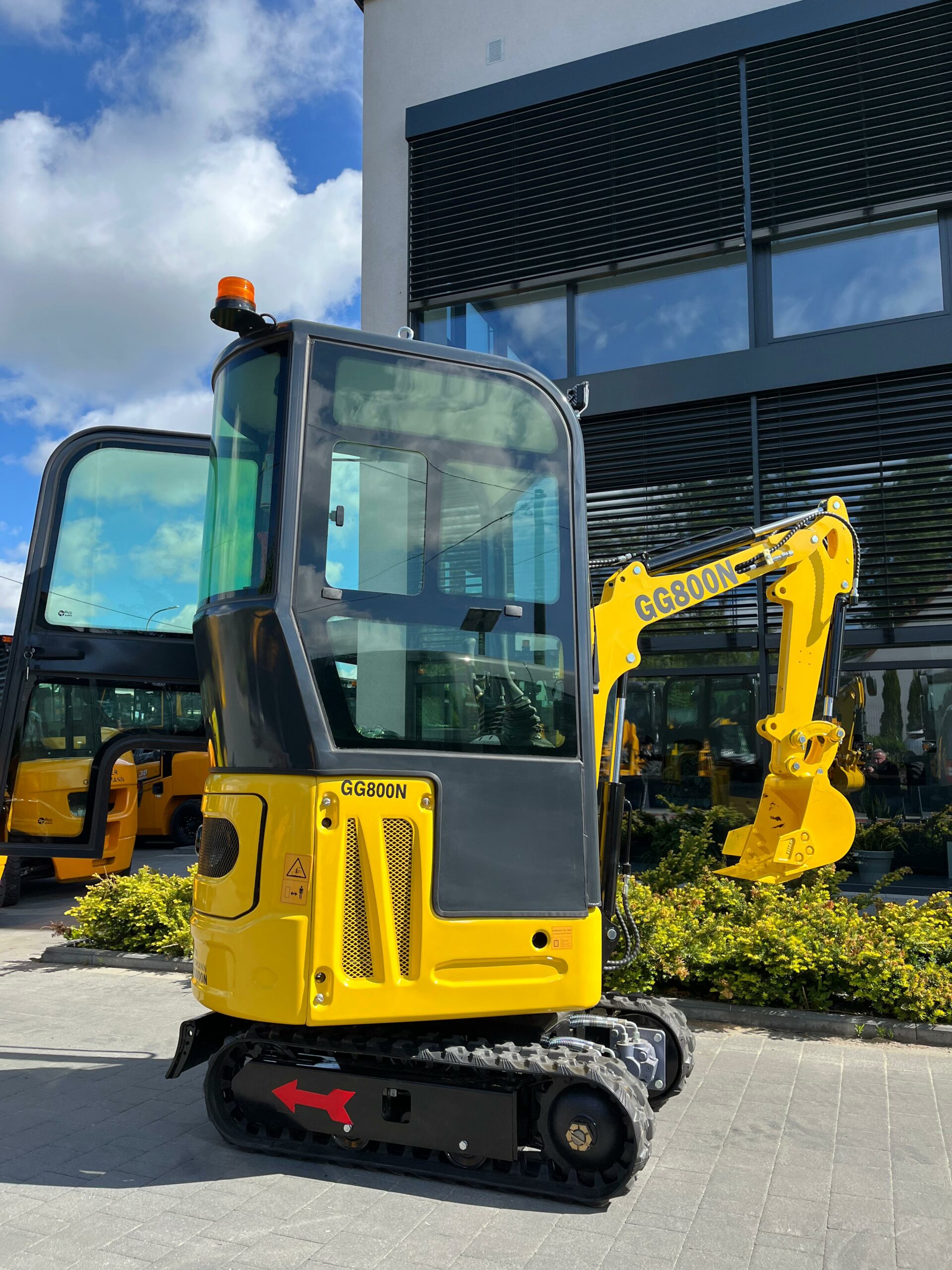

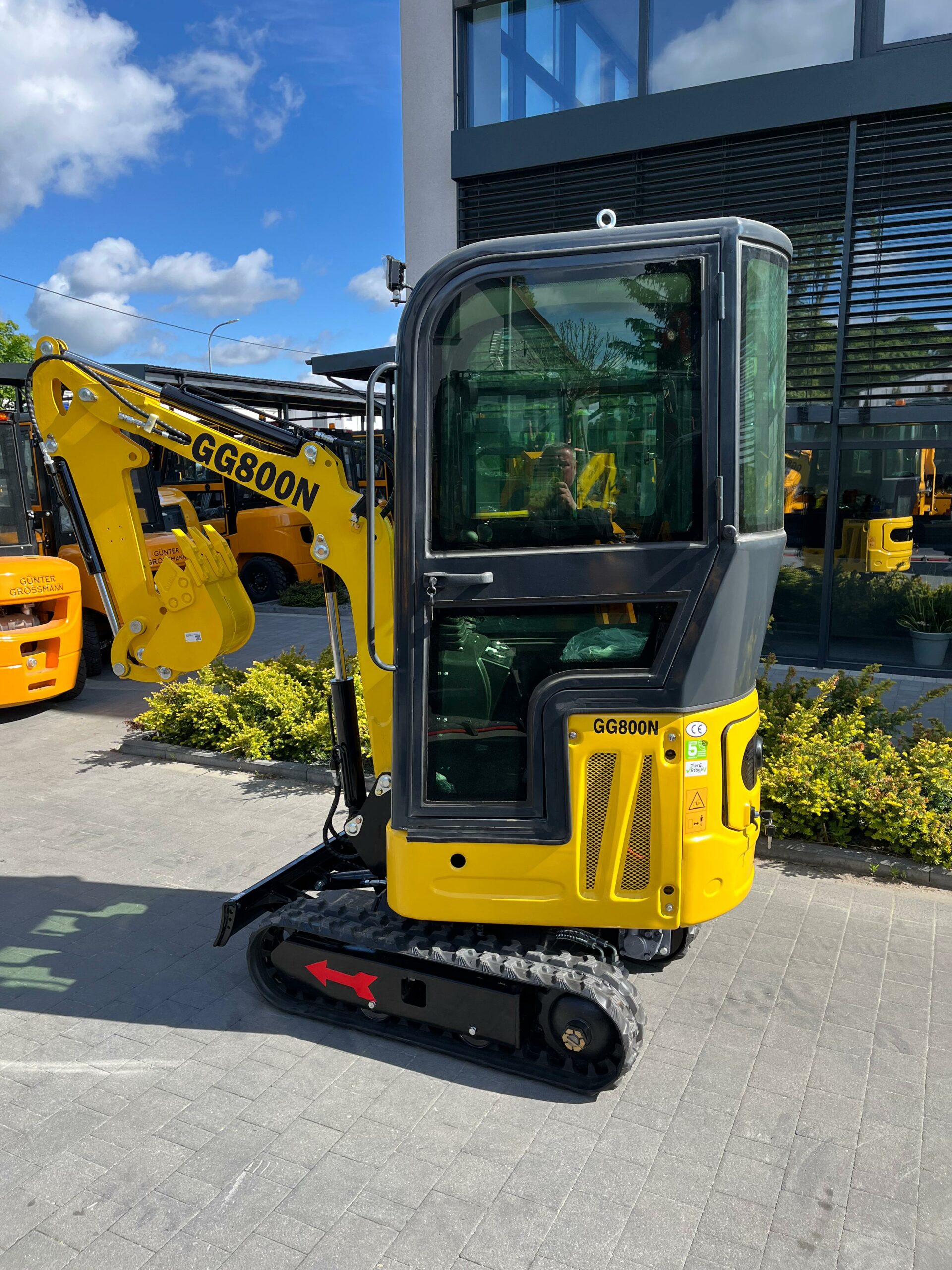

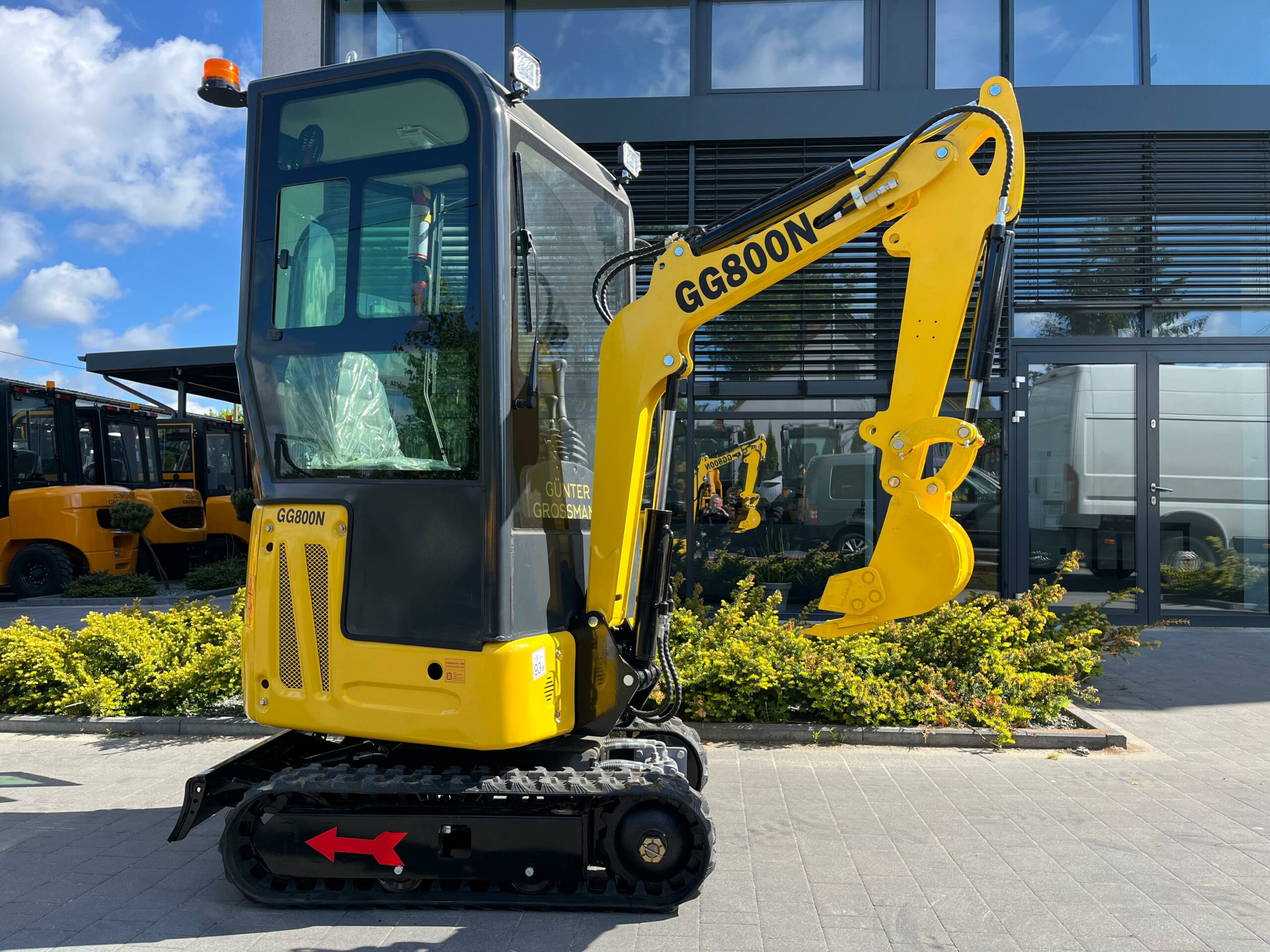

Mini Excavator
GG800NC
Tracked Excavator – Cab Version
The GG800NC excavator with an operating weight of 1000 kg combines high performance and fuel efficiency. The GG800NC version is equipped with a modern cab that provides the operator with comfort and protection while working in all weather conditions. It is designed to meet the demands of intensive fieldwork, offering reliability, efficiency, and enhanced safety.
Euro 5 Engine – Power and Ecology
Powered by a Gunter Grossmann Euro 5 Diesel engine delivering 8.6 kW, the GG800NC excavator not only provides sufficient power for the job but also meets stringent emission standards, ensuring environmental friendliness. Equipped with a Wayne hydraulic pump and an operating pressure of 16 MPa, the machine handles every challenge, even in difficult terrain conditions.
Working Range – Precise Digging in Challenging Conditions
The GG800NC excavator offers a maximum digging depth of 1650 mm and a maximum digging height of 2610 mm, enabling precise work in various conditions. With a dumping height of up to 1850 mm, it is ideal for material loading even in hard-to-reach places. The cab enhances operator comfort and allows work regardless of the weather.
High Maneuverability and Flexibility
Thanks to a 360° swing radius, the GG800NC excavator offers exceptional maneuverability in tight spaces. The maximum ground-level digging radius of 2890 mm allows comfortable digging over a wide range, even in hard-to-access areas. Additionally, the dozer blade lift height of up to 345 mm increases the machine’s versatility in various tasks. The cab also provides additional protection for the operator against dust, noise, and adverse weather conditions.
Gallery
