Excavators
GG6000
Ask of price
Attention! Business customers with a VAT ID number pay net prices only, according to EU regulations.
Including: ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ
Check out the offer
Specification
Engine:
Yanmar 4TNV98C
Number of Cylinders:
4
Engine Power:
37.5 kW / 2200 rpm
Weight:
6000 kg
Standard Bucket Capacity:
0.22 m³
Hydraulic Pressure:
22 MPa
Main Pump Nominal Flow Rate:
150 l/min
Fuel Tank Capacity:
115 L
Hydraulic Tank Capacity:
85 L
Work Range
Ground Pressure:
32.5 kPa
Bucket Digging Force:
48 kN
Maximum Digging Height:
5635 mm
Maximum Digging Depth:
3980 mm
Maximum Digging Radius:
3830 mm
Dimensions
Length:
5850 mm
Width:
1900 mm
Height:
2580 mm
Platform Width:
1885 mm
Chassis Width:
1900 mm
Track Width:
400 mm
Additional Equipment (for reference)

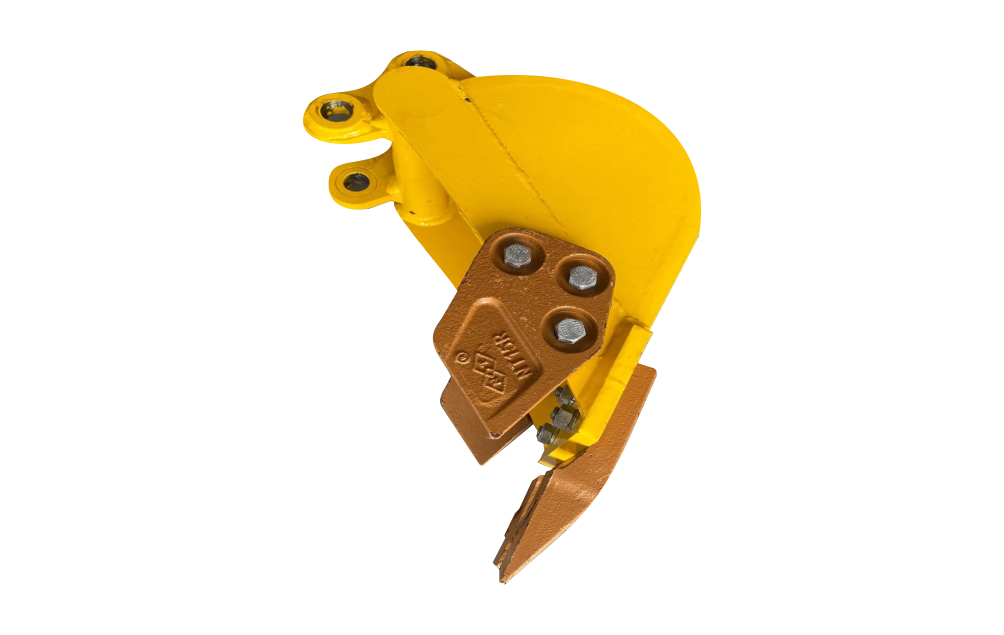

300 mm Bucket
Bucket 400mm
Bucket 600mm
Bucket 800mm
Bucket 1000mm
Drilling rig with gearbox 1500x300mm
Drilling rig with gearbox 1500x350mm
Drilling rig with gearbox 1500x400mm

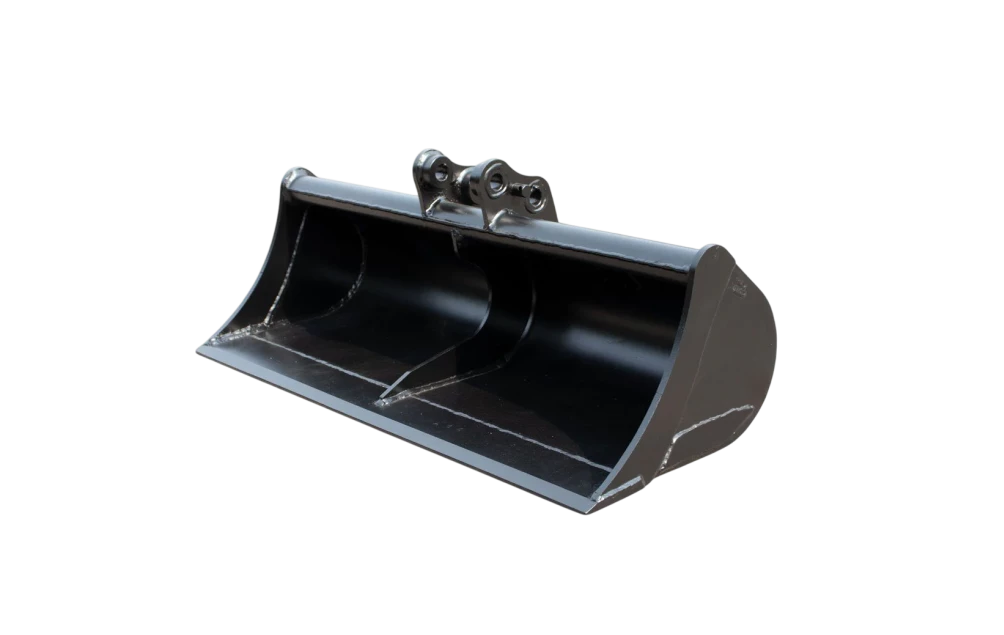

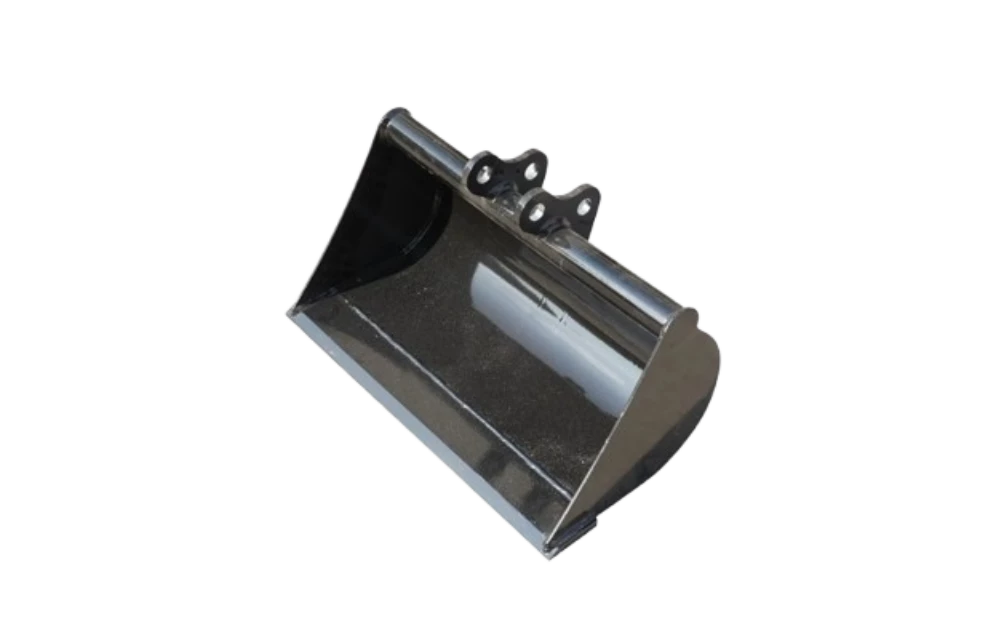

Grading bucket 1000mm
Grading bucket 1200mm
Grading bucket 800mm
Hydraulic breaker

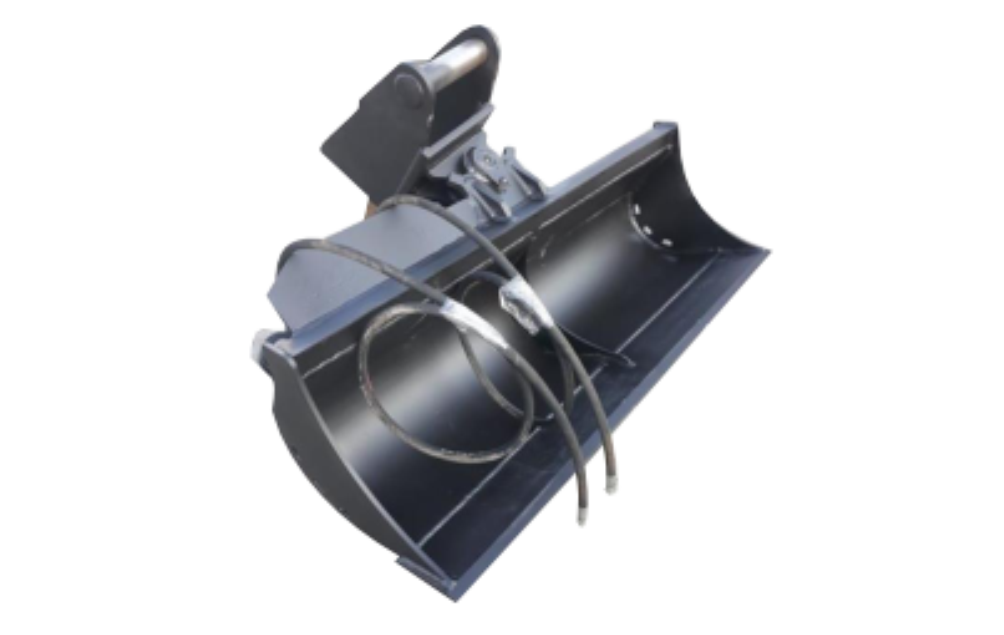

Hydraulic bucket 1200mm
Hydraulic bucket 800mm
Rake 1000mm
Ripper tooth
Wood grapple
Excavator
GG 6000
Crawler Excavator
The GG6000 excavator combines exceptional power, reliability, and advanced technology, offering a professional tool for the toughest construction tasks. Powered by a Yanmar 4TNV98C engine and outstanding hydraulics, it is ideal for companies demanding high-powered, precise equipment.
Engine and Power
Powered by a Yanmar 4TNV98C engine delivering 37.5 kW at 2200 rpm. The four-cylinder engine ensures excellent performance, reliability, and durability, capable of handling tough jobs under any conditions.
Hydraulic Performance
Operating pressure of 22 MPa and a main pump flow of 150 L/min provide exceptional hydraulic efficiency for fast and precise digging, loading, and other tasks. The 85 L hydraulic tank supports long work hours without frequent refills.
Tank Capacities and Work Autonomy
Large tanks enhance operational autonomy: a 115 L fuel tank for extended running time and an 85 L hydraulic tank for smooth, uninterrupted hydraulic operation during long shifts.
Dimensions and Mobility
Compact dimensions—5850 mm length, 1900 mm width, and 2580 mm height—ensure maneuverability in tight spaces while maintaining stability. With 400 mm track width and optimal chassis design, the GG6000 provides excellent traction and low ground pressure, suitable for diverse terrains.
Gallery
