Loaders
GG010Y
15 620 euro netto
Attention! Business customers with a VAT ID number pay net prices only, according to EU regulations.
Including: GG010Y Loader + Bucket + Pallet Forks + Quick Coupler
Check out the offer
Specification
Operating Weight:
2850 kg
Rated Load Capacity:
1000 kg
Bucket Capacity:
0.5 m³
Engine Brand:
Yunnei
Engine Model:
DEF20NJF4
Rated Power:
18.8 kW
Rated Speed:
2400 rpm
Number of Cylinders:
4
Steering System:
Fully hydraulic
System Pressure:
10 MPa
Tires:
10-16.5
Parking Brake:
Manually operated
Service Brake:
Four-wheel hydraulic brake
Working Range
Bucket Width:
1600 mm
Maximum Breakout Force:
28 kN
Drive Type:
Four-wheel drive
Minimum Turning Radius:
4600 mm
Dumping Height:
2560 mm
Track Width:
1285 mm
Wheelbase:
2170 mm
Dimensions
Overall Length (bucket on the ground):
4100 mm
Overall Height:
2530 mm
Overall Width:
1600 mm
4-in-1 bucket
1220 euro netto
Bale grab
1220 euro netto
Crocodile grab
1220 euro netto
Earth auger
1420 euro netto
Mower
1370 euro netto
Pallet forks
820 euro netto
Snow plow
1120 euro netto
Sweeper
1850 euro netto

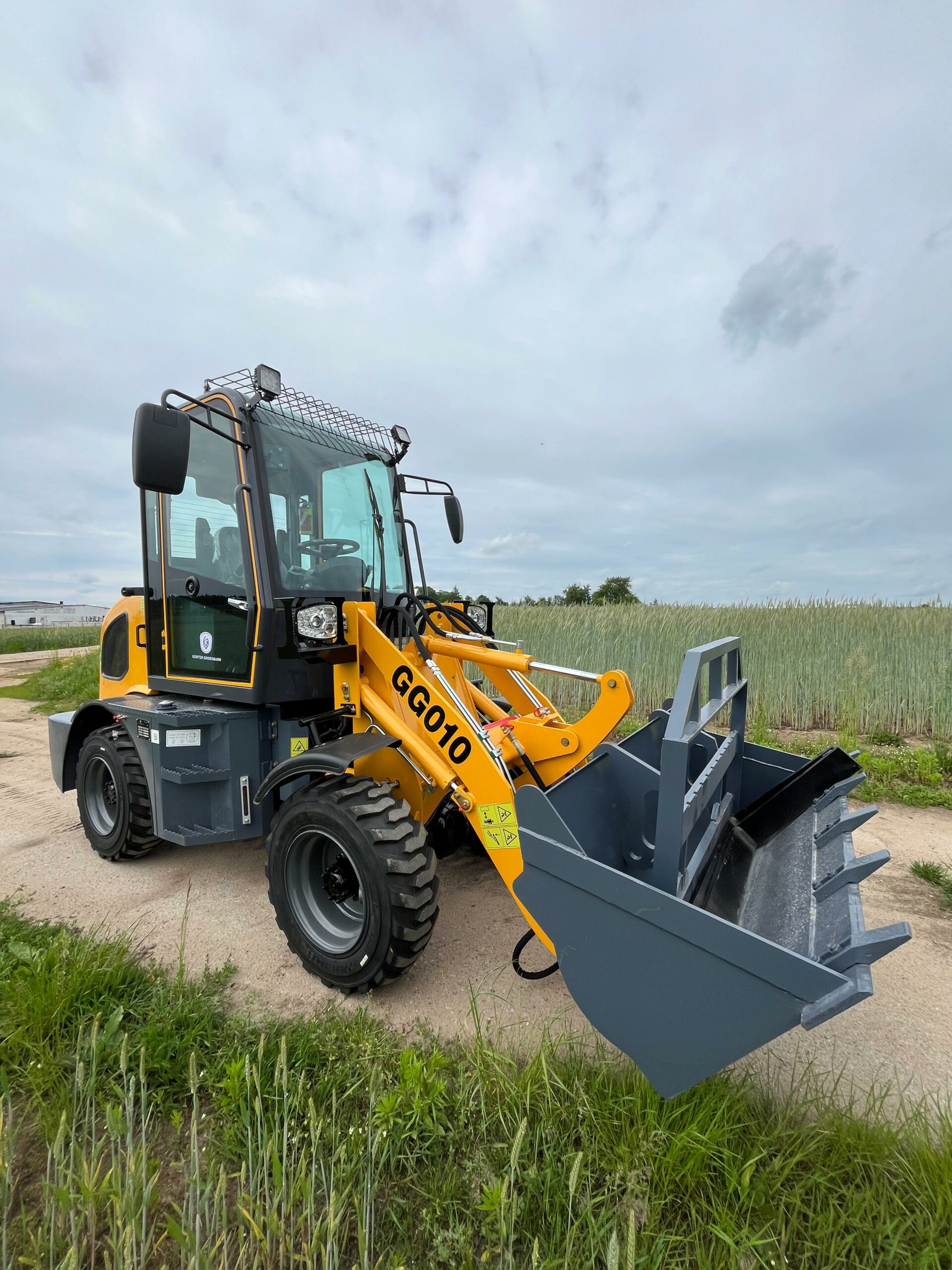

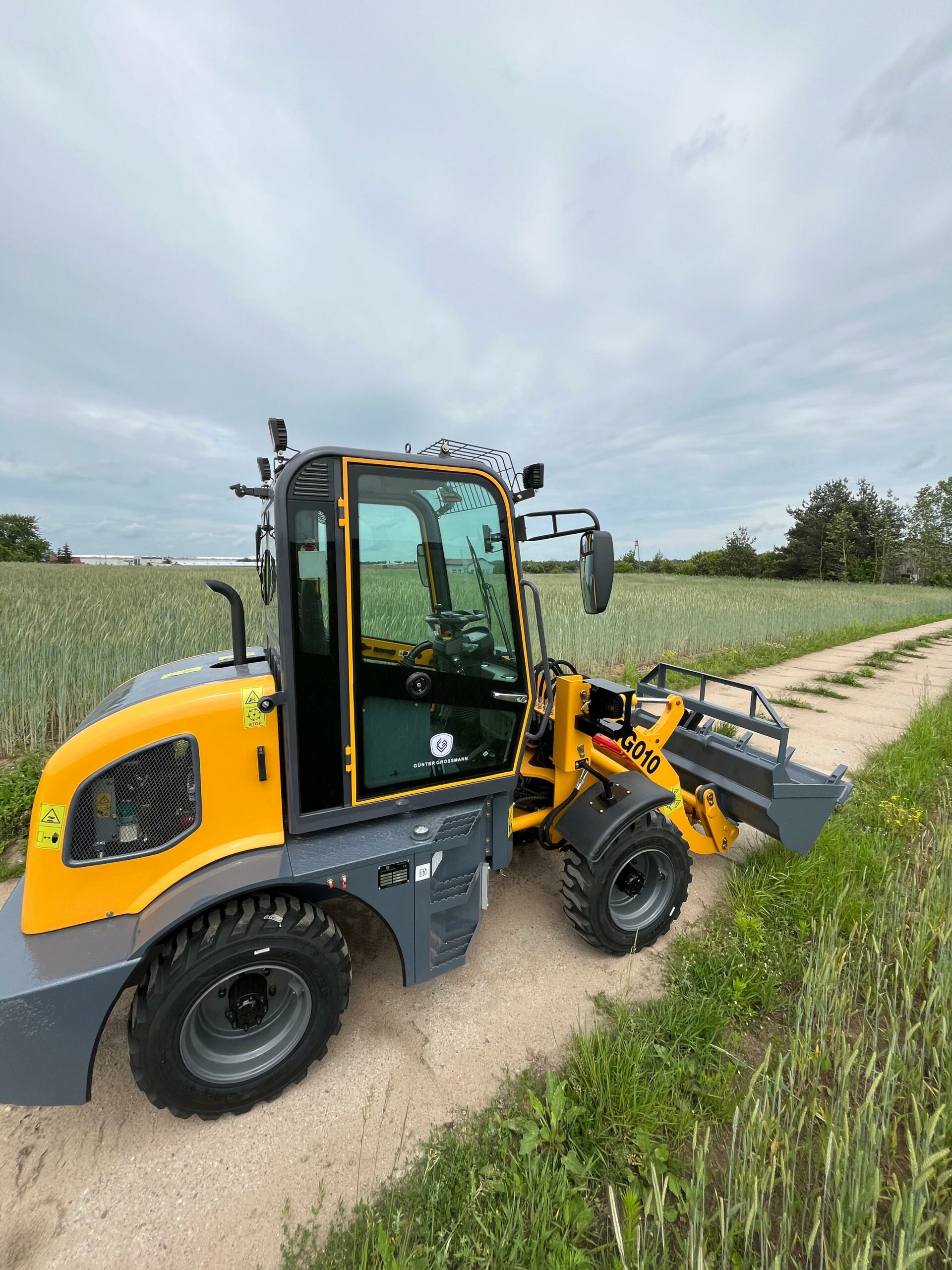

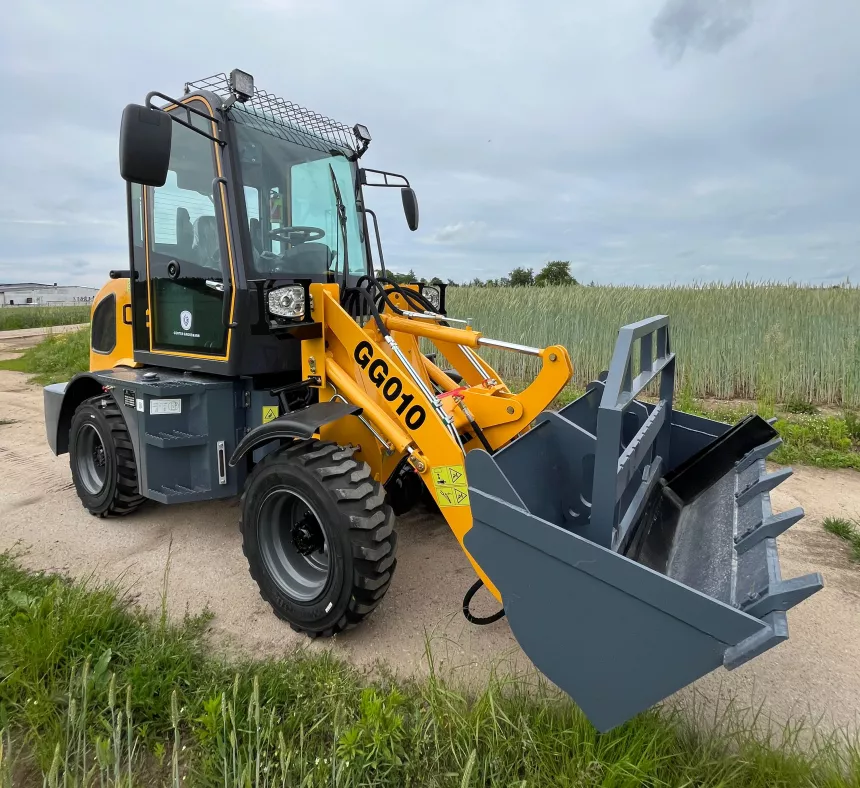

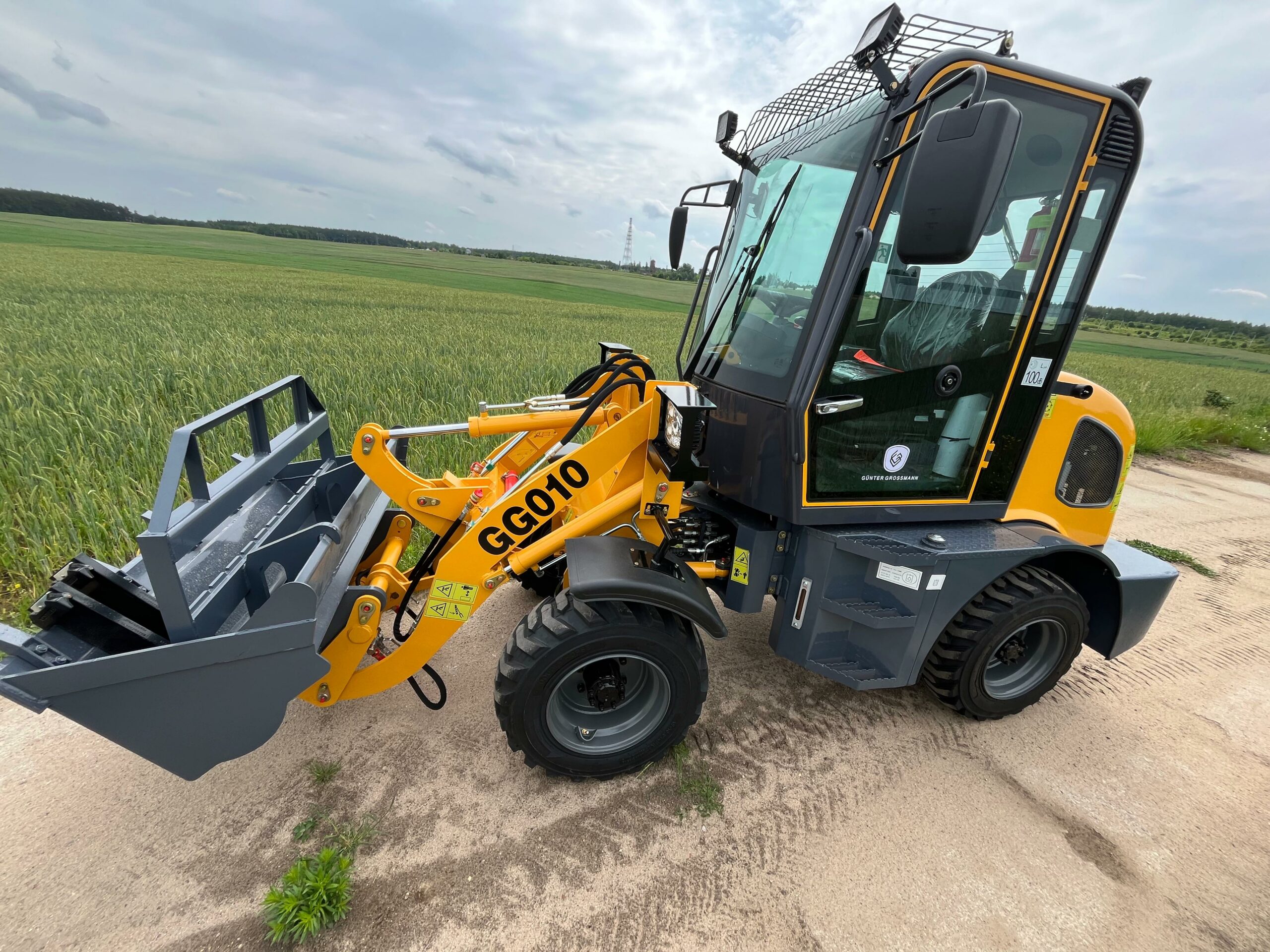

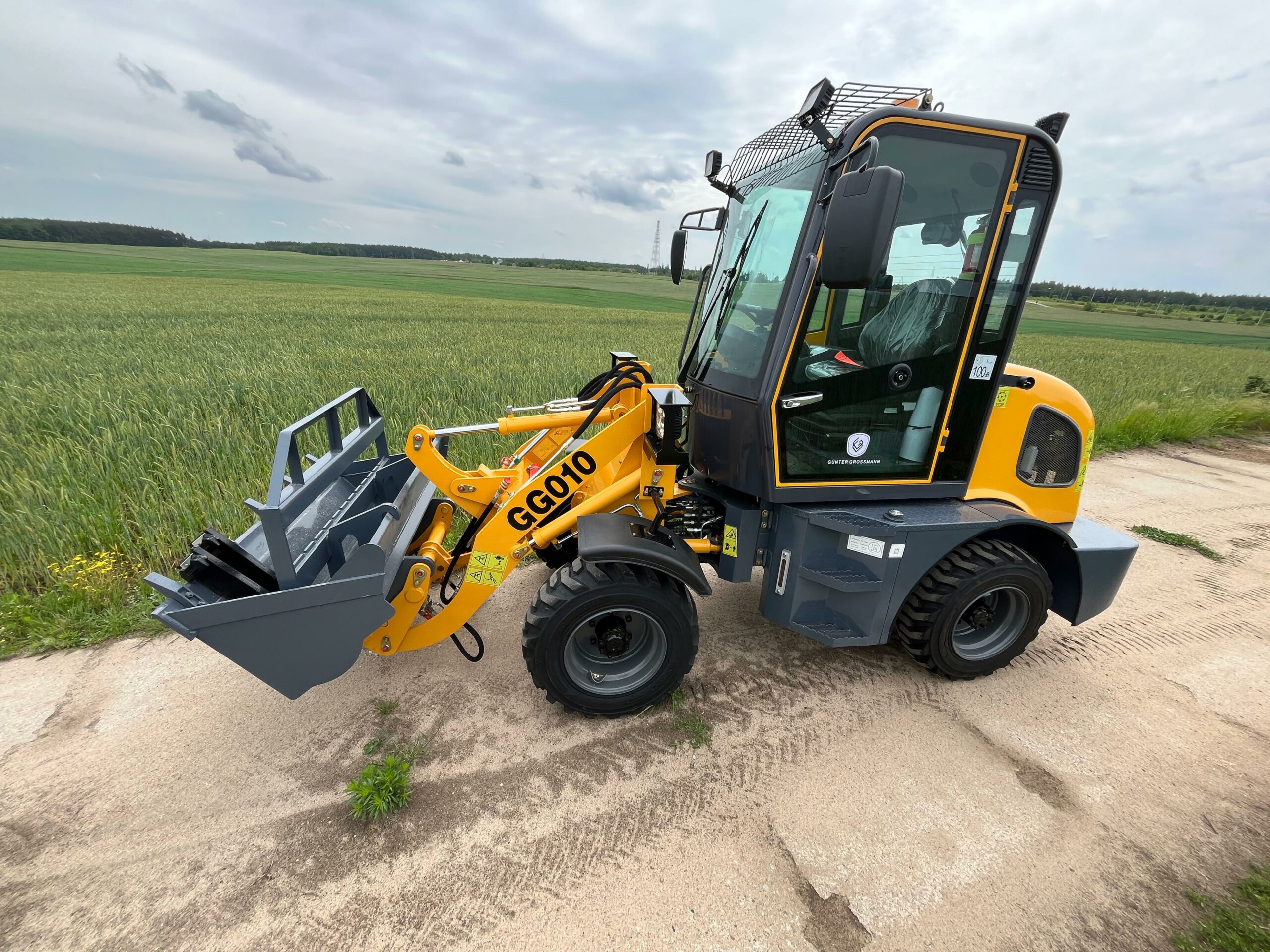

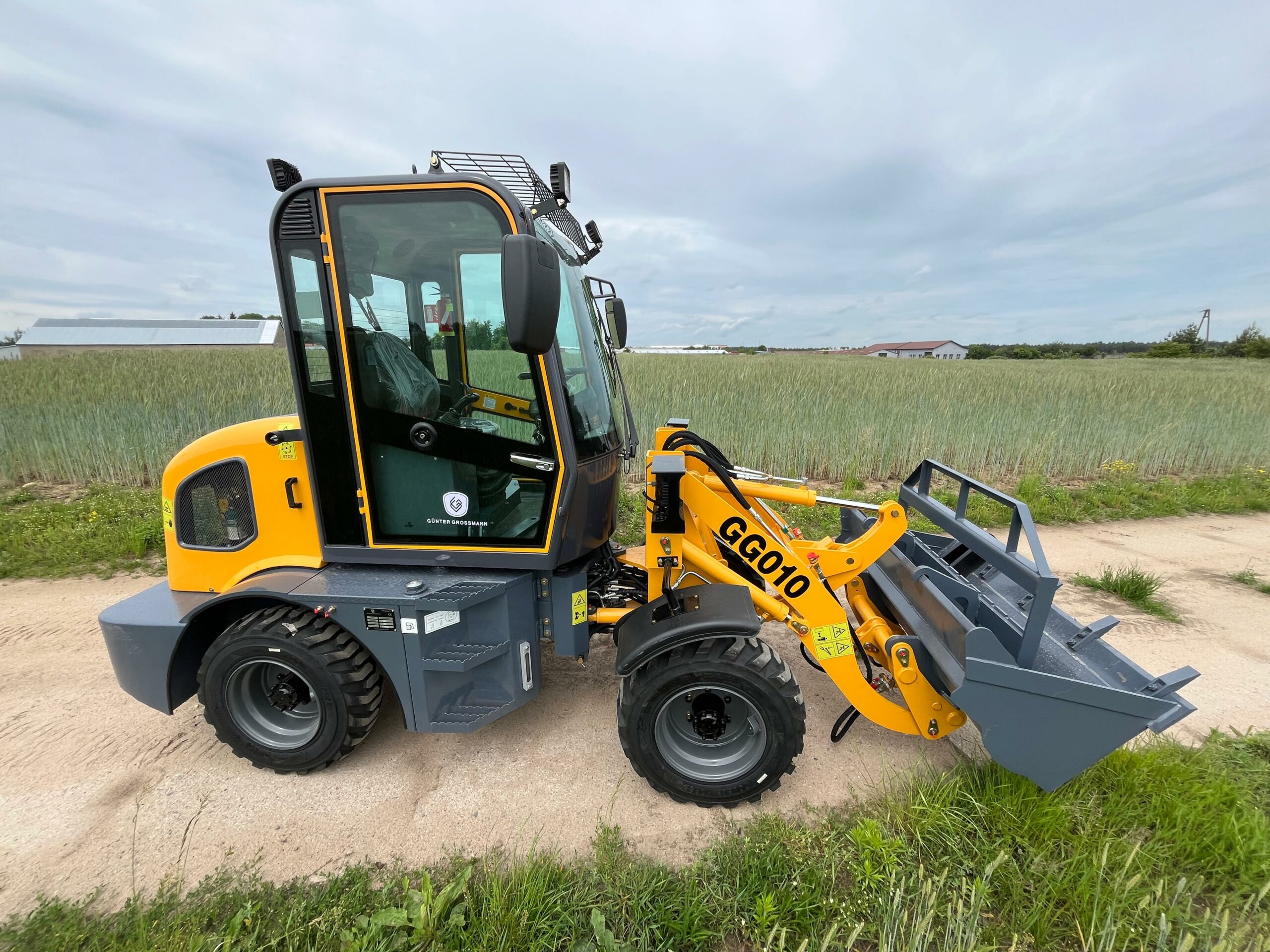

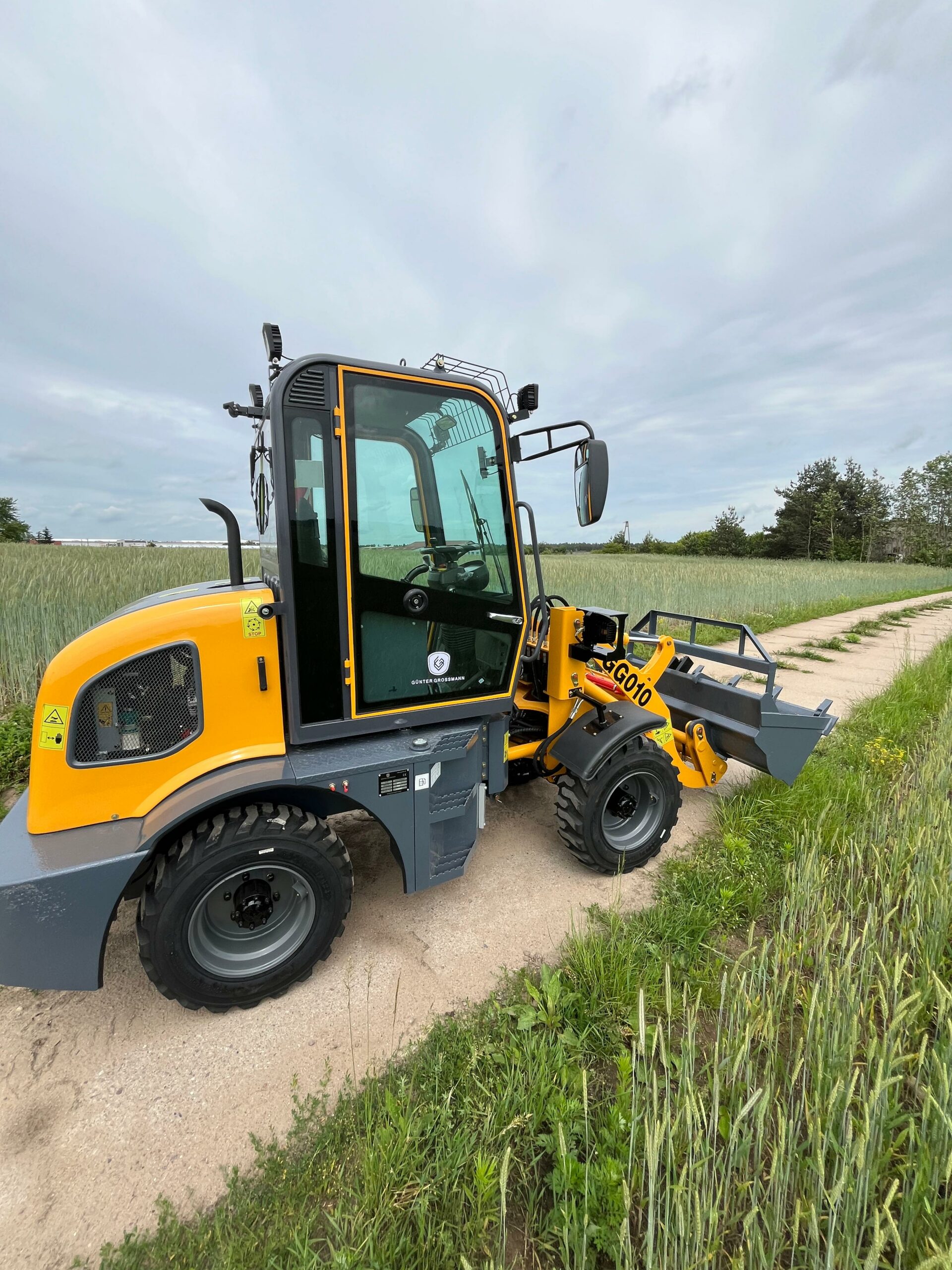

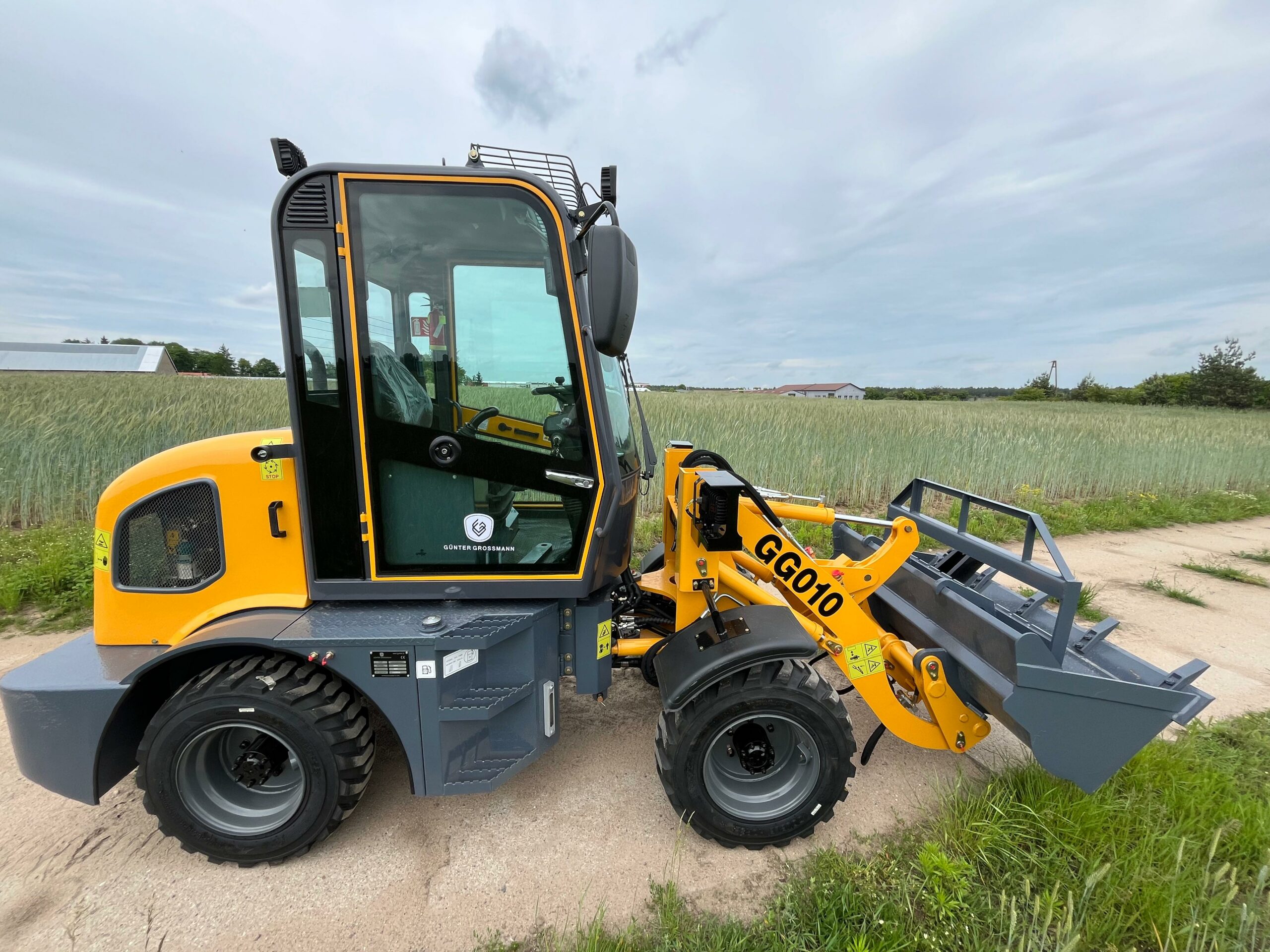

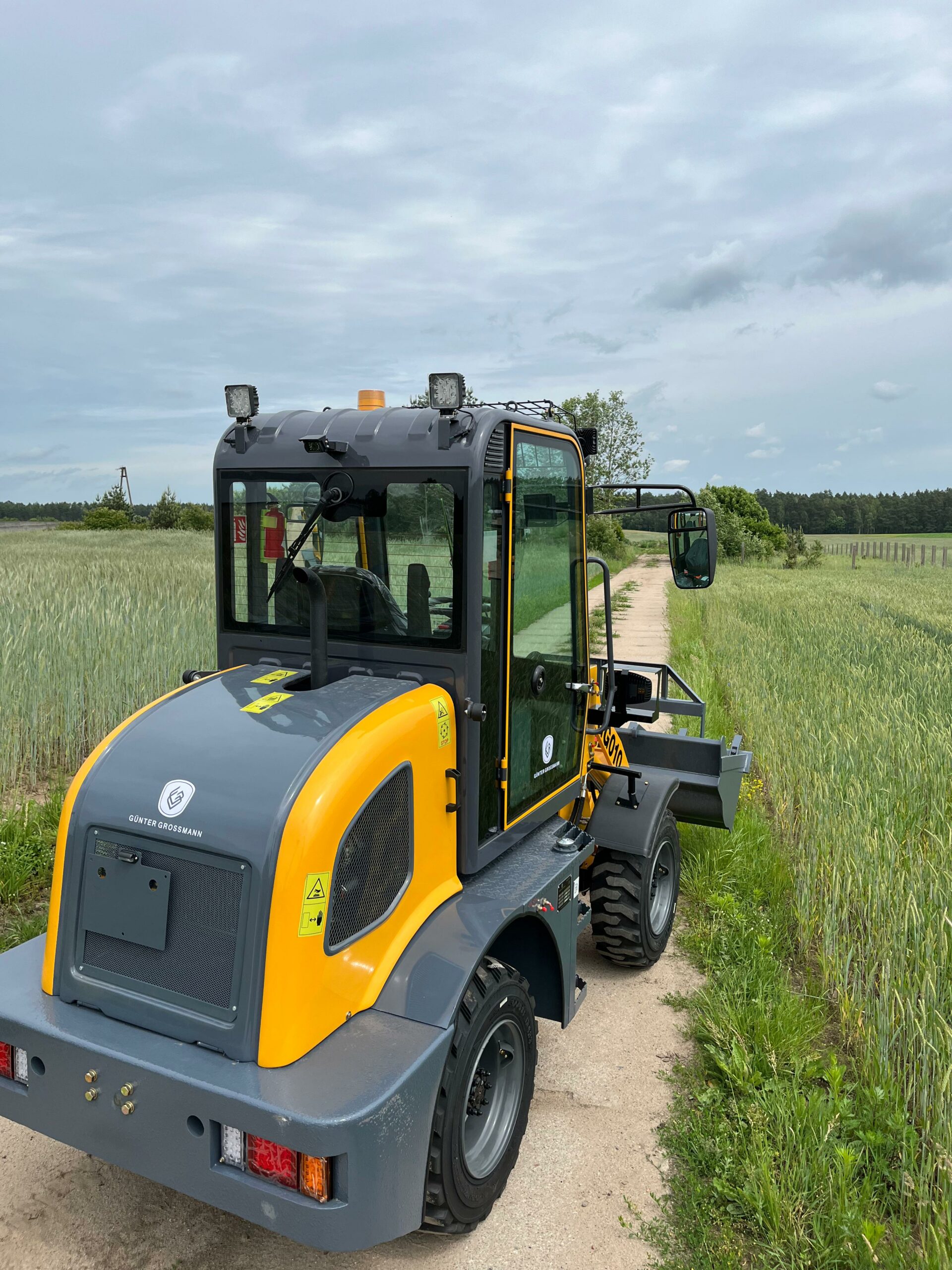

GG010Y Loader
Articulated Loader
Looking for a reliable and versatile machine for use on a farm, in a warehouse, or on a construction site? The GG010Y articulated loader is the perfect choice for those who value power, maneuverability, and robust construction in a compact form.
Performance You Can Rely On
With a rated load capacity of 1000 kg and a 0.5 m³ bucket, the GG010Y easily handles loading and transporting a wide range of materials. A maximum breakout force of 28 kN ensures efficient operation even in the toughest terrain.

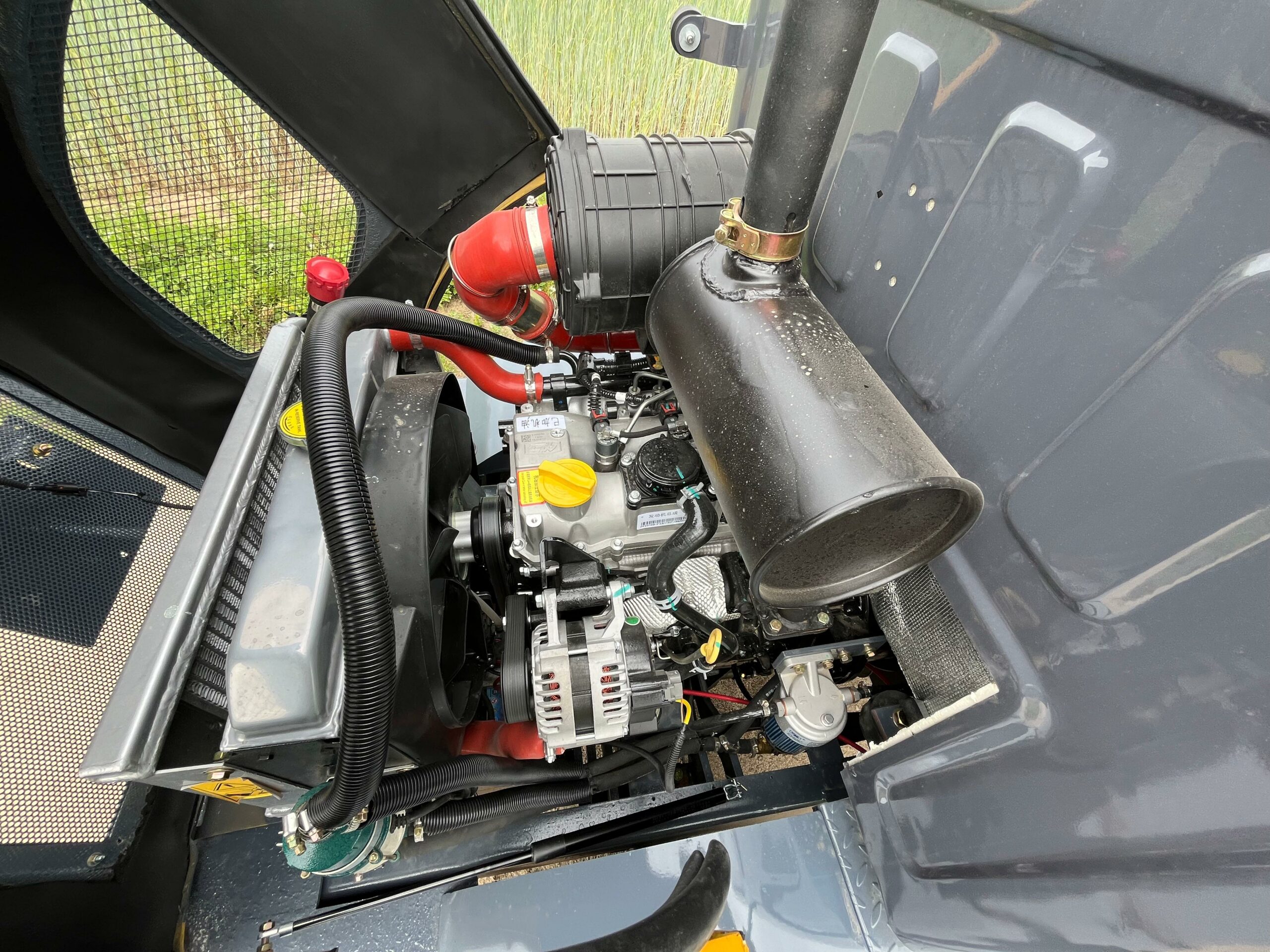

Reliable Yunnei Engine
Powered by the proven Yunnei DEF20NJF4 engine with 18.8 kW and four cylinders, operating at 2400 rpm, the GG010Y delivers consistent performance. The fully hydraulic steering system and four-wheel drive ensure smooth and confident handling in any environment.
Compact Size, Great Capability
With an overall length of 4100 mm, width of 1600 mm, and height of 2530 mm, the GG010Y is ideal for spaces with limited room. A minimum turning radius of 4600 mm allows for precise maneuvering even in tight areas.
Smart Design and Safety
The loader is equipped with a four-wheel hydraulic braking system and a manually operated parking brake for enhanced safety. Tires sized 10-16.5 provide stability and traction across various surfaces.
Gallery
